Wellbore #00 Wellbore Classification: GW Status: PA - 3/24/2015 Measured TD: 6200 ft. Vertical TD: 5983 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 3/24/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20031094 | Expiration Date: | 7/2/2004 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1793 FNL 2201 FEL | | Bottom Hole Location: | Sec:28 Twp: | Footage: 1710 FNL 2085 FEL | | Proposed Depth/Form: | 6600 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972X | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

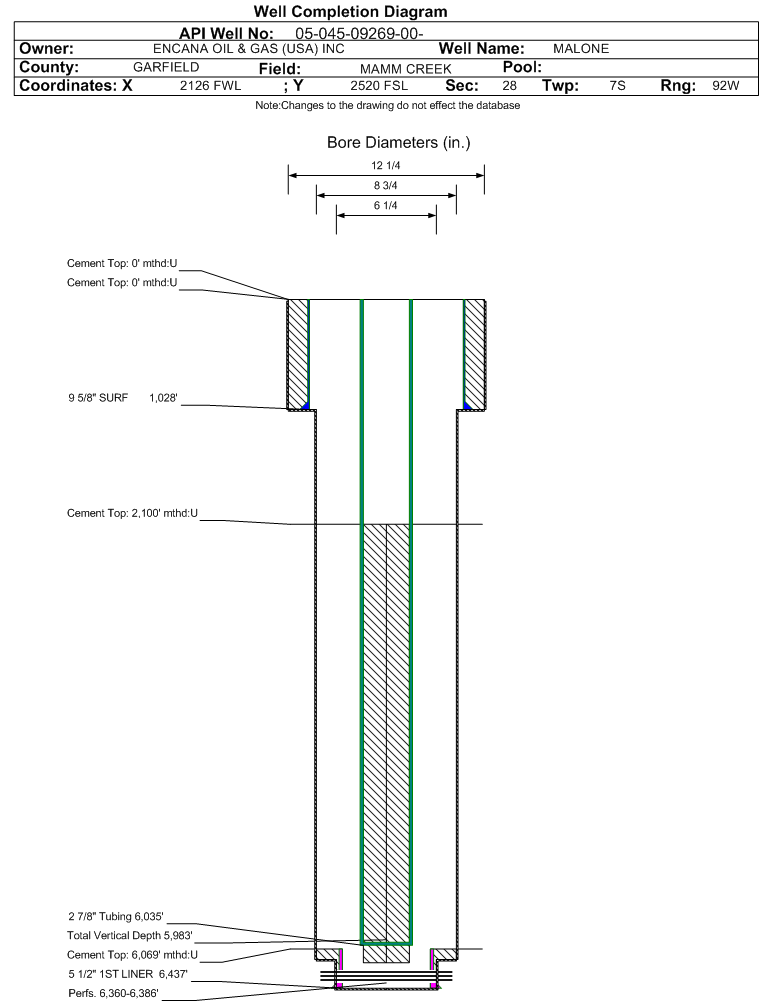

| Wellbore Completed | | Completion Date: | 6/5/2004 | | Spud Date: | 8/3/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 6200 ft. | Measured PB depth: | 6434 ft. | | True Vertical TD: | 5983 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 1793 FNL 2201 FEL | | Bottom Hole Location: | Sec:28 Twp: | Footage: 1710 FNL 2085 FEL | | Log Types: | DIL/SFL, CNL/FDC | | Log Types: | PEX, FMI | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1028 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 1028 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 6167 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 970, Top: 2100 ft., Bottom: 6197 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5148 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: | | Casing: | String Type: 1ST LINER, Hole Size: 6.25 in., Size: 5.5 in., Top: 6069 ft., Depth: 6437 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 115, Top: 6069 ft., Bottom: 6437 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3251 ft. | 6200 ft. | N | N |
Formation WMFK Formation Classification: GW Status: AB - 3/24/2015 Interval Top: 6360 ft. Interval Bottom: 6386 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/5/2004 | | Treatment Summary: | TREATED WITH 107141 GAL DELTA FRAC 200, 212800# 20/40 SAND |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 6035 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/19/2004 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1199 | | BBLS_OIL | 0 | | BTU_GAS | 1067 | | CALC_BBLS_H2O | 1199 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 0 | | CASING_PRESS | 340 | | MCF_GAS | 0 | | TUBING_PRESS | 250 |
| | Perforation Data: | | Interval Top: | 6360 ft. | # Of Holes: | 104 | | Interval Bottom: | 6386 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 03/24/2015 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
