Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2025 Measured TD: 9450 ft. Vertical TD: 9265 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20031029 | Expiration Date: | 6/25/2004 | | Proposed Top PZ Location: | Sec:21 Twp: | Footage: 640 FSL 1962 FWL | | Bottom Hole Location: | Sec:21 Twp: | Footage: 660 FSL 1980 FWL | | Proposed Depth/Form: | 10066 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972X | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

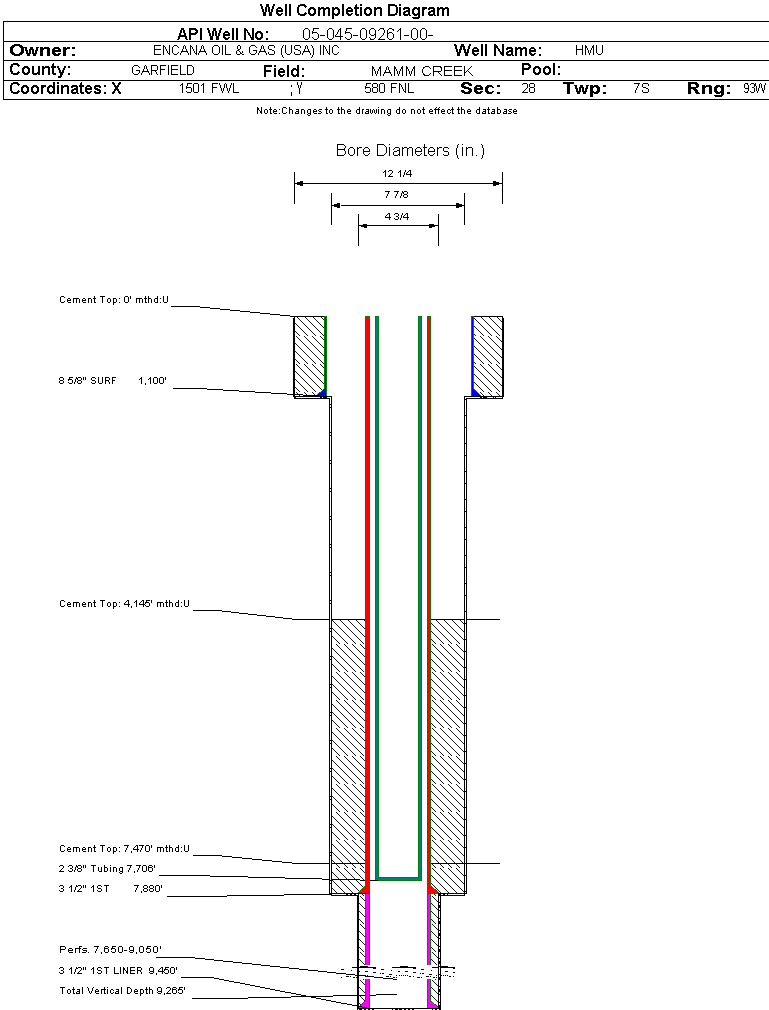

| Wellbore Completed | | Completion Date: | 2/8/2004 | | Spud Date: | 7/29/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 9450 ft. | Measured PB depth: | 9362 ft. | | True Vertical TD: | 9265 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:21 Twp: | Footage: 640 FSL 1962 FWL | | Bottom Hole Location: | Sec:21 Twp: | Footage: 660 FSL 1980 FWL | | Log Types: | CBL 10-7-03,RST 10-7-03, CBL 12-1-03, RST 12-2-03 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1100 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 590, Top: , Bottom: 1100 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 7880 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 606, Top: 4145 ft., Bottom: 7880 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 4.75 in., Size: 3.5 in., Top: 7470 ft., Depth: 9450 ft., Weight: 8.8 , Citings Type: ACTUAL | | Cement: | Sacks: 130, Top: 7470 ft., Bottom: 9450 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | | 6638 ft. | N | N | | WILLIAMS FORK | 6639 ft. | 9450 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 4/1/2025 Interval Top: 7650 ft. Interval Bottom: 9050 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/8/2004 | | Treatment Summary: | STAGE 1; 8,790-9050, 27-0.280" SHOTS, 871 BBLS OF SLICKWATER, 159140 LBS OF 20-40 SAND STAGE 2; 8,505-8,750,27-0.260" SHOTS, 1324 BBLS OF SLICKWATER, 114000 LBS OF 20-40 SAND STAGE 3; 8,157-8,402,30-0.260" SHOTS, 1191 BBLS OF SLICWATER, 138240 LBS OF |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7706 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/30/2004 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 24 | | BBLS_OIL | 8 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 24 | | CALC_BBLS_OIL | 8 | | CALC_GOR | 170250 | | CALC_MCF_GAS | 1362 | | CASING_PRESS | 400 | | MCF_GAS | 1362 |
| | Perforation Data: | | Interval Top: | 7650 ft. | # Of Holes: | 156 | | Interval Bottom: | 9050 ft. | Hole Size: | 0.26 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 32 |
| Total Gas Produced (MCF) | 7141 |
| GOR | 223156 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.448 |
| Average MCFE per Day | 19.985 |
| Federal Financial Assurance | i | Y |
|
|
