COGIS - WELL SCOUT CARD

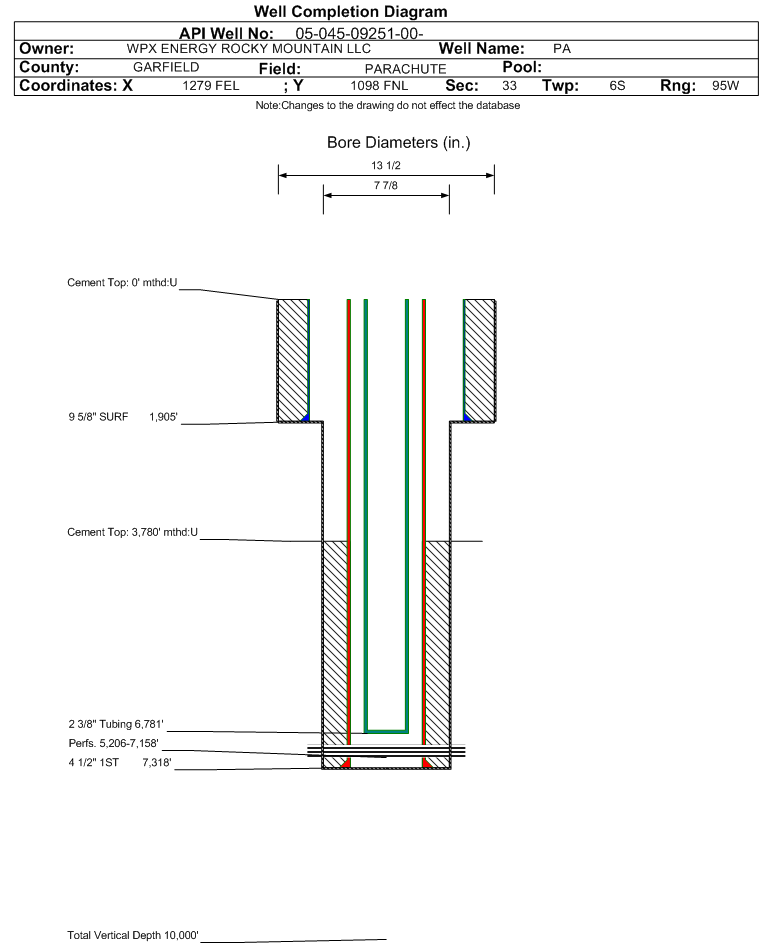

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09251		Well Classification: GW Status: PR - 10/6/2003
Well Name/No:PA #331-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/6/2003
FacilityID:268352LocationID:335285
County:GARFIELD #045Location:NENE 33 6S95W 6
Field:PARACHUTE - #67350Elevation:5410 ft.
Basin:PICEANCE BASIN
Planned Location:1098FNL  1279 FELLat/Long: 39.485239 / -107.998373Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.485307 / -107.998368Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/6/2003             Measured TD: 7328 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/6/2003
Wellbore PermitDIRECTIONAL
Permit #:20030895 Expiration Date:6/15/2004
Proposed Top PZ Location:Sec: Twp: Footage: 741 FNL  1502 FEL
Bottom Hole Location:Sec: Twp: Footage: 740 FNL  1498 FEL
Proposed Depth/Form:7350 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:9/9/2003
Spud Date:8/14/2003Spud Date Is:ACTUAL
Measured TD:7328 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 741 FNL  1502 FEL
Bottom Hole Location:Sec: Twp: Footage: 740 FNL  1498 FEL
Log Types:HIGH RES INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1905 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 730, Top: 0 ft., Bottom: 1905 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7318 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1100, Top: 3780 ft., Bottom: 7317 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION2040 ft.NN
MESAVERDE3880 ft.NN
CAMEO COAL6521 ft.NN
ROLLINS7228 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/6/2003                 Interval Top: 5206 ft.    Interval Bottom: 7158 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/9/2003
Treatment Summary:SEE OGCC COMMENTS
Tubing Size:2.375 in.Tubing Setting Depth:6781 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/6/2003Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1523
CASING_PRESS 1933
TUBING_PRESS 1793
Perforation Data:
Interval Top:5206 ft.# Of Holes:66
Interval Bottom:7158 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)7473
GOR679363
GOR DeterminationMCFE
Average BOE per Day3.553
Average MCFE per Day20.653

 Federal Financial Assurance  i

 Tribal Well  i No
