Wellbore #00 Wellbore Classification: GW Status: PR - 3/1/2016 Measured TD: 9470 ft. Vertical TD: 9250 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/1/2016 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20030906 | Expiration Date: | 6/11/2004 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1305 FSL 2697 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1310 FSL 1330 FEL | | Proposed Depth/Form: | 9250 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | 55279X | | Formation And Spacing: | Code: CZ-CR , Formation: COZZETTE-CORCORAN , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: FED. UNIT , Unit Acreage: , Drill Unit: |
| | |

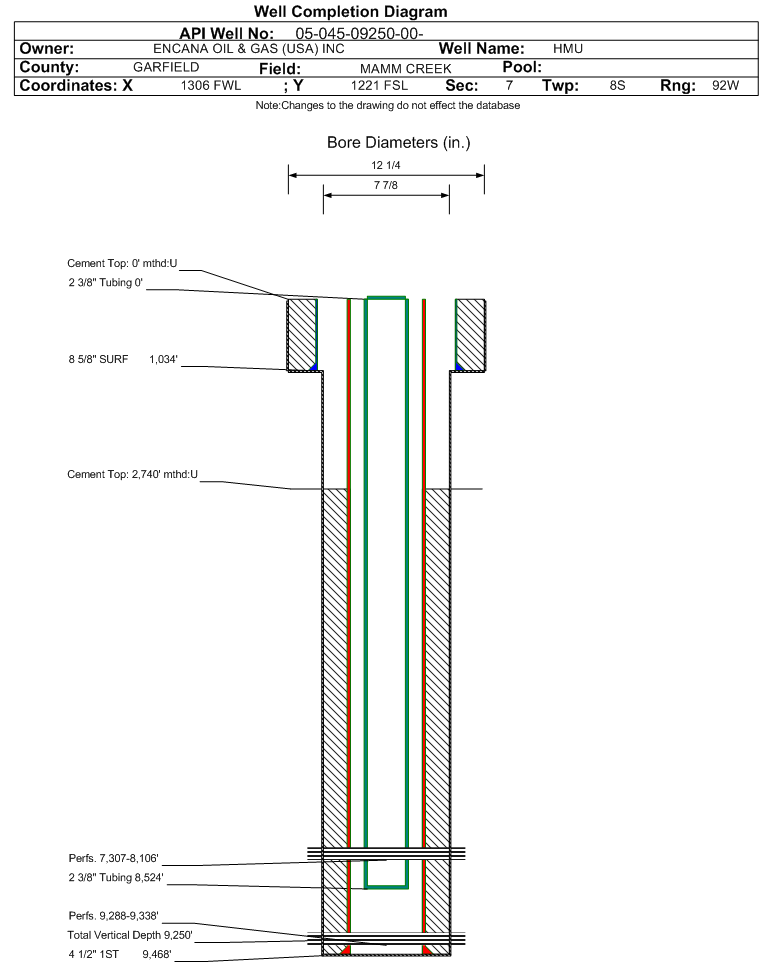

| Wellbore Completed | | Completion Date: | 11/15/2003 | | Spud Date: | 6/28/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 9470 ft. | Measured PB depth: | 9722 ft. | | True Vertical TD: | 9250 ft. | True Vertical PB depth: | 0 ft. | | Top PZ Location: | Sec: Twp: | Footage: 1305 FSL 2697 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1310 FSL 1330 FEL | | Log Types: | PEX, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1034 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 525, Top: 0 ft., Bottom: 1034 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9468 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1435, Top: 2740 ft., Bottom: 9468 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5757 ft. | N | N | | WILLIAMS FORK | 5758 ft. | 8502 ft. | N | N | | ROLLINS | 8503 ft. | 9050 ft. | N | N | | COZZETTE | 9051 ft. | 9237 ft. | N | N | | CORCORAN | 9238 ft. | 9470 ft. | N | N |
Formation CZ-CR Formation Classification: GW Status: CM - 11/5/2003 Interval Top: 9288 ft. Interval Bottom: 9338 ft.| Completed Information for Formation COZZETTE-CORCORAN | | 1st Production Date: | N/A | Choke Size: | 0.375 in. | | Formation Name: | COZZETTE-CORCORAN | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/15/2003 | | Treatment Summary: | STAGE 1: ACID BALLOUT, 9288-9338, 24-0.450" SHOTS, 1453 BBLS OF SLICKWATER, 40000# 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/5/2003 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 43 | | BBLS_OIL | 1 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 43 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 118 | | CALC_MCF_GAS | 118 | | CASING_PRESS | 250 | | MCF_GAS | 118 |
| | Perforation Data: | | Interval Top: | 9288 ft. | # Of Holes: | 24 | | Interval Bottom: | 9338 ft. | Hole Size: | |
|
Formation CRCRN Formation Classification: GW Status: PR - 3/1/2016 Interval Top: 9238 ft. Interval Bottom: 9338 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 11/5/2003 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | No Perforation Data was found for formation CRCRN. |
|
Formation COZZ Formation Classification: GW Status: SI - 6/11/2004 Interval Top: 9051 ft. Interval Bottom: 9338 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 11/5/2003 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | No Perforation Data was found for formation COZZ. |
|
Formation WMFK Formation Classification: GW Status: PR - 3/1/2016 Interval Top: 7307 ft. Interval Bottom: 8106 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/15/2003 | | Treatment Summary: | SEE OGCC COMMENTS |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8524 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/5/2003 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 437 | | BBLS_OIL | 1 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 437 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 1198 | | CALC_MCF_GAS | 1198 | | CASING_PRESS | 250 | | MCF_GAS | 1198 |
| | Perforation Data: | | Interval Top: | 7307 ft. | # Of Holes: | 96 | | Interval Bottom: | 8106 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 4675 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 2.206 |
| Average MCFE per Day | 12.813 |
| Federal Financial Assurance | i | Y |
|
|
