COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09243		Well Classification: GW Status: PR - 8/11/2003
Well Name/No:GIBSON GULCH UNIT #7-30 C
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/11/2003
FacilityID:268139LocationID:335294
County:GARFIELD #045Location:NESW 30 6S91W 6
Field:MAMM CREEK - #52500Elevation:5847 ft.
Basin:PICEANCE BASIN
Planned Location:2082FSL  2477 FWLLat/Long: 39.496901 / -107.597361Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.497010 / -107.597209Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/11/2003             Measured TD: 5795 ft.    Vertical TD: 5677 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/11/2003
Wellbore PermitDIRECTIONAL
Permit #:20030867 Expiration Date:5/26/2004
Proposed Top PZ Location:Sec: Twp: Footage: 2513 FNL  2630 FEL
Bottom Hole Location:Sec: Twp: Footage: 2513 FNL  2630 FEL
Proposed Depth/Form:5613 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH UN Unit Number:COC 54277X
Formation And Spacing:Code: UNK , Formation: UNKNOWN , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:N/A
Spud Date:7/10/2003Spud Date Is:ACTUAL
Measured TD:5795 ft.Measured PB depth:
True Vertical TD:5677 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2513 FNL  2630 FEL
Bottom Hole Location:Sec: Twp: Footage: 2513 FNL  2630 FEL
Log Types:DIL/SDL/DSN

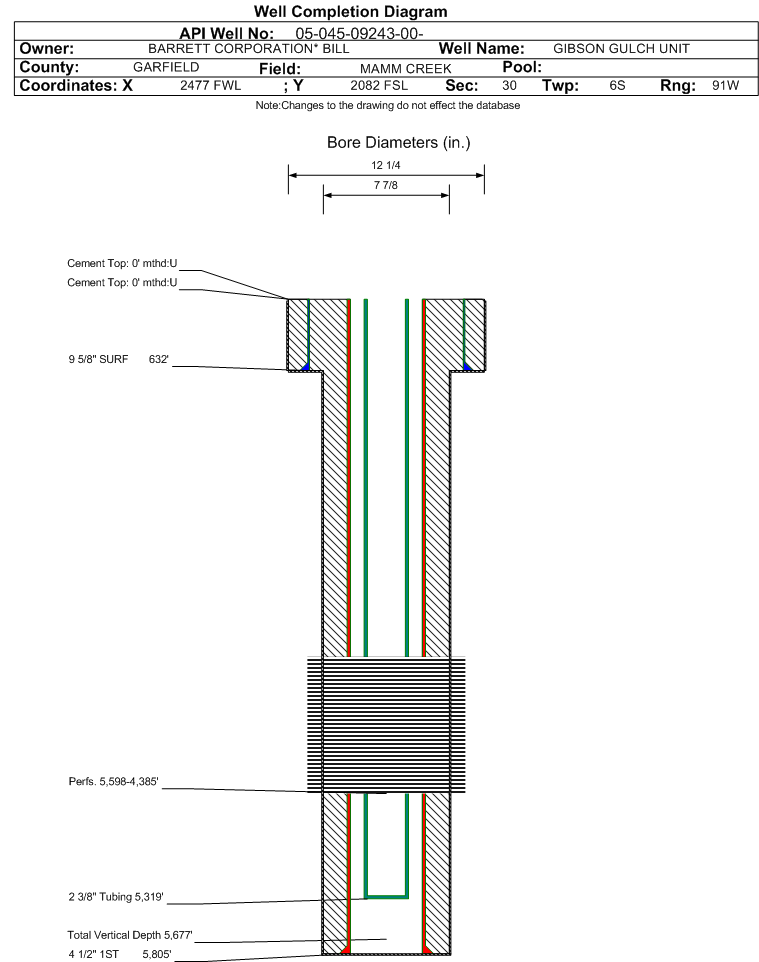

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 632 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: , Bottom: 632 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5805 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: , Bottom: 5805 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
OHIO CREEK3390 ft.NN
WILLIAMS FORK5795 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 8/11/2003                 Interval Top: 4385 ft.    Interval Bottom: 5598 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/11/2003
Treatment Summary:PLEASE SEE ATTACHED LIST
Tubing Size:2.375 in.Tubing Setting Depth:5319 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/11/2003Test Method:SALES TO PIPELI
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 28
BBLS_OIL 5
BTU_GAS 1190
CALC_BBLS_H2O 28
CALC_BBLS_OIL 5
CALC_GOR 80400
CALC_MCF_GAS 402
CASING_PRESS 617
GRAVITY_OIL 40
MCF_GAS 402
TUBING_PRESS 330
Perforation Data:
Interval Top:4385 ft.# Of Holes:39
Interval Bottom:5598 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)1849
GOR108764
GOR DeterminationMCFE
Average BOE per Day0.926
Average MCFE per Day5.342

 Federal Financial Assurance  i

 Tribal Well  i No
