COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09216		Well Classification: GW Status: PR - 8/1/2019
Well Name/No:DUNN #4-16B (P4E)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2019
FacilityID:267800LocationID:334855
County:GARFIELD #045Location:SWSW 4 7S92W 6
Field:MAMM CREEK - #52500Elevation:6084 ft.
Basin:PICEANCE BASIN
Planned Location:383FSL  419 FELLat/Long: 39.469601 / -107.663353Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.469650 / -107.663240Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2019             Measured TD: 5870 ft.    Vertical TD: 5718 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2019
Wellbore PermitDIRECTIONAL
Permit #:20030700 Expiration Date:5/6/2004
Proposed Top PZ Location:Sec:4 Twp: Footage: 665 FSL  1087 FEL
Bottom Hole Location:Sec:4 Twp: Footage: 720 FSL  1175 FEL
Proposed Depth/Form:6200 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC 55972X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:11/3/2003
Spud Date:8/9/2003Spud Date Is:ACTUAL
Measured TD:5870 ft.Measured PB depth:5770 ft.
True Vertical TD:5718 ft.True Vertical PB depth:0 ft.
Top PZ Location:Sec:4 Twp: Footage: 665 FSL  1087 FEL
Bottom Hole Location:Sec:4 Twp: Footage: 720 FSL  1175 FEL
Log Types:PEX, CB/GRCL/VDL

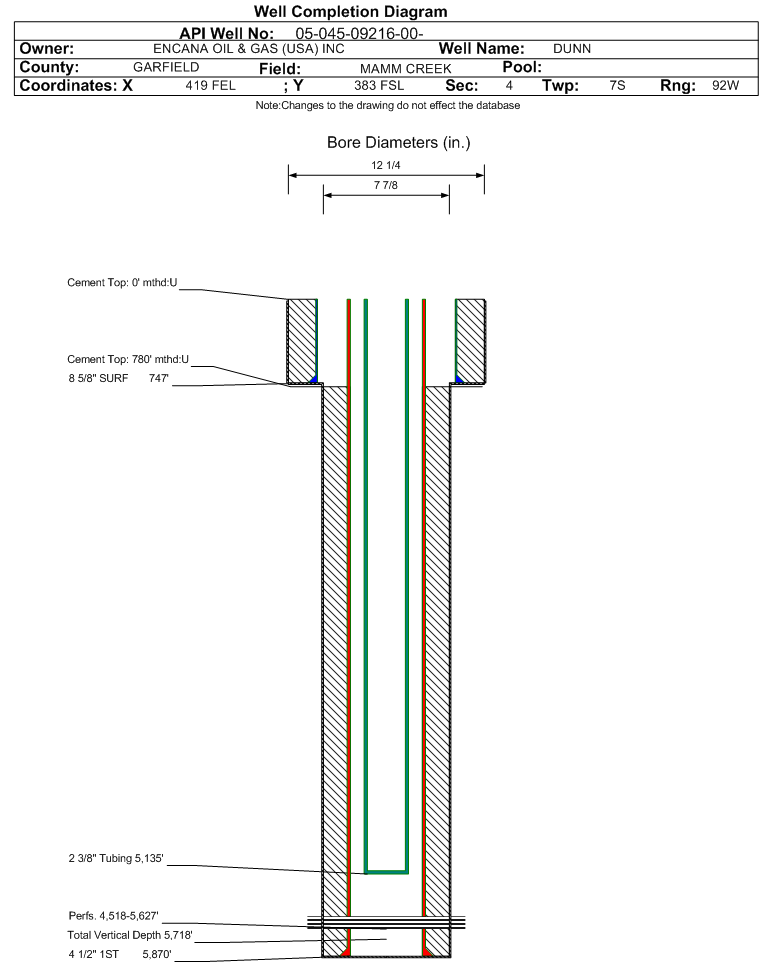

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 747 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 747 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5870 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1225, Top: 780 ft., Bottom: 5870 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3160 ft.NN
WILLIAMS FORK3161 ft.5870 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 8/1/2019                  Interval Top: 4518 ft.    Interval Bottom: 5627 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/3/2003
Treatment Summary:SEE OGCC COMMENTS
Tubing Size:2.375 in.Tubing Setting Depth:5135 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/5/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 0
CALC_BBLS_OIL 1
CALC_GOR 2863
CALC_MCF_GAS 2863
CASING_PRESS 850
MCF_GAS 2863
Perforation Data:
Interval Top:4518 ft.# Of Holes:74
Interval Bottom:5627 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)151
Total Gas Produced (MCF)19803
GOR131145
GOR DeterminationMCFE
Average BOE per Day9.772
Average MCFE per Day56.664

 Federal Financial Assurance  i Y

 Tribal Well  i No
