Wellbore #00 Wellbore Classification: GW Status: PR - 4/18/2003 Measured TD: 7326 ft. Vertical TD: 7308 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/18/2003 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 5/5/2004 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 249 FNL 331 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 250 FNL 330 FEL | | Proposed Depth/Form: | 7350 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-19 , Unit Acreage: 160, Drill Unit: NE/4 |
| | |

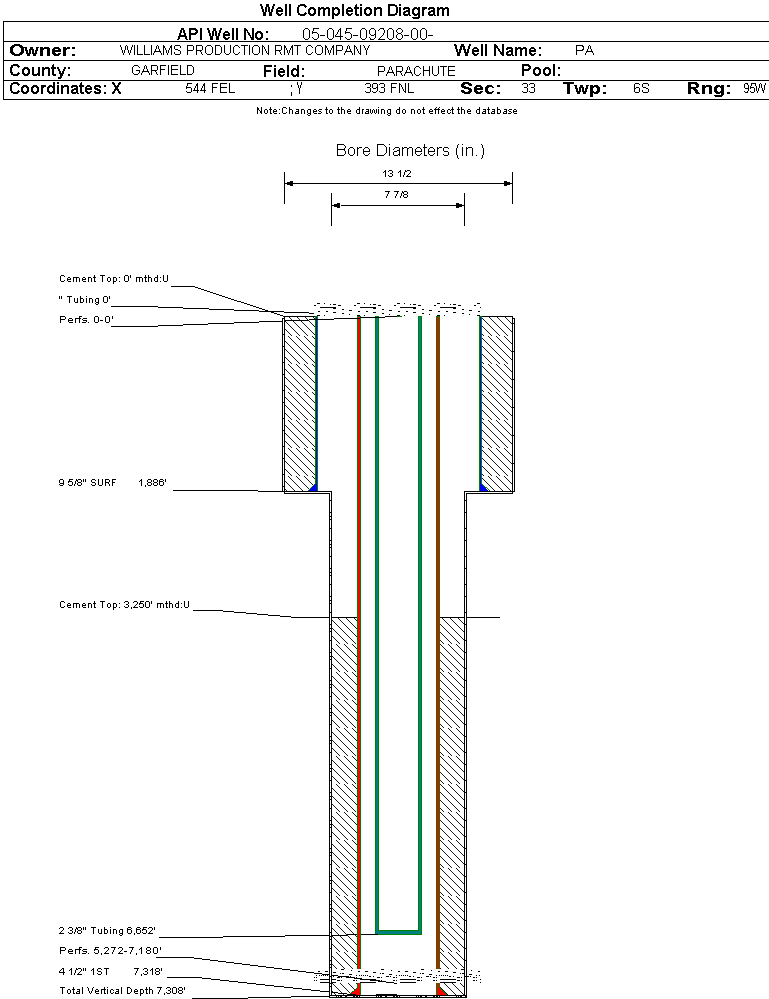

| Wellbore Completed | | Completion Date: | 10/1/2003 | | Spud Date: | 8/31/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 7326 ft. | Measured PB depth: | 7268 ft. | | True Vertical TD: | 7308 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 249 FNL 331 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 250 FNL 330 FEL | | Log Types: | DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1886 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 730, Top: , Bottom: 1886 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7318 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 980, Top: 3250 ft., Bottom: 7317 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FORT UNION | 2033 ft. | | N | N | | MESAVERDE | 3877 ft. | | N | N | | CAMEO | 6554 ft. | | N | N | | ROLLINS | 7255 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 11/16/2003 Interval Top: 5272 ft. Interval Bottom: 7180 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/1/2003 | | Treatment Summary: | 1000 GALS 7.5% HCL; 112,754# 20/40 SAND & 2972 BBLS SLICK WATER; 141,704# 20/40 SAND & 3262 BBLS SLICK WATER; 160,289# 20/40 SAND & 3683 BBLS SLICK WATER; 152,811# 20/40 SAND & 3477 BBLS SLICK WATER. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6652 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/16/2003 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| MCF_GAS | 983 |
| | Perforation Data: | | Interval Top: | 5272 ft. | # Of Holes: | 74 | | Interval Bottom: | 7180 ft. | Hole Size: | 0.43 in. |
|
Formation WMFK Formation Classification: GW Status: CM - 4/18/2003| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/1/2003 | | Treatment Summary: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | Perforation Data: | | Interval Top: | | # Of Holes: | | | Interval Bottom: | | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 13 |
| Total Gas Produced (MCF) | 11455 |
| GOR | 881153 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.444 |
| Average MCFE per Day | 31.599 |
| Federal Financial Assurance | i | |
|
|
