COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09201		Well Classification: GW Status: PA - 6/29/2020
Well Name/No:DUNN #9-3A (N4E)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/29/2020
FacilityID:267579LocationID:334867
County:GARFIELD #045Location:SENW 4 7S92W 6
Field:MAMM CREEK - #52500Elevation:6009 ft.
Basin:PICEANCE BASIN
Planned Location:806FSL  2252 FWLLat/Long: 39.470601 / -107.672713Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.470680 / -107.672580Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 6/29/2020             Measured TD: 6720 ft.    Vertical TD: 6527 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 6/29/2020
Wellbore PermitDIRECTIONAL
Permit #:20030645 Expiration Date:4/24/2004
Proposed Top PZ Location:Sec:4 Twp: 7S 92W Footage: 139 FNL  2482 FWL
Bottom Hole Location:Sec:4 Twp: 7S 92W Footage: 150 FNL  2500 FWL
Proposed Depth/Form:7000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC 55972X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:1/11/2004
Spud Date:6/26/2003Spud Date Is:ACTUAL
Measured TD:6720 ft.Measured PB depth:6443 ft.
True Vertical TD:6527 ft.True Vertical PB depth:0 ft.
Top PZ Location:Sec:4 Twp: 7S 92WFootage: 139 FNL  2482 FWL
Bottom Hole Location:Sec:4 Twp: 7S 92WFootage: 150 FNL  2500 FWL
Log Types:PEX, CBL/VD/GR/CCL

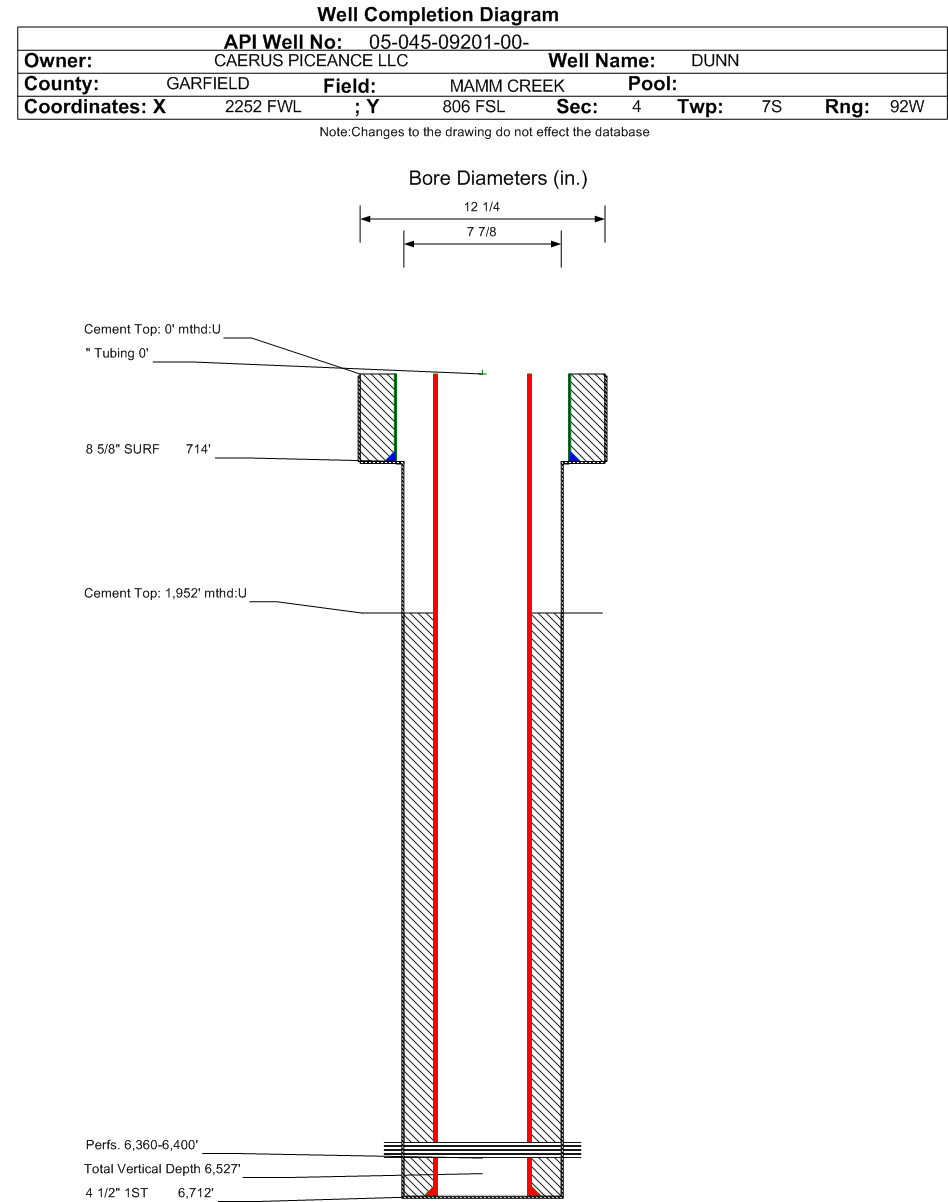

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 714 ft., Weight: 24# , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 736 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6712 ft., Weight: 11.6# , Citings Type: ACTUAL
Cement:Sacks: 1435, Top: 1952 ft., Bottom: 6712 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3173 ft.NN
WILLIAMS FORK3174 ft.6427 ft.NN
ROLLINS6428 ft.6720 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  AB - 2/12/2013                 Interval Top: 6360 ft.    Interval Bottom: 6400 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:10/14/2003Choke Size:
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Type:
Treatment Date:1/21/2013Treatment End Date:1/21/2013
Treatment Summary:CBP SET @ 6275', TESTED TO 500 PSI, TOPPED WITH 2 SX CEMENT
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Formation Treatment
Treatment Date:1/11/2004
Treatment Summary:STAGE 1: 6360-6400 160-0.410" SHOTS 3151 BBLS OF SLICKWATER, 325000LBS OF 20/40 SAND. STAGE 1-A: 0-0, 346 BBLS OF SLICKWATER, 25000 LBS OF 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1632
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 1632
CALC_BBLS_OIL 1
CALC_GOR 2863
CALC_MCF_GAS 2863
CASING_PRESS 850
MCF_GAS 2863
Perforation Data:
Interval Top:6360 ft.# Of Holes:160
Interval Bottom:6400 ft.Hole Size:0.41 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/29/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
