COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09199		Well Classification: GW Status: PR - 5/8/2009
Well Name/No:GMR #33-7D (P33NEB)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/8/2009
FacilityID:267446LocationID:334671
County:GARFIELD #045Location:SESE 33 6S93W 6
Field:MAMM CREEK - #52500Elevation:6753 ft.
Basin:PICEANCE BASIN
Planned Location:1150FSL  1073 FELLat/Long: 39.478510 / -107.774436Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.478670 / -107.774510Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

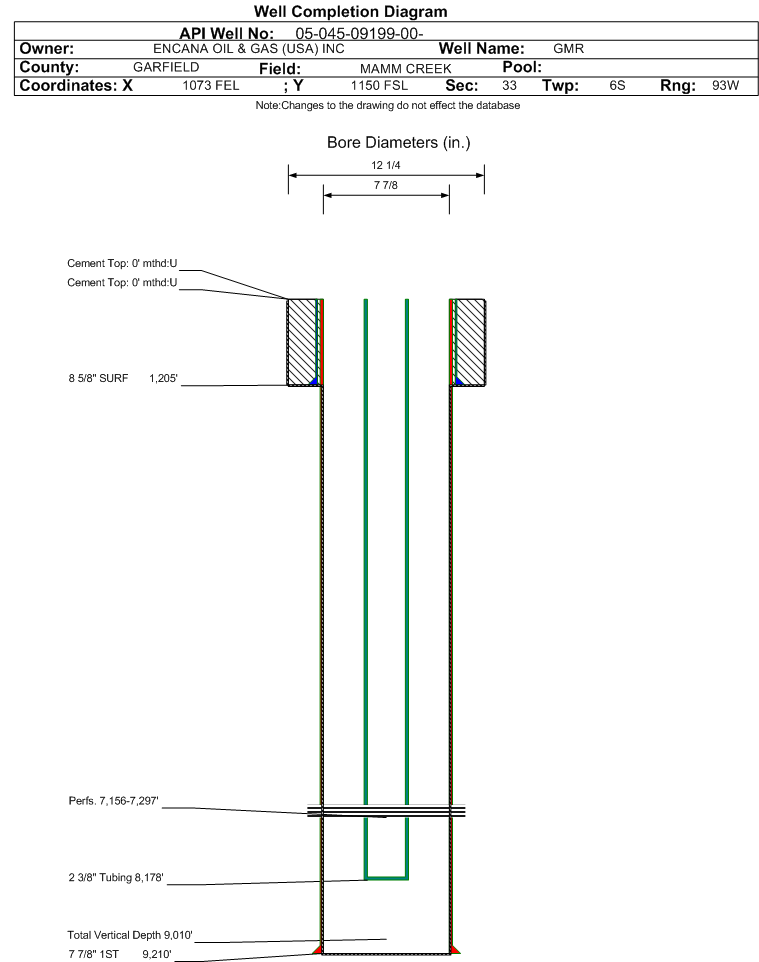

Wellbore #00             Wellbore Classification: GW             Status: PR - 5/8/2009             Measured TD: 9224 ft.    Vertical TD: 9010 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/8/2009
Wellbore PermitDIRECTIONAL
Permit #:20030492 Expiration Date:4/20/2004
Proposed Top PZ Location:Sec: Twp: Footage: 2460 FSL  1317 FEL
Bottom Hole Location:Sec: Twp: Footage: 2650 FSL  1330 FEL
Proposed Depth/Form:9700 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC 56608X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/27/2003
Spud Date:6/19/2003Spud Date Is:ACTUAL
Measured TD:9224 ft.Measured PB depth:9142 ft.
True Vertical TD:9010 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2460 FSL  1317 FEL
Bottom Hole Location:Sec: Twp: Footage: 2650 FSL  1330 FEL
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1205 ft., Weight: 26 , Citings Type: ACTUAL
Cement:Sacks: 625, Top: , Bottom: 1207 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 7.875 in., Top: , Depth: 9210 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1375, Top: , Bottom: 9224 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.6109 ft.NN
WILLIAMS FORK6110 ft.9224 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 5/8/2009                  Interval Top: 7156 ft.    Interval Bottom: 7297 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:3/12/2009Choke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/9/2009
Treatment Summary:STAGE 05 TREATED W/ A TOTAL OF: 9,759 BBLS SLICKWATER & 220,800# 20/40 SAND. FLOW TEST IS FOR ALL PERFS, INCLUDING NEW ONES, IN WMFK FORMATION.
Tubing Size:2.375 in.Tubing Setting Depth:8178 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/8/2009Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 26
BTU_GAS 1170
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 67423
CALC_MCF_GAS 297
CASING_PRESS 772
GRAVITY_OIL 55
MCF_GAS 297
TUBING_PRESS 375
Perforation Data:
Interval Top:7156 ft.# Of Holes:27
Interval Bottom:7297 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)50
Total Gas Produced (MCF)10471
GOR209420
GOR DeterminationMCFE
Average BOE per Day5.080
Average MCFE per Day29.472

 Federal Financial Assurance  i Y

 Tribal Well  i No
