COGIS - WELL SCOUT CARD

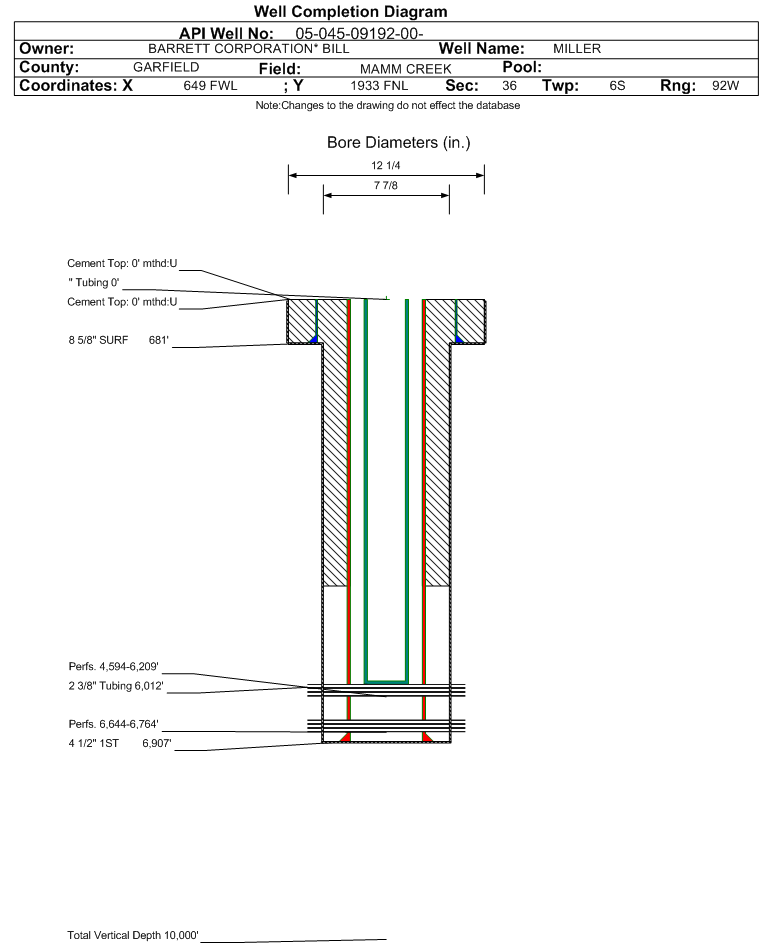

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09192		Well Classification: GW Status: PR - 8/1/2022
Well Name/No:MILLER #5-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2022
FacilityID:267006LocationID:334962
County:GARFIELD #045Location:SWNW 36 6S92W 6
Field:MAMM CREEK - #52500Elevation:5896 ft.
Basin:PICEANCE BASIN
Planned Location:1933FNL  649 FWLLat/Long: 39.485821 / -107.622252Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.485815 / -107.622242Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2022             Measured TD: 6907 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2022
Wellbore Permit
Permit #:Expiration Date:4/6/2004
Proposed Depth/Form:6800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RL-WF , Formation: ROLLINS-WILLIAMS FORK , Order: 191-5 , Unit Acreage: 40, Drill Unit: SEC.36
Wellbore Completed
Completion Date:5/4/2003
Spud Date:4/17/2003Spud Date Is:ACTUAL
Measured TD:6907 ft.Measured PB depth:6862 ft.
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION, DENSITY & SONIC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 681 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: , Bottom: 681 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6907 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1740, Top: , Bottom: 4480 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH3031 ft.NN
OHIO CREEK3031 ft.3524 ft.NN
UNKNOWN3524 ft.6429 ft.NN
CAMEO6429 ft.6663 ft.NN
ROLLINS6663 ft.6907 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  SI - 11/1/2025                 Interval Top: 6644 ft.    Interval Bottom: 6764 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:ROLLINSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/4/2003
Treatment Summary:6644'-6660' ACIDIZED W/100 GAL 7-1/2% HCL / 6756'-6764' FRAC'D W/59,505 # SAND PLUS 789 BW
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/16/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 12
BBLS_OIL 0
CASING_PRESS 200
MCF_GAS 120
TUBING_PRESS 30
Perforation Data:
Interval Top:6644 ft.# Of Holes:64
Interval Bottom:6764 ft.Hole Size:

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 8/1/2022                  Interval Top: 4594 ft.    Interval Bottom: 6209 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.281 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/4/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6012 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/25/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 30
BBLS_OIL 9
BTU_GAS 1185
CALC_BBLS_H2O 30
CALC_BBLS_OIL 10
CALC_GOR 44000
CALC_MCF_GAS 440
CASING_PRESS 760
GRAVITY_OIL 40
MCF_GAS 440
TUBING_PRESS 440
Perforation Data:
Interval Top:4594 ft.# Of Holes:57
Interval Bottom:6209 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)9
Total Gas Produced (MCF)1335
GOR148333
GOR DeterminationMCFE
Average BOE per Day0.652
Average MCFE per Day3.807

 Federal Financial Assurance  i

 Tribal Well  i No
