Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2021 Measured TD: 9595 ft. Vertical TD: 9379 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20040186 | Expiration Date: | 2/1/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1961 FSL 1987 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1990 FSL 1990 FEL | | Proposed Depth/Form: | 10500 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC 55608X | | Formation And Spacing: | Code: CZ-CR , Formation: COZZETTE-CORCORAN , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1050 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 722, Top: 0 ft., Bottom: 1050 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 10500 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1830, Top: 1500 ft., Bottom: 10500 ft. |
| | |

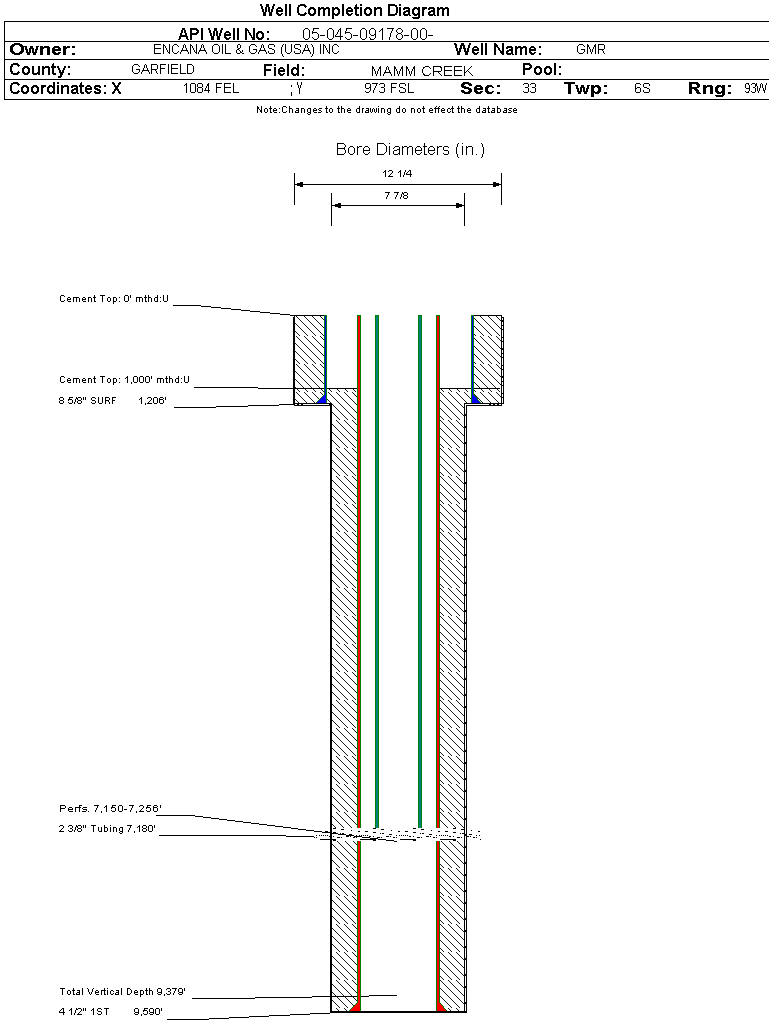

| Wellbore Completed | | Completion Date: | 10/28/2003 | | Spud Date: | 8/7/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 9595 ft. | Measured PB depth: | 9492 ft. | | True Vertical TD: | 9379 ft. | True Vertical PB depth: | 0 ft. | | Top PZ Location: | Sec: Twp: | Footage: 1317 FSL 1328 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1990 FSL 1990 FEL | | Log Types: | RSL, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1206 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 625, Top: 0 ft., Bottom: 1206 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9590 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1466, Top: 1000 ft., Bottom: 9595 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 6074 ft. | N | N | | WILLIAMS FORK | 6075 ft. | 9253 ft. | N | N | | ROLLINS | 9254 ft. | 9595 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 6/1/2021 Interval Top: 7150 ft. Interval Bottom: 7256 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 6/24/2005 | Choke Size: | 18.000 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/16/2005 | | Treatment Summary: | STAGE 7 - 2,600 BBLS SLICKWATER; 101,352 LBS 20/40 SAND. THESE ARE NEW PERFS IN WMFK; THE OLD PERFS WERE ABANDONED BECAUSE THEY WERE UNECONOMIC. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7180 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/25/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 297 | | BBLS_OIL | 9 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 297 | | CALC_BBLS_OIL | 9 | | CALC_GOR | 109302 | | CALC_MCF_GAS | 940 | | CASING_PRESS | 530 | | MCF_GAS | 940 | | TUBING_PRESS | 0 |
| | Perforation Data: | | Interval Top: | 7150 ft. | # Of Holes: | 20 | | Interval Bottom: | 7256 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 97 |
| Total Gas Produced (MCF) | 21358 |
| GOR | 220185 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.351 |
| Average MCFE per Day | 60.026 |
| Federal Financial Assurance | i | Y |
|
|
