Wellbore #00 Wellbore Classification: GW Status: PA - 10/27/2014 Measured TD: 5520 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 10/27/2014 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20030428 | Expiration Date: | 3/23/2004 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1404 FNL 1790 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1662 FNL 2044 FWL | | Proposed Depth/Form: | 6605 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55279X | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

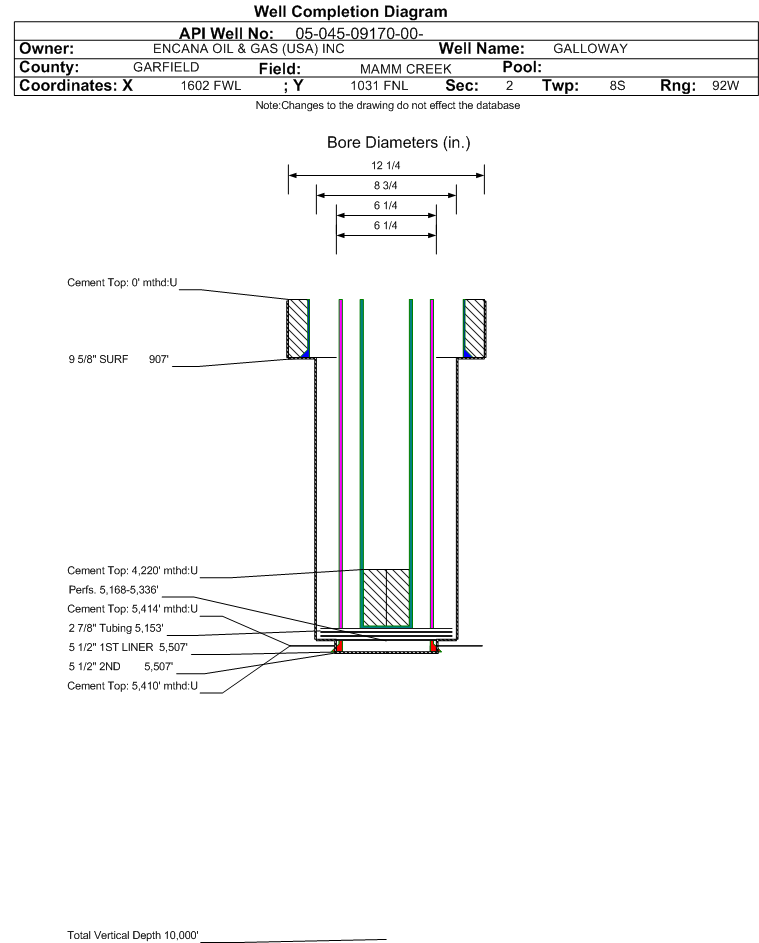

| Wellbore Completed | | Completion Date: | 9/14/2003 | | Spud Date: | 8/23/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 5520 ft. | Measured PB depth: | 5510 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 1404 FNL 1790 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1662 FNL 2044 FWL | | Log Types: | CBL, MICROLOG, HRI, SON, AIL, DPL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 907 ft., Weight: 36.0 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 907 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: , Depth: 5310 ft., Weight: 23.0 , Citings Type: ACTUAL | | Cement: | Sacks: 220, Top: 4220 ft., Bottom: 5310 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 6.25 in., Size: 5.5 in., Top: 5187 ft., Depth: 5507 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 70, Top: 5410 ft., Bottom: 5520 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.25 in., Size: 5.5 in., Top: , Depth: 5507 ft., Weight: 17.0 , Citings Type: ACTUAL | | Cement: | Sacks: 70, Top: 5414 ft., Bottom: 5507 ft., Determination Method: CBL | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4153 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 1425 ft., Bottom: , Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 2233 ft. | 5479 ft. | N | N | | ROLLINS | 5479 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: AB - 10/27/2014 Interval Top: 5168 ft. Interval Bottom: 5336 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | GAS LIFT | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/14/2003 | | Treatment Summary: | 3372 BBL OF 20# AND 237,600# 20/40 SAND IN 2 STAGES, GAS FLARED FOR TEST. NOW SOLD. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 5153 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/18/2004 | Test Method: | FLOWBACK | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 322 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 322 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 232 | | CASING_PRESS | 504 | | MCF_GAS | 232 | | TUBING_PRESS | 510 |
| | Perforation Data: | | Interval Top: | 5168 ft. | # Of Holes: | 128 | | Interval Bottom: | 5336 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 10/27/2014 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
