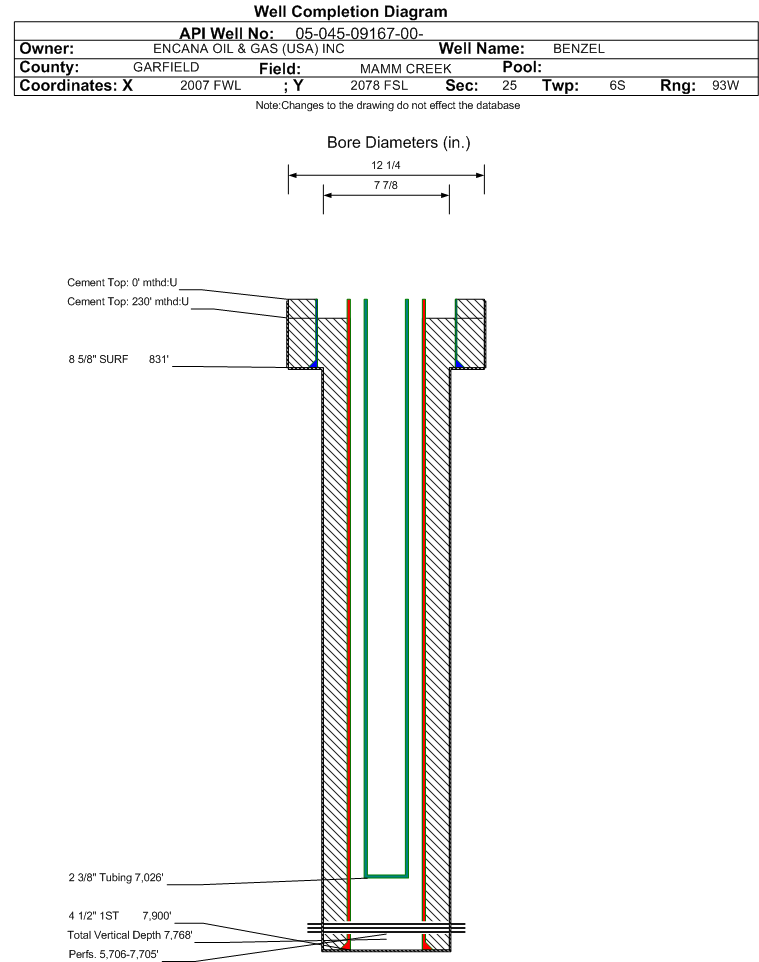

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09167		Well Classification: GW Status: PR - 6/3/2003
Well Name/No:BENZEL #25-10C (K25)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/3/2003
FacilityID:266682LocationID:335344
County:GARFIELD #045Location:NWSW 25 6S93W 6
Field:MAMM CREEK - #52500Elevation:5817 ft.
Basin:PICEANCE BASIN
Planned Location:2078FSL  2007 FWLLat/Long: 39.496070 / -107.726185Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.496150 / -107.726440Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/3/2003             Measured TD: 7900 ft.    Vertical TD: 7768 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/3/2003
Wellbore PermitDIRECTIONAL
Permit #:20030431 Expiration Date:3/16/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1351 FSL  2656 FEL
Bottom Hole Location:Sec: Twp: Footage: 1330 FSL  2650 FEL
Proposed Depth/Form:8000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC 55972X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/14/2003
Spud Date:5/17/2003Spud Date Is:ACTUAL
Measured TD:7900 ft.Measured PB depth:
True Vertical TD:7768 ft.True Vertical PB depth:7840 ft.
Top PZ Location:Sec: Twp: Footage: 1351 FSL  2656 FEL
Bottom Hole Location:Sec: Twp: Footage: 1330 FSL  2650 FEL
Log Types:CBL / GR / CCL, RST / GR / CCL / SM
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 831 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 831 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7900 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1125, Top: 230 ft., Bottom: 7899 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.4598 ft.NN
WILLIAMS FORK4599 ft.7636 ft.NN
ROLLINS7637 ft.7900 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 6/3/2003                  Interval Top: 5706 ft.    Interval Bottom: 7705 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:ROLLINSCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/14/2003
Treatment Summary:SEE SCANNED DOC# 1157792
Tubing Size:2.375 in.Tubing Setting Depth:7026 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/3/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 217
BBLS_OIL 13
BTU_GAS 1170
CALC_BBLS_H2O 217
CALC_BBLS_OIL 13
CALC_GOR 181
CALC_MCF_GAS 2352
CASING_PRESS 1800
MCF_GAS 2351
TUBING_PRESS 1600
Perforation Data:
Interval Top:5706 ft.# Of Holes:128
Interval Bottom:7705 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)87
Total Gas Produced (MCF)19179
GOR220448
GOR DeterminationMCFE
Average BOE per Day9.299
Average MCFE per Day53.917

 Federal Financial Assurance  i Y

 Tribal Well  i No
