 Surface Location
 API# 05-045-09164		Well Classification: GW Status: PR - 10/9/2008
Well Name/No:COUEY #13-16B (P13WB)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/9/2008
FacilityID:266663LocationID:334658
County:GARFIELD #045Location:SESE 13 7S93W 6
Field:MAMM CREEK - #52500Elevation:6285 ft.
Basin:PICEANCE BASIN
Planned Location:1152FSL  1218 FELLat/Long: 39.441901 / -107.718774Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.441890 / -107.718640Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/9/2008             Measured TD: 7645 ft.    Vertical TD: 7637 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/9/2008
Wellbore PermitDIRECTIONAL
Permit #:20030430 Expiration Date:3/13/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1310 FSL  1156 FEL
Bottom Hole Location:Sec: Twp: Footage: 1320 FSL  1150 FEL
Proposed Depth/Form:7900 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC 55972X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:12/21/2003
Spud Date:9/18/2003Spud Date Is:ACTUAL
Measured TD:7645 ft.Measured PB depth:7598 ft.
True Vertical TD:7637 ft.True Vertical PB depth:7684 ft.
Top PZ Location:Sec:13 Twp: 7s 93wFootage: 1325 FSL  1214 FEL
Bottom Hole Location:Sec:13 Twp: 7S 93WFootage: 1434 FSL  1175 FEL
Log Types:CBL, PEX - AITH ( OPEN )
Log Types:CBL, AI/GR

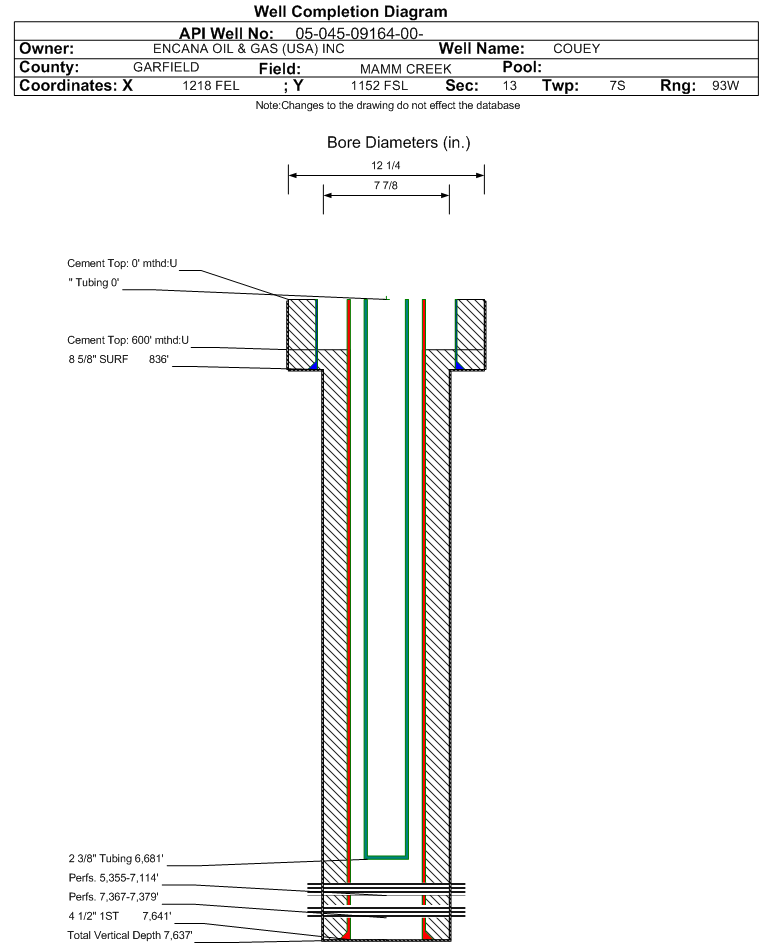

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 836 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 836 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7641 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1450, Top: 600 ft., Bottom: 7645 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: 4.5 in., Top: , Depth: 1500 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 1450 ft., Bottom: 1550 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.4304 ft.
WILLIAMS FORK4305 ft.7313 ft.
ROLLINS7314 ft.7645 ft.

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 10/9/2008                 Interval Top: 7367 ft.    Interval Bottom: 7379 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:ROLLINSCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/21/2003
Treatment Summary:STAGE 1; ACID BALLOUT, 7367-7379, 16-0.450" SHOTS, 1833 BBLS OF SLICKWATER, 74000# 20-40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/18/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_OIL 1
CALC_GOR 24
CALC_MCF_GAS 24
CASING_PRESS 700
MCF_GAS 24
Perforation Data:
Interval Top:7367 ft.# Of Holes:16
Interval Bottom:7379 ft.Hole Size:

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 12/18/2003                Interval Top: 5355 ft.    Interval Bottom: 7114 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/21/2003
Treatment Summary:STAGE 2; ACID BALLOUT, 6915-7114,18.0.410" SHOTS, 4520 BBLS OF SLICKWATER,159000# 20-40 SAND, STAGE 3; ACID BALLOUT, 6310-6536, 16-0.450" SHOTS, 2290 BBLS OF SLICKWATER, 84000# 20-40 SAND, STAGE 4; ACID BALLOUT; 6044-6231, 18-0.410" SHOTS, 5056 BBLS OF
Tubing Size:2.375 in.Tubing Setting Depth:6681 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/18/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_OIL 1
CALC_GOR 2334
CALC_MCF_GAS 2334
CASING_PRESS 700
MCF_GAS 2334
Perforation Data:
Interval Top:5355 ft.# Of Holes:88
Interval Bottom:7114 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)30610
GOR2186428
GOR DeterminationMCFE
Average BOE per Day14.498
Average MCFE per Day84.098

 Federal Financial Assurance  i Y

 Tribal Well  i No
