COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09155		Well Classification: GW Status: PR - 2/19/2004
Well Name/No:KELL #35-4A (B35NW)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/19/2004
FacilityID:266568LocationID:335329
County:GARFIELD #045Location:NWNE 35 6S93W 6
Field:MAMM CREEK - #52500Elevation:5819 ft.
Basin:PICEANCE BASIN
Planned Location:616FNL  2449 FELLat/Long: 39.488430 / -107.741995Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.488720 / -107.742090Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/19/2004             Measured TD: 8075 ft.    Vertical TD: 7498 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/19/2004
Wellbore PermitDIRECTIONAL
Permit #:20030369 Expiration Date:3/9/2004
Proposed Top PZ Location:Sec:35 Twp: Footage: 715 FNL  824 FWL
Bottom Hole Location:Sec:35 Twp: Footage: 660 FNL  660 FWL
Proposed Depth/Form:7800 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC 56608X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:11/21/2003
Spud Date:4/28/2003Spud Date Is:ACTUAL
Measured TD:8075 ft.Measured PB depth:7802 ft.
True Vertical TD:7498 ft.True Vertical PB depth:0 ft.
Top PZ Location:Sec:35 Twp: Footage: 715 FNL  824 FWL
Bottom Hole Location:Sec:35 Twp: Footage: 660 FNL  660 FWL
Log Types:CBL/GR/CCL, RST/GR/CCL

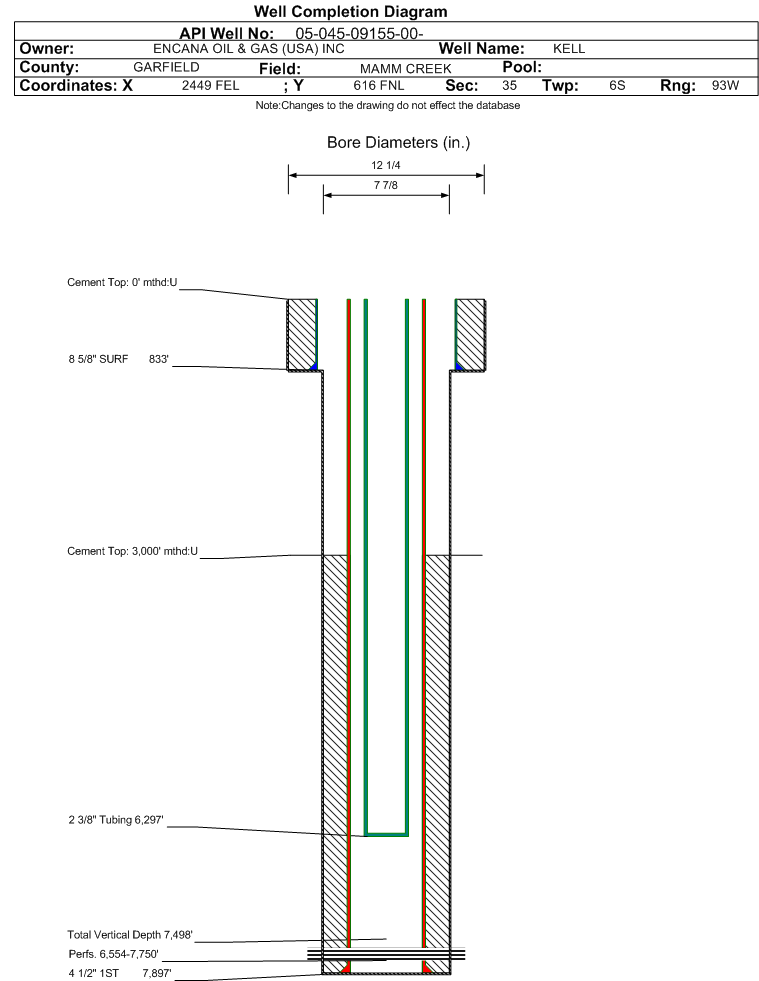

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 833 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 675, Top: 0 ft., Bottom: 833 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7897 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1115, Top: 3000 ft., Bottom: 7897 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.5223 ft.NN
WILLIAMS FORK5224 ft.8075 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 2/19/2004                 Interval Top: 6554 ft.    Interval Bottom: 7750 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/21/2003
Treatment Summary:SEE OGCC COMMENTS
Tubing Size:2.375 in.Tubing Setting Depth:6297 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/10/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 0
CALC_BBLS_OIL 1
CALC_GOR 2861
CALC_MCF_GAS 2861
CASING_PRESS 1400
MCF_GAS 2861
Perforation Data:
Interval Top:6554 ft.# Of Holes:118
Interval Bottom:7750 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)31
Total Gas Produced (MCF)6221
GOR200677
GOR DeterminationMCFE
Average BOE per Day3.020
Average MCFE per Day17.494

 Federal Financial Assurance  i Y

 Tribal Well  i No
