Wellbore #00 Wellbore Classification: GW Status: PR - 10/17/2003 Measured TD: 6927 ft. Vertical TD: 6804 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/17/2003 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20030373 | Expiration Date: | 3/9/2004 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 3292 FSL 649 FWL | | Bottom Hole Location: | Sec:34 Twp: | Footage: 1970 FNL 650 FWL | | Proposed Depth/Form: | 7200 ft. | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

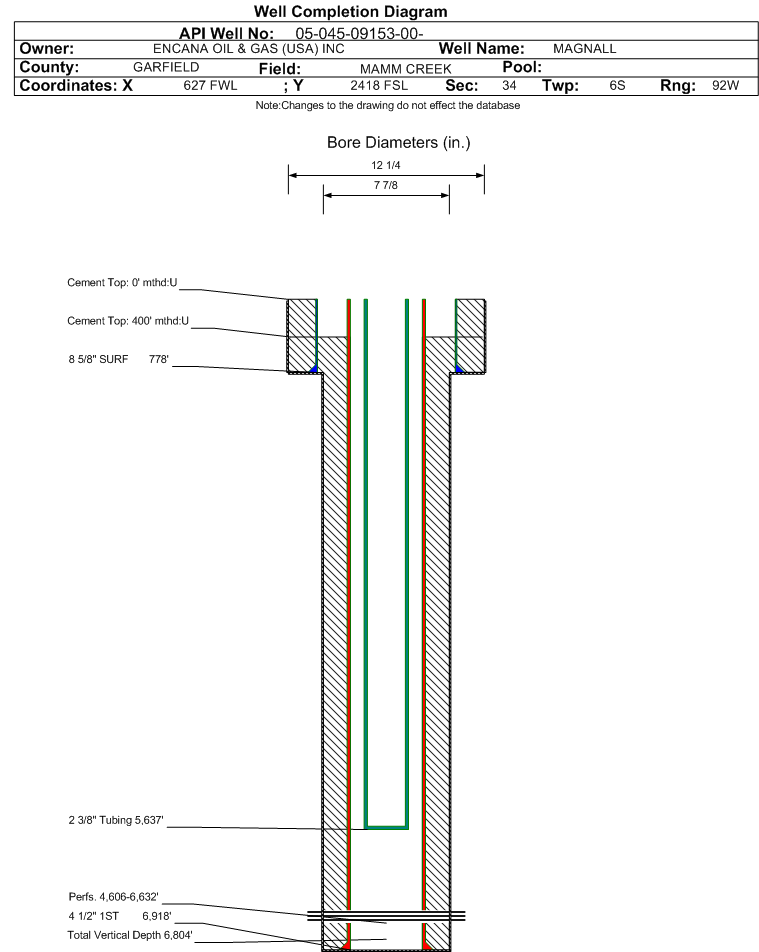

| Wellbore Completed | | Completion Date: | 11/3/2003 | | Spud Date: | 4/24/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 6927 ft. | Measured PB depth: | 6851 ft. | | True Vertical TD: | 6804 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 3292 FSL 649 FWL | | Bottom Hole Location: | Sec:34 Twp: | Footage: 1970 FNL 650 FWL | | Log Types: | PEX-AITH,CBL/GRCL/VDL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 778 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 776 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6918 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1540, Top: 400 ft., Bottom: 6918 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3521 ft. | N | N | | WILLIAMS FORK | 3522 ft. | 6702 ft. | N | N | | ROLLINS | 6703 ft. | 6927 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 10/17/2003 Interval Top: 4606 ft. Interval Bottom: 6632 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/3/2003 | | Treatment Summary: | SEE SCANNED DOC.# 01257099 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5637 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/17/2003 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 288 | | BBLS_OIL | 1 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 288 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 2021 | | CALC_MCF_GAS | 2021 | | CASING_PRESS | 600 | | MCF_GAS | 2021 |
| | Perforation Data: | | Interval Top: | 4606 ft. | # Of Holes: | 132 | | Interval Bottom: | 6632 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 94 |
| Total Gas Produced (MCF) | 14611 |
| GOR | 155436 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.163 |
| Average MCFE per Day | 41.517 |
| Federal Financial Assurance | i | |
|
|
