Wellbore #00 Wellbore Classification: GW Status: PR - 12/9/2003 Measured TD: 6983 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/9/2003 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20030153 | Expiration Date: | 2/25/2004 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1598 FNL 750 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1600 FNL 750 FWL | | Proposed Depth/Form: | 7000 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-19 , Unit Acreage: 160, Drill Unit: NW/4 |
| | |

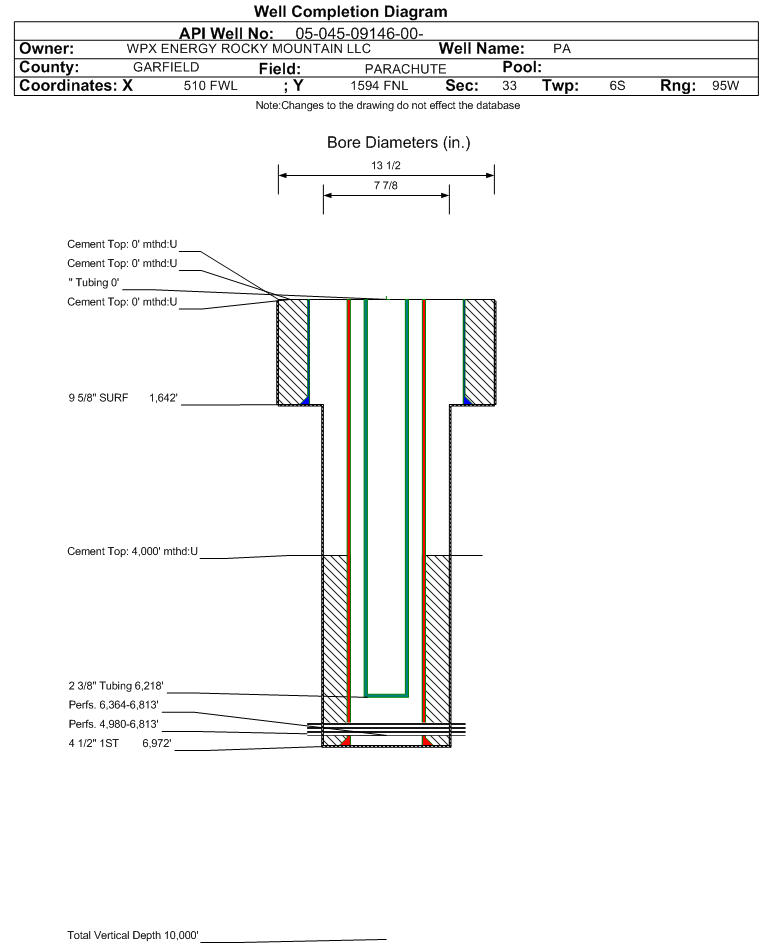

| Wellbore Completed | | Completion Date: | 11/8/2003 | | Spud Date: | 10/5/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 6983 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 1598 FNL 750 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1600 FNL 750 FWL | | Log Types: | DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1642 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 625, Top: 0 ft., Bottom: 1642 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6972 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 895, Top: 4000 ft., Bottom: 6972 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CALC | | Casing: | String Type: S.C. 2.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 1452 ft. | | N | N | | FORT UNION | 1753 ft. | | N | N | | MESAVERDE | 3569 ft. | | N | N | | CAMEO | 6211 ft. | | N | N | | ROLLINS | 6896 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: CM - 12/9/2003 Interval Top: 6364 ft. Interval Bottom: 6813 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/8/2003 | | Treatment Summary: | 1500 GALS 7-1/2% HCL, 129538# 20/40, 3041 BBLS SLICK WATER; (B) 6058-6259 20 HOLES, 1000 GALS 7-1/2% HCL, 140215# 20/40, 3337 BBLS SLICK WATER; (C) 5644-5973 18 HOLES, 1000 GALS 7-1/2% HCL, 12594# 02/40, 3047 BBLS SLICK WATER; (SEE COMMENTS) |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | Perforation Data: | | Interval Top: | 6364 ft. | # Of Holes: | 17 | | Interval Bottom: | 6813 ft. | Hole Size: | |
|
Formation WFCM Formation Classification: GW Status: PR - 12/9/2003 Interval Top: 4980 ft. Interval Bottom: 6813 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/8/2003 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6218 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/9/2003 | Test Method: | | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_MCF_GAS | 2047 | | CASING_PRESS | 1849 | | TUBING_PRESS | 1709 |
| | Perforation Data: | | Interval Top: | 4980 ft. | # Of Holes: | 87 | | Interval Bottom: | 6813 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 16 |
| Total Gas Produced (MCF) | 13036 |
| GOR | 814750 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.199 |
| Average MCFE per Day | 35.990 |
| Federal Financial Assurance | i | |
|
|
