Wellbore #00 Wellbore Classification: GW Status: SI - 10/1/2025 Measured TD: 6000 ft. Vertical TD: 0 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 10/1/2025 | | Wellbore Permit | | | Permit #: | 20030235 | Expiration Date: | 2/12/2004 | | Proposed Depth/Form: | 5500 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972X | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

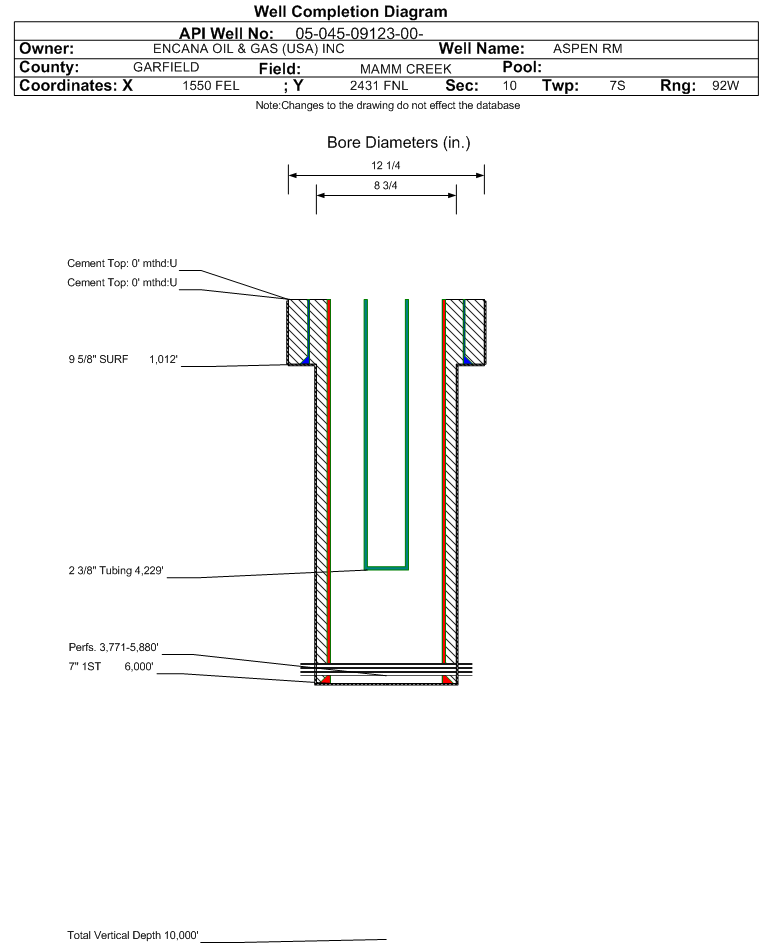

| Wellbore Completed | | Completion Date: | 4/27/2003 | | Spud Date: | 2/22/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 6000 ft. | Measured PB depth: | 5967 ft. | | True Vertical TD: | 0 ft. | True Vertical PB depth: | 0 ft. | | Log Types: | CBL/VD/GR/CCL, CB/GR/TEMP, AI/LC/GR, CN/TLD/GR, BCS/GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1012 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 395, Top: 0 ft., Bottom: 1012 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 6000 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 1400, Top: 0 ft., Bottom: 6000 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 2735 ft. | N | N | | WILLIAMS FORK | 2736 ft. | 5887 ft. | N | N | | ROLLINS | 5888 ft. | 6000 ft. | N | N |
Formation WMFK Formation Classification: GW Status: SI - 10/1/2025 Interval Top: 3771 ft. Interval Bottom: 5880 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/27/2003 | | Treatment Summary: | STAGE 1:ACID BALLOUT,5796-5880,64-0.320" SHOTS, NO FRAC, STAGE 2: ACID BALLOUT, 4236-4493,16-0.3320" SHOTS, 2633 BBLS OF SLICKWATER,132720# 20-40 SAND, STAGE 3: ACID BALLOUT,3771-4007,14-0.320" SHOTS, 2530 BBLS OF SLICKWATER, 143600# 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4229 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/27/2003 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 202 | | BBLS_OIL | 1 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 202 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 1175 | | CALC_MCF_GAS | 1175 | | CASING_PRESS | 695 | | MCF_GAS | 1175 | | TUBING_PRESS | 416 |
| | Perforation Data: | | Interval Top: | 3771 ft. | # Of Holes: | 94 | | Interval Bottom: | 5880 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 39 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.019 |
| Average MCFE per Day | 0.108 |
| Federal Financial Assurance | i | Y |
|
|
