Wellbore #00 Wellbore Classification: GW Status: PA - 1/20/2015 Measured TD: 4461 ft. Vertical TD: 4461 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 1/20/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20030176 | Expiration Date: | 2/6/2004 | | Proposed Top PZ Location: | Sec:23 Twp: 7S 92W | Footage: 2397 FNL 394 FEL | | Bottom Hole Location: | Sec:23 Twp: 7S 92W | Footage: 2397 FNL 394 FEL | | Proposed Depth/Form: | 5115 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55279X | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

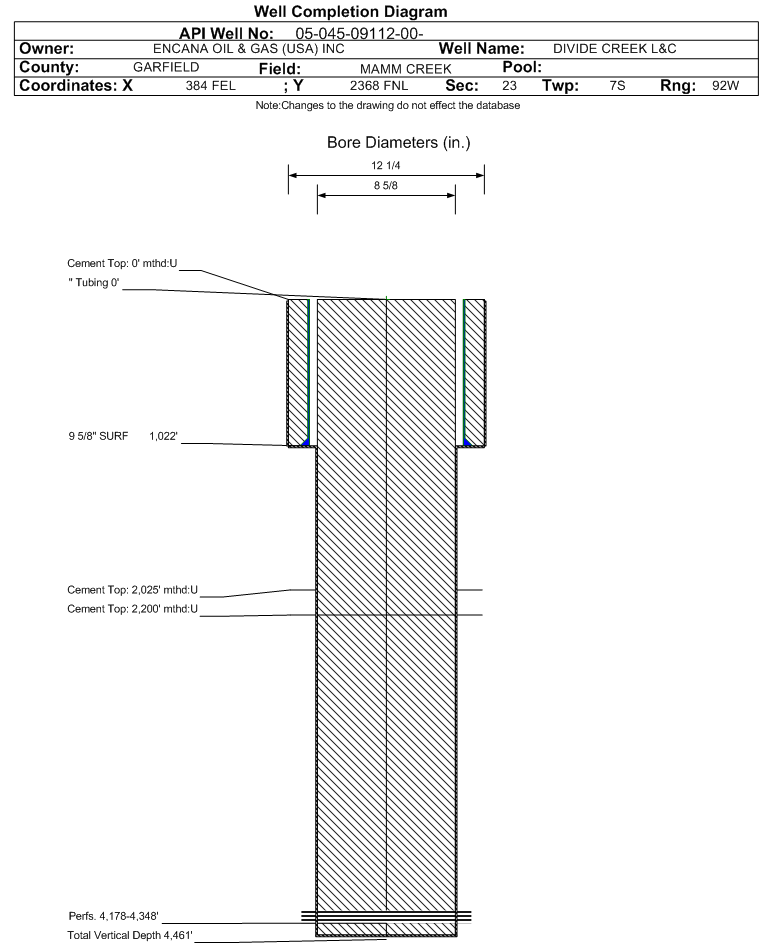

| Wellbore Completed | | Completion Date: | 4/30/2003 | | Spud Date: | 3/9/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 4461 ft. | Measured PB depth: | 4385 ft. | | True Vertical TD: | 4461 ft. | True Vertical PB depth: | 4385 ft. | | Top PZ Location: | Sec:23 Twp: 7S 92W | Footage: 2397 FNL 394 FEL | | Bottom Hole Location: | Sec:23 Twp: 7S 92W | Footage: 2397 FNL 394 FEL | | Log Types: | DIL/SFL, CNL/FDC | | Log Types: | RST,CBL, USIT | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1022 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 440, Top: 0 ft., Bottom: 1022 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.625 in., Size: , Top: 0 ft., Depth: 4431 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 1155, Top: 2025 ft., Bottom: 4431 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 3981 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 600, Top: 2200 ft., Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | OHIO CREEK | 1191 ft. | 1756 ft. | N | N | | WILLIAMS FORK | 1756 ft. | 4461 ft. | N | N |
Formation WMFK Formation Classification: GW Status: AB - 1/20/2015 Interval Top: 4178 ft. Interval Bottom: 4348 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 11/25/2006 | | Treatment Summary: | CIBP SET AT 4110, 3600 W 2 SX CMT, 2500 W 2X CMT | | Formation Treatment | | Treatment Date: | 6/26/2003 | | Treatment Summary: | STAGE 5:4311-4348 48 0.430" SHOTS 905 BBLS OF X-LINK GEL 91320 LBS OF 20/40 SAND;STAGE 6:4178-4209 44 0.430" SHOTS 853 BBLS OF X-LINK 78000 LBS OF 20/40 SAND. SEE FILE FOR 4178-4209 FIGURES TESTED 7/30/2003. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 806 | | BBLS_OIL | 0 | | BTU_GAS | 1067 | | CALC_BBLS_H2O | 1612 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 244000 | | CALC_MCF_GAS | 244 | | CASING_PRESS | 0 | | MCF_GAS | 122 | | TUBING_PRESS | 253 |
| | Perforation Data: | | Interval Top: | 4178 ft. | # Of Holes: | 92 | | Interval Bottom: | 4348 ft. | Hole Size: | 0.43 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 01/20/2015 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
