Wellbore #00 Wellbore Classification: GW Status: PA - 1/26/2015 Measured TD: 4681 ft. Vertical TD: 4545 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 1/26/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20030177 | Expiration Date: | 2/6/2004 | | Proposed Top PZ Location: | Sec: Twp: 23 | Footage: 2393 FNL 322 FEL | | Bottom Hole Location: | Sec: Twp: 24 | Footage: 3504 FNL 276 FWL | | Proposed Depth/Form: | 5230 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55279X | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

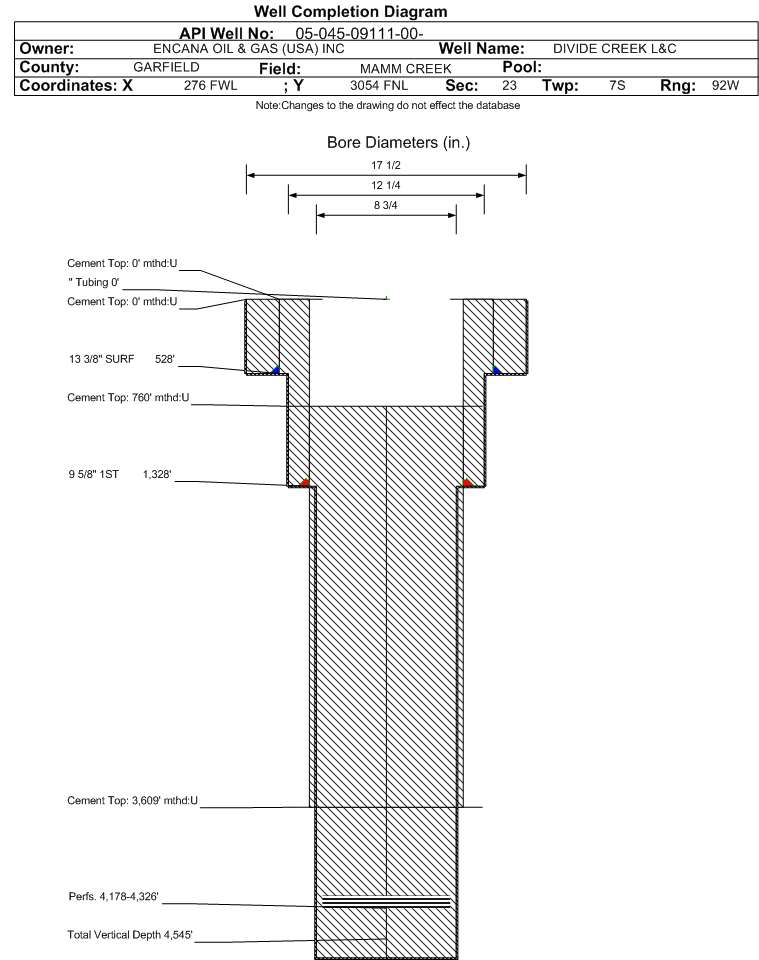

| Wellbore Completed | | Completion Date: | 11/8/2003 | | Spud Date: | 10/13/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 4681 ft. | Measured PB depth: | 4583 ft. | | True Vertical TD: | 4545 ft. | True Vertical PB depth: | 4449 ft. | | Top PZ Location: | Sec: Twp: 23 | Footage: 2393 FNL 322 FEL | | Bottom Hole Location: | Sec: Twp: 24 | Footage: 3504 FNL 276 FWL | | Log Types: | HRI, SDDSN, RSL, MICRO, CBL'S | | Casing: | String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 482 ft., Depth: 528 ft., Weight: 68 , Citings Type: ACTUAL | | Cement: | Sacks: 455, Top: 0 ft., Bottom: 528 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 1284 ft., Depth: 1328 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 600, Top: 0 ft., Bottom: 1328 ft., Determination Method: CALC | | Casing: | String Type: 2ND, Hole Size: 8.75 in., Size: , Top: 4638 ft., Depth: 4680 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 3609 ft., Bottom: 4680 ft., Determination Method: CBL | | Casing: | String Type: S.C. 2.1, Hole Size: , Size: , Top: , Depth: 3609 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 600, Top: 760 ft., Bottom: 3609 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 1756 ft. | 4681 ft. | N | N |
Formation WMFK Formation Classification: GW Status: AB - 2/4/2015 Interval Top: 4178 ft. Interval Bottom: 4326 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 3/30/2004 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 11/20/2006 | | Treatment Summary: | CIBP SET AT 4320 AND 4105 TO TA WELL | | Formation Treatment | | Treatment Date: | 11/8/2003 | | Treatment Summary: | 2818 BBLS DELTA FRAC, 184000#20/40 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 940 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 940 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 940000 | | CALC_MCF_GAS | 48 | | CASING_PRESS | 740 | | MCF_GAS | 48 |
| | Perforation Data: | | Interval Top: | 4178 ft. | # Of Holes: | 56 | | Interval Bottom: | 4326 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 02/04/2015 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
