Wellbore #00 Wellbore Classification: GW Status: PA - 2/4/2015 Measured TD: 4770 ft. Vertical TD: 0 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 2/4/2015 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20030180 | Expiration Date: | 2/6/2004 | | Proposed Top PZ Location: | Sec:23 Twp: | Footage: 2259 FNL 328 FEL | | Bottom Hole Location: | Sec:24 Twp: | Footage: 1734 FNL 276 FWL | | Proposed Depth/Form: | 5230 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55279X | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

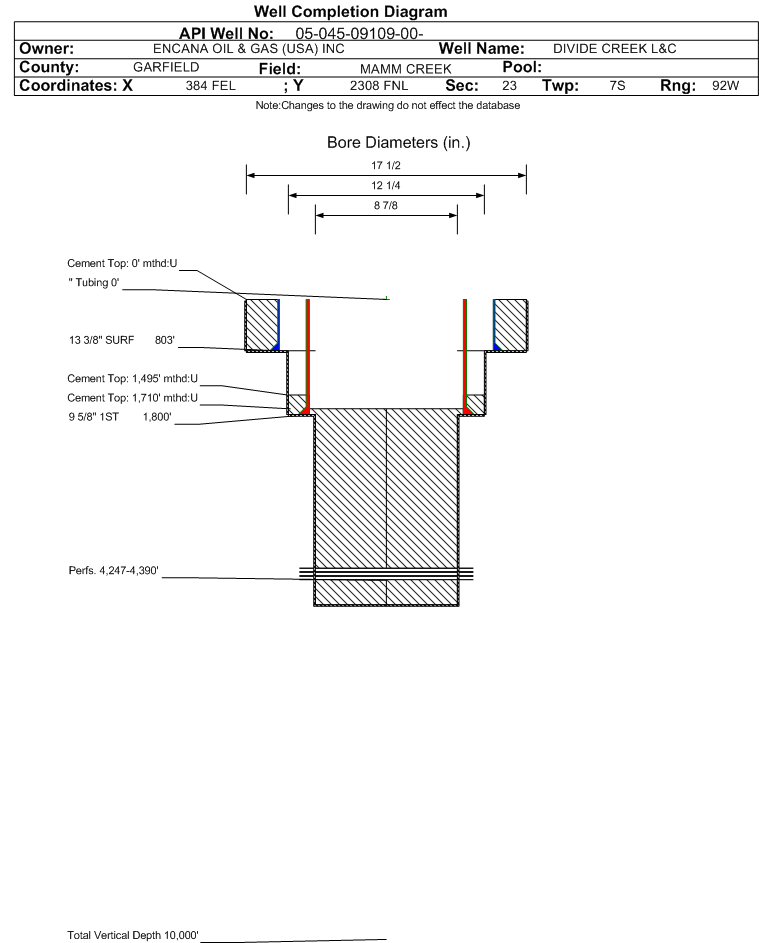

| Wellbore Completed | | Completion Date: | 4/12/2004 | | Spud Date: | 11/9/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 4770 ft. | Measured PB depth: | 4697 ft. | | True Vertical TD: | 0 ft. | True Vertical PB depth: | 0 ft. | | Top PZ Location: | Sec:23 Twp: | Footage: 2259 FNL 328 FEL | | Bottom Hole Location: | Sec:24 Twp: | Footage: 1734 FNL 276 FWL | | Log Types: | PEX, CBL | | Casing: | String Type: SURF, Hole Size: 17.5 in., Size: 13.375 in., Top: 0 ft., Depth: 803 ft., Weight: 54.5 , Citings Type: ACTUAL | | Cement: | Sacks: 800, Top: 0 ft., Bottom: 803 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 1800 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 840, Top: 1495 ft., Bottom: 1800 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: 8.875 in., Size: , Top: 0 ft., Depth: 4770 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 875, Top: 1710 ft., Bottom: 4770 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 1808 ft. | 4770 ft. | N | N |
Formation WMFK Formation Classification: OW Status: AB - 2/4/2015 Interval Top: 4247 ft. Interval Bottom: 4390 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 4/14/2004 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 11/12/2006 | | Treatment Summary: | CIBP SET AT 4170 TO TA WELL | | Formation Treatment | | Treatment Date: | 4/12/2004 | | Treatment Summary: | STAGE 1: 4,344-4,390 52-0360" SHOTS, 990 BBL # DELTA FRAC 844000 LBS 20-40 SAND STAGE 2: 4247-4261 48-.36" SHOTS, 1302 BBLS OF DELTA FRAC, 844000 LBS 20/40 SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1405 | | BBLS_OIL | 0 | | BTU_GAS | 1067 | | CALC_BBLS_H2O | 1405 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 0 | | CASING_PRESS | 830 | | MCF_GAS | 0 |
| | Perforation Data: | | Interval Top: | 4247 ft. | # Of Holes: | 100 | | Interval Bottom: | 4390 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 02/04/2015 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
