COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09106		Well Classification: GW Status: PR - 12/10/2003
Well Name/No:GM #341-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 46604
Facility Status:PRStatus Date12/10/2003
FacilityID:266035LocationID:335425
County:GARFIELD #045Location:NENE 27 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5767 ft.
Basin:PICEANCE BASIN
Planned Location:937FNL  681 FELLat/Long: 39.499878 / -108.087636Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.499885 / -108.087628Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/10/2003             Measured TD: 7305 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/10/2003
Wellbore PermitDIRECTIONAL
Permit #:20030122 Expiration Date:2/5/2004
Proposed Top PZ Location:Sec: Twp: Footage: 331 FNL  648 FEL
Bottom Hole Location:Sec: Twp: Footage: 280 FNL  660 FEL
Proposed Depth/Form:7310 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:12/5/2003
Spud Date:10/18/2003Spud Date Is:ACTUAL
Measured TD:7305 ft.Measured PB depth:7216 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 331 FNL  648 FEL
Bottom Hole Location:Sec: Twp: Footage: 280 FNL  660 FEL
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL.

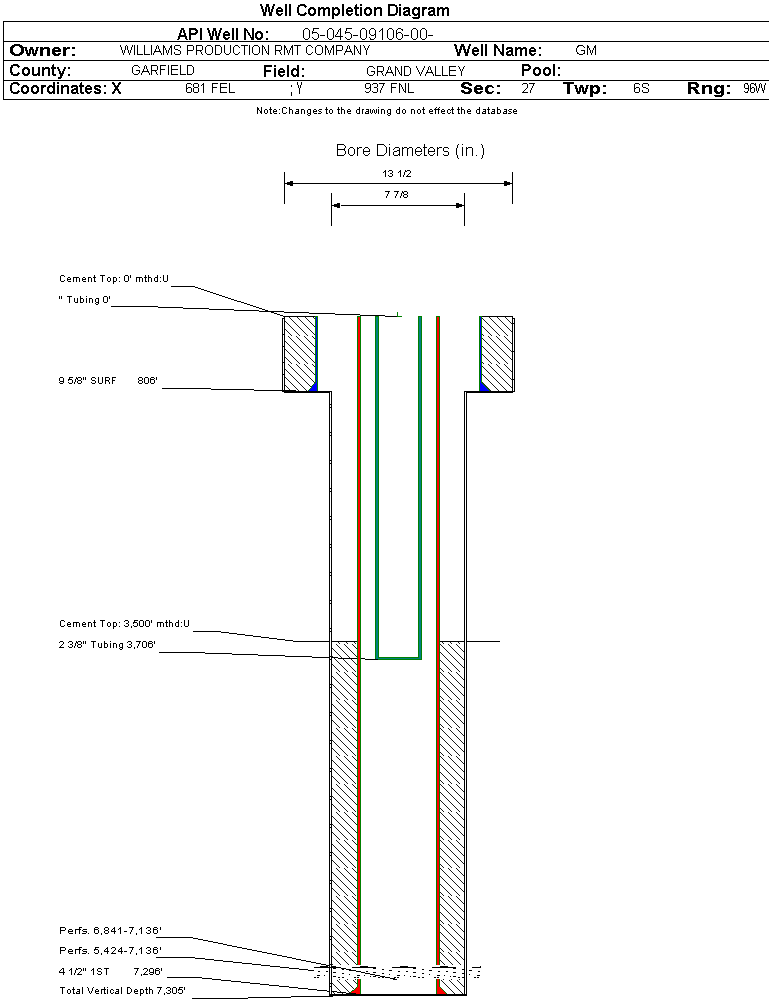

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 806 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 380, Top: 0 ft., Bottom: 806 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7296 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 935, Top: 3500 ft., Bottom: 7296 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH2283 ft.NN
FORT UNION2573 ft.NN
MESAVERDE4140 ft.NN
CAMEO COAL6781 ft.NN
ROLLINS7240 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 12/10/2003                Interval Top: 6841 ft.    Interval Bottom: 7136 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/5/2003
Treatment Summary:1000 GALS 7 1/2% HCL, 130,232# 20/40, 3005 BBLS SLICK WATER.;6369-6745',20HOLES/100,809#20/40,2604 BBL SLICK WATER.;5872-6129,17HOLES;1000 GAL 71/2%HCL,127,942#20/40,3184 BBL SLICK WTR.; 5424-5793(CONT)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:6841 ft.# Of Holes:17
Interval Bottom:7136 ft.Hole Size:0.48 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/10/2003                Interval Top: 5424 ft.    Interval Bottom: 7136 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/5/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:3706 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/10/2003Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1664
CASING_PRESS 1640
MCF_GAS 1664
TUBING_PRESS 1550
Perforation Data:
Interval Top:5424 ft.# Of Holes:72
Interval Bottom:7136 ft.Hole Size:0.43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)10
Total Gas Produced (MCF)5568
GOR556800
GOR DeterminationMCFE
Average BOE per Day2.657
Average MCFE per Day15.419

 Federal Financial Assurance  i

 Tribal Well  i No
