COGIS

Facility Detail

COGIS - WELL SCOUT CARD

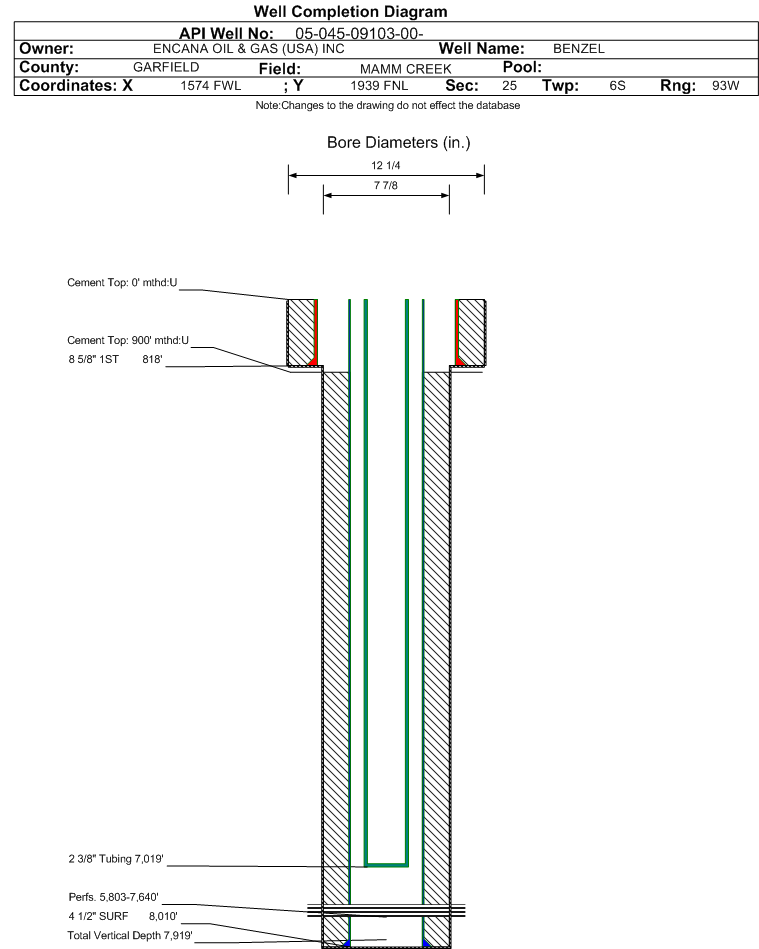

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09103		Well Classification: GW Status: PR - 6/1/2025
Well Name/No:BENZEL #25-12A (F25NW)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/1/2025
FacilityID:265944LocationID:335104
County:GARFIELD #045Location:SENW 25 6S93W 6
Field:MAMM CREEK - #52500Elevation:5817 ft.
Basin:PICEANCE BASIN
Planned Location:1939FNL  1574 FWLLat/Long: 39.499230 / -107.727695Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.499420 / -107.727580Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/1/2025             Measured TD: 8017 ft.    Vertical TD: 7919 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20030108 Expiration Date:1/28/2004
Proposed Top PZ Location:Sec: Twp: Footage: 2598 FNL  1325 FWL
Bottom Hole Location:Sec:25 Twp: Footage: 2612 FNL  1310 FWL
Proposed Depth/Form:8200 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA FED. Unit Number:COC 56608X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:6/27/2003
Spud Date:4/21/2003Spud Date Is:ACTUAL
Measured TD:8017 ft.Measured PB depth:7965 ft.
True Vertical TD:7919 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2598 FNL  1325 FWL
Bottom Hole Location:Sec:25 Twp: Footage: 2612 FNL  1310 FWL
Log Types:RSL, CBL
Casing:String Type: SURF, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8010 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1085, Top: 900 ft., Bottom: 8010 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 818 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: , Bottom: 818 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.4756 ft.NN
WILLIAMS FORK4757 ft.7903 ft.NN
ROLLINS7904 ft.8017 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 6/1/2025                  Interval Top: 5803 ft.    Interval Bottom: 7640 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/27/2003
Treatment Summary:SEE SCANNED DOC# 1159317
Tubing Size:2.375 in.Tubing Setting Depth:7019 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/20/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 94
BBLS_OIL 11
BTU_GAS 1170
CALC_BBLS_H2O 94
CALC_BBLS_OIL 11
CALC_GOR 221
CALC_MCF_GAS 2428
CASING_PRESS 1600
MCF_GAS 2428
TUBING_PRESS 1400
Perforation Data:
Interval Top:5803 ft.# Of Holes:84
Interval Bottom:7640 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)82
Total Gas Produced (MCF)11134
GOR135780
GOR DeterminationMCFE
Average BOE per Day5.483
Average MCFE per Day31.797

 Federal Financial Assurance  i Y

 Tribal Well  i No
