COGIS - WELL SCOUT CARD

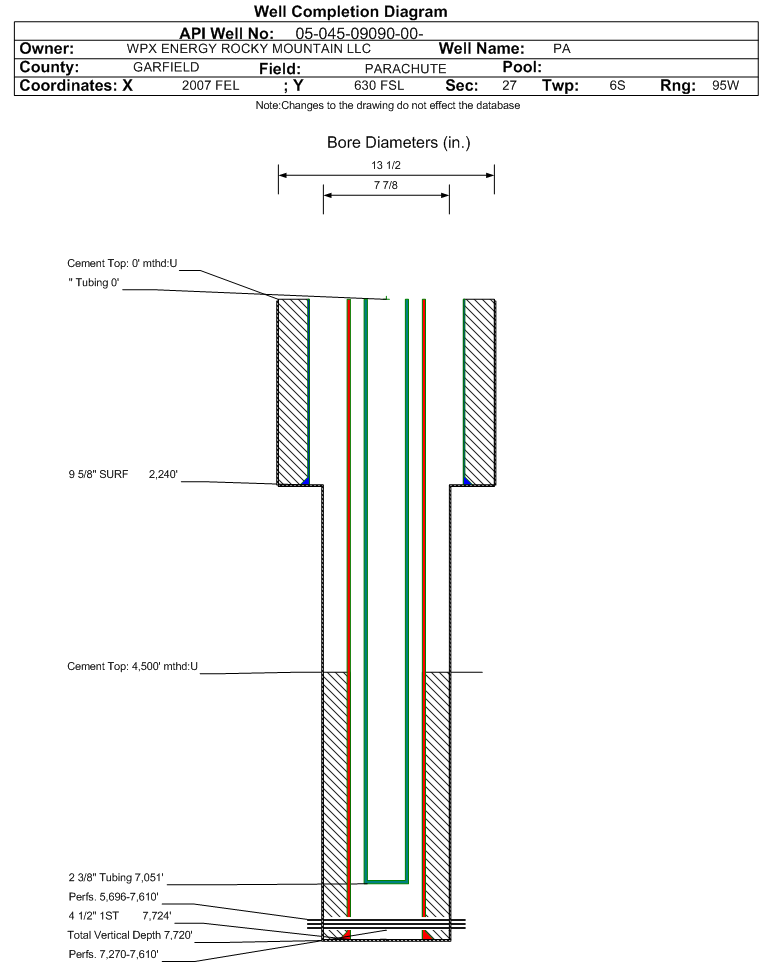

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09090		Well Classification: GW Status: PR - 1/20/2004
Well Name/No:PA #34-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62161
Facility Status:PRStatus Date1/20/2004
FacilityID:265918LocationID:335220
County:GARFIELD #045Location:SWSE 27 6S95W 6
Field:PARACHUTE - #67350Elevation:5463 ft.
Basin:PICEANCE BASIN
Planned Location:630FSL  2007 FELLat/Long: 39.490089 / -107.982483Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.490168 / -107.982551Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/20/2004             Measured TD: 7728 ft.    Vertical TD: 7720 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/20/2004
Wellbore Permit
Permit #:20030048 Expiration Date:1/23/2004
Proposed Depth/Form:7630 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-19 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:1/7/2004
Spud Date:11/27/2003Spud Date Is:ACTUAL
Measured TD:7728 ft.Measured PB depth:7697 ft.
True Vertical TD:7720 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 510 FSL  1919 FEL
Bottom Hole Location:Sec: Twp: Footage: 500 FSL  2096 FEL
Log Types:HIGH RESOLUTION INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2240 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 830, Top: 0 ft., Bottom: 2240 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7724 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 936, Top: 4500 ft., Bottom: 7724 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH1987 ft.NN
FORT UNION2253 ft.NN
MESAVERDE4223 ft.NN
CAMEO COAL6917 ft.NN
ROLLINS7681 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 1/20/2004                 Interval Top: 7270 ft.    Interval Bottom: 7610 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/7/2004
Treatment Summary:1000 GALS 7 1/2% HCL, 110287# 20/40,2834 BBLS SLICK WATER.;6705-7060' W/15 HOLES;750 GAL 7 1/2% HCL,95303#20/40,2490 BBL SLICK WATER.;6342-6575';1000 GAL 7 1/2%HCL,124739#20/40,2855 BBL SLK WTR.;6103-6245';750 GAL 7 1/2%HCL,98020#20/40,2360 BBL SLK (CONT)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:7270 ft.# Of Holes:17
Interval Bottom:7610 ft.Hole Size:

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/20/2004                 Interval Top: 5696 ft.    Interval Bottom: 7610 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:1/7/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7051 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/20/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1107
CALC_MCF_GAS 1649
CASING_PRESS 1960
MCF_GAS 1649
TUBING_PRESS 1831
Perforation Data:
Interval Top:5696 ft.# Of Holes:82
Interval Bottom:7610 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)23
Total Gas Produced (MCF)16979
GOR738217
GOR DeterminationMCFE
Average BOE per Day8.084
Average MCFE per Day46.909

 Federal Financial Assurance  i

 Tribal Well  i No
