COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09064		Well Classification: GW Status: PR - 9/29/2003
Well Name/No:PITMAN #13-6A (13)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/29/2003
FacilityID:265815LocationID:334665
County:GARFIELD #045Location:NESE 13 7S93W 6
Field:MAMM CREEK - #52500Elevation:6282 ft.
Basin:PICEANCE BASIN
Planned Location:2435FSL  970 FELLat/Long: 39.445451 / -107.717904Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.445470 / -107.717790Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/29/2003             Measured TD: 8295 ft.    Vertical TD: 7764 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/29/2003
Wellbore PermitDIRECTIONAL
Permit #:20022385 Expiration Date:1/14/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1522 FNL  2500 FEL
Bottom Hole Location:Sec:13 Twp: Footage: 1330 FNL  2650 FEL
Proposed Depth/Form:8100 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC 55972X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:9/28/2003
Spud Date:6/3/2003Spud Date Is:ACTUAL
Measured TD:8295 ft.Measured PB depth:8229 ft.
True Vertical TD:7764 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1522 FNL  2500 FEL
Bottom Hole Location:Sec:13 Twp: Footage: 1330 FNL  2650 FEL
Log Types:CBL / GRCL / VDL, RST / GRCL / SM

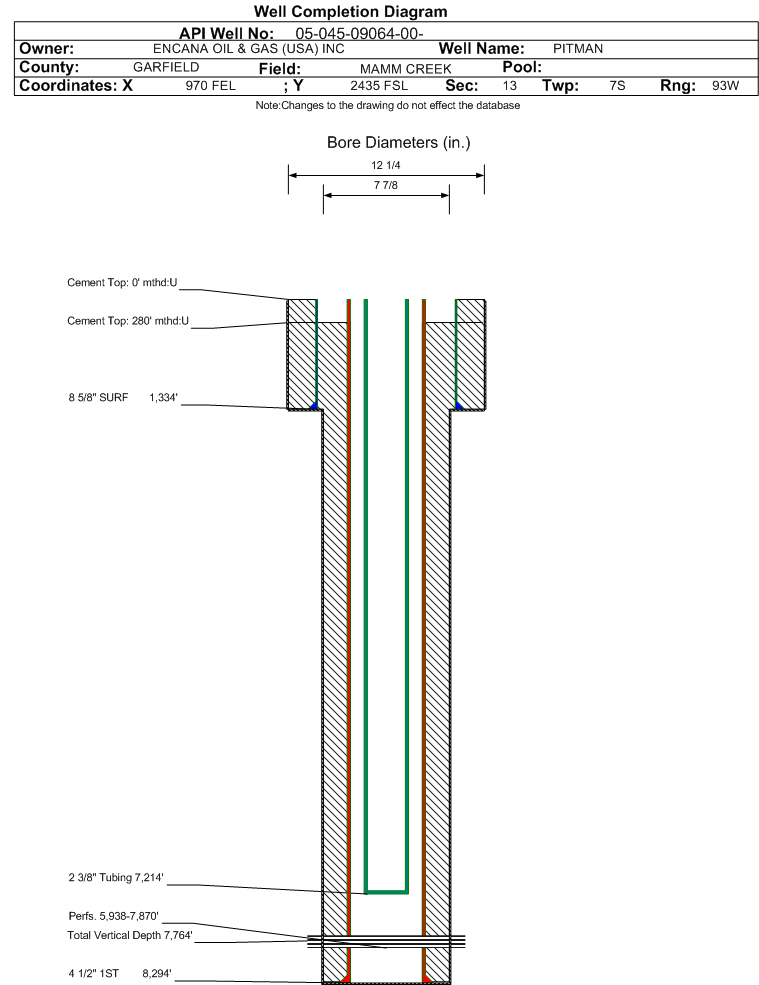

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1334 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 665, Top: , Bottom: 1335 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8294 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1355, Top: 280 ft., Bottom: 8280 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.5030 ft.NN
WILLIAMS FORK5031 ft.7984 ft.NN
ROLLINS7985 ft.8295 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 9/29/2003                 Interval Top: 5938 ft.    Interval Bottom: 7870 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/28/2003
Treatment Summary:SEE SCANNED DOC# 1159779
Tubing Size:2.375 in.Tubing Setting Depth:7214 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/29/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 118
BBLS_OIL 25
BTU_GAS 1170
CALC_BBLS_H2O 118
CALC_BBLS_OIL 25
CALC_GOR 104
CALC_MCF_GAS 2596
CASING_PRESS 1434
MCF_GAS 2596
TUBING_PRESS 1084
Perforation Data:
Interval Top:5938 ft.# Of Holes:106
Interval Bottom:7870 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)3
Total Gas Produced (MCF)21533
GOR7177666
GOR DeterminationMCFE
Average BOE per Day10.181
Average MCFE per Day59.047

 Federal Financial Assurance  i Y

 Tribal Well  i No
