 Surface Location
 API# 05-045-09057		Well Classification: GW Status: PR - 9/1/2025
Well Name/No:ROSE RANCH #10-16C (I10B)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2025
FacilityID:265799LocationID:334675
County:GARFIELD #045Location:SWSE 10 7S93W 6
Field:MAMM CREEK - #52500Elevation:6866 ft.
Basin:PICEANCE BASIN
Planned Location:1310FSL  1562 FELLat/Long: 39.456271 / -107.756805Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.456440 / -107.756910Lat/Long Source: Field Measured

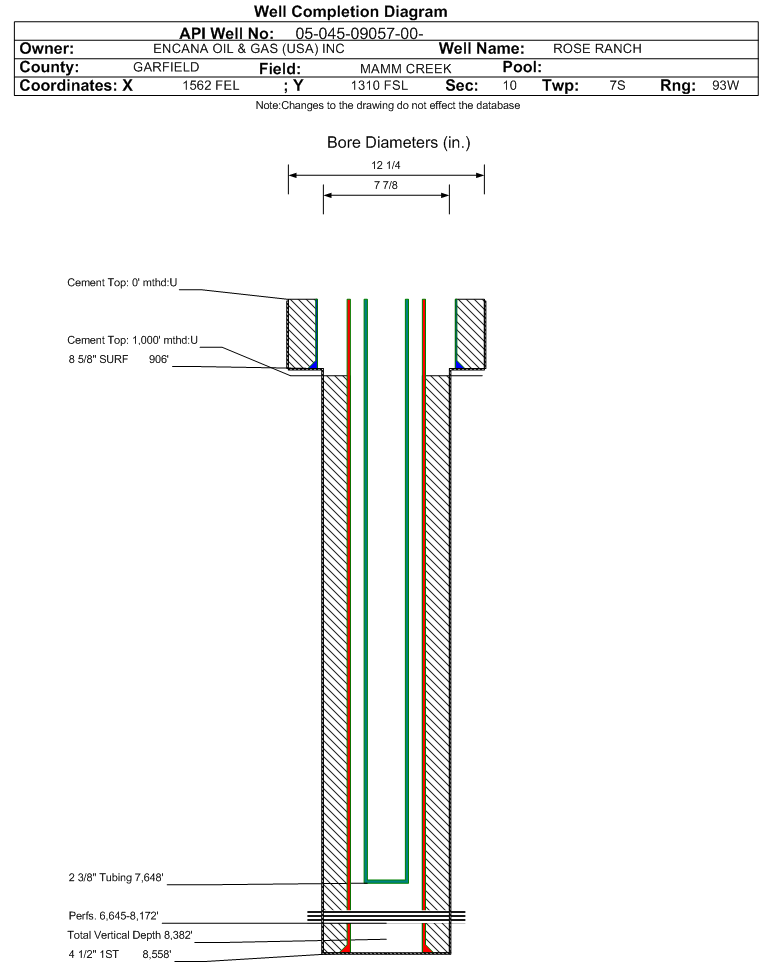

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2025             Measured TD: 8560 ft.    Vertical TD: 8382 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20022387 Expiration Date:1/13/2004
Proposed Top PZ Location:Sec:10 Twp: Footage: 12 FSL  1570 FEL
Bottom Hole Location:Sec:10 Twp: Footage: 10 FSL  1300 FEL
Proposed Depth/Form:8800 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA FED Unit Number:COC 55279X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:7/24/2003
Spud Date:3/20/2003Spud Date Is:ACTUAL
Measured TD:8560 ft.Measured PB depth:8385 ft.
True Vertical TD:8382 ft.True Vertical PB depth:
Top PZ Location:Sec:10 Twp: Footage: 12 FSL  1570 FEL
Bottom Hole Location:Sec:10 Twp: Footage: 10 FSL  1300 FEL
Log Types:CBL/GR/CCL, RST/GR/CCL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 906 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 475, Top: 0 ft., Bottom: 906 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8558 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1255, Top: 1000 ft., Bottom: 8558 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.5998 ft.NN
WILLIAMS FORK5999 ft.8560 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 9/1/2025                  Interval Top: 6645 ft.    Interval Bottom: 8172 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/24/2003
Treatment Summary:SEE SCANNED DOC# 01257169
Tubing Size:2.375 in.Tubing Setting Depth:7648 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/25/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 1
CALC_BBLS_OIL 1
CALC_GOR 2508
CALC_MCF_GAS 2508
CASING_PRESS 1941
MCF_GAS 2508
TUBING_PRESS 776
Perforation Data:
Interval Top:6645 ft.# Of Holes:74
Interval Bottom:8172 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)440
GOR
GOR DeterminationMCFE
Average BOE per Day0.211
Average MCFE per Day1.222

 Federal Financial Assurance  i Y

 Tribal Well  i No
