COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09055		Well Classification: CBM Status: PR - 4/27/2003
Well Name/No:PA #314-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/27/2003
FacilityID:265748LocationID:334929
County:GARFIELD #045Location:SWSW 34 6S95W 6
Field:PARACHUTE - #67350Elevation:5140 ft.
Basin:PICEANCE BASIN
Planned Location:463FSL  562 FWLLat/Long: 39.475069 / -107.991813Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.474727 / -107.991691Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 4/27/2003             Measured TD: 6900 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 4/27/2003
Wellbore PermitDIRECTIONAL
Permit #:20022376 Expiration Date:1/7/2004
Proposed Top PZ Location:Sec: Twp: Footage: 776 FSL  1229 FWL
Bottom Hole Location:Sec: Twp: Footage: 780 FSL  1240 FWL
Proposed Depth/Form:6870 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-19 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:4/6/2003
Spud Date:3/12/2003Spud Date Is:ACTUAL
Measured TD:6900 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 776 FSL  1229 FWL
Bottom Hole Location:Sec: Twp: Footage: 780 FSL  1240 FWL
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL

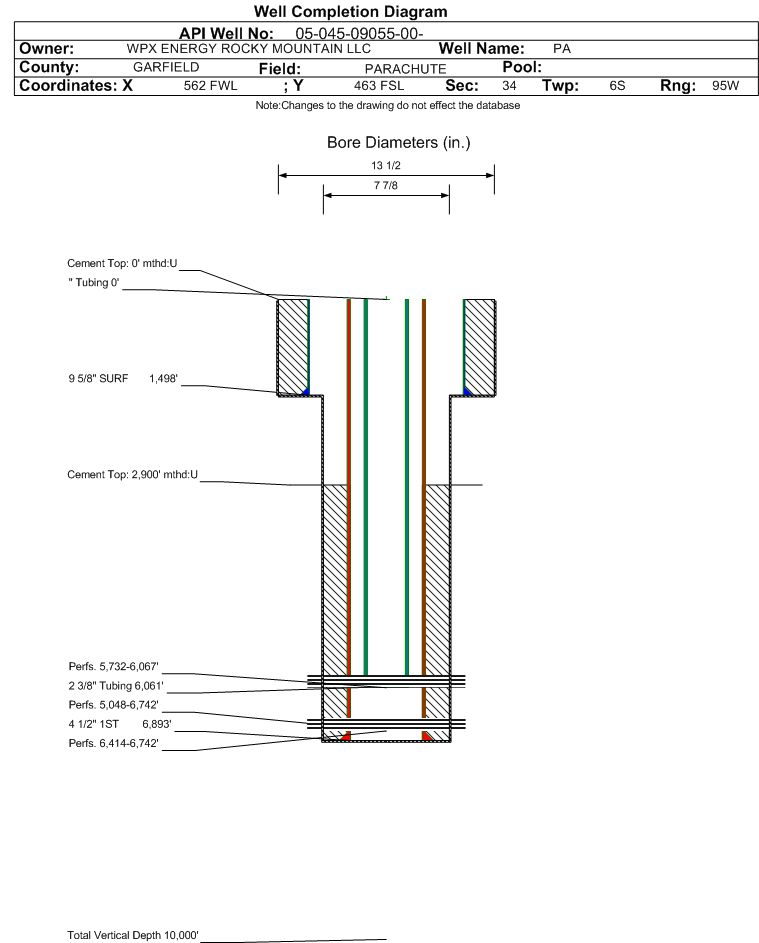

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1498 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 580, Top: , Bottom: 1498 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6893 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 945, Top: 2900 ft., Bottom: 6893 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
J SAND1245 ft.NN
FORT UNION1575 ft.NN
MESAVERDE3505 ft.NN
CAMBRIAN6128 ft.NN
ROLLINS6815 ft.NN

Formation WMFK                     Formation Classification:  OW                     Status:  CM - 4/27/2003                 Interval Top: 6414 ft.    Interval Bottom: 6742 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/6/2003
Treatment Summary:750 GALS 7 1/2% HCL, 137,958# 20/40 3277 BBLS SLICK WATER.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:6414 ft.# Of Holes:16
Interval Bottom:6742 ft.Hole Size:

Formation WMFKC                   Formation Classification:  OW                   Status:  CM - 4/27/2003                 Interval Top: 5732 ft.    Interval Bottom: 6067 ft.

 Completed Information for Formation WILLIAMS FORK COAL
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/6/2003
Treatment Summary:750 GALS 7 1/2% HCL, 144,501# 20/40, 3,291 BBLS SLICK WATER
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFKC.
Perforation Data:
Interval Top:5732 ft.# Of Holes:19
Interval Bottom:6067 ft.Hole Size:

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 4/27/2003                 Interval Top: 5048 ft.    Interval Bottom: 6742 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/6/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6061 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/27/2003Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1566
CASING_PRESS 1704
TUBING_PRESS 1594
Perforation Data:
Interval Top:5048 ft.# Of Holes:69
Interval Bottom:6742 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)25
Total Gas Produced (MCF)11710
GOR468400
GOR DeterminationMCFE
Average BOE per Day5.605
Average MCFE per Day32.496

 Federal Financial Assurance  i

 Tribal Well  i No
