COGIS - WELL SCOUT CARD

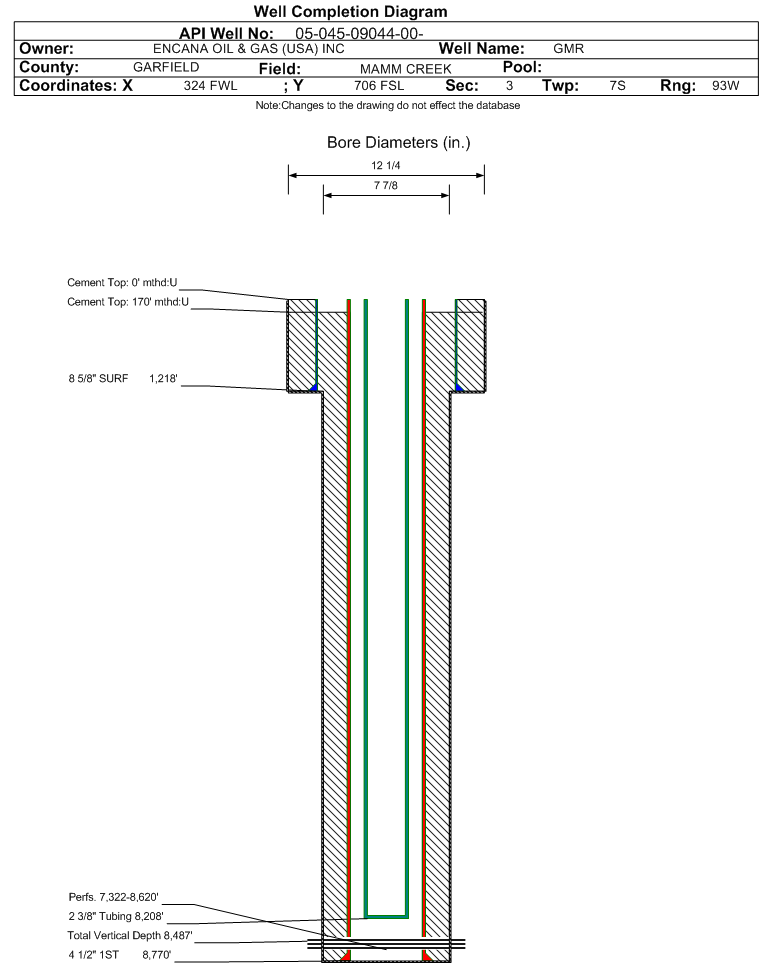

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09044		Well Classification: GW Status: PR - 11/1/2024
Well Name/No:GMR #9-1D (M3A)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/1/2024
FacilityID:265642LocationID:334649
County:GARFIELD #045Location:SWSW 3 7S93W 6
Field:MAMM CREEK - #52500Elevation:6882 ft.
Basin:PICEANCE BASIN
Planned Location:706FSL  324 FWLLat/Long: 39.469210 / -107.768586Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.469280 / -107.768660Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/1/2024             Measured TD: 8773 ft.    Vertical TD: 8487 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/1/2024
Wellbore PermitDIRECTIONAL
Permit #:20022333 Expiration Date:12/29/2003
Proposed Top PZ Location:Sec: Twp: Footage: 971 FNL  234 FEL
Bottom Hole Location:Sec: Twp: Footage: 990 FNL  330 FEL
Proposed Depth/Form:9100 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC 55972X
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/29/2003
Spud Date:4/13/2003Spud Date Is:ACTUAL
Measured TD:8773 ft.Measured PB depth:
True Vertical TD:8487 ft.True Vertical PB depth:8656 ft.
Top PZ Location:Sec: Twp: Footage: 971 FNL  234 FEL
Bottom Hole Location:Sec:9 Twp: Footage: 990 FNL  330 FEL
Log Types:AI/LC/GR, CN/TLD/GR, CBL/VDL/GR/CCL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1218 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 625, Top: 0 ft., Bottom: 1218 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8770 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1216, Top: 170 ft., Bottom: 8773 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.6144 ft.NN
WILLIAMS FORK6145 ft.8773 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 11/1/2024                 Interval Top: 7322 ft.    Interval Bottom: 8620 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/29/2003
Treatment Summary:STAGE 1:ACID BALLOUT,8373-8620,16-0.340" SHOTS, 3648BBLS OF SLICKWATER,125000#20-40 SAND, STAGE 2: ACID BALLOUT,8108-8282,14-0.340" SHOTS,2096BBLS OF SLICKWATER,88000# 20-40 SAND STAGE 3: ACID BALLOUT, 8108-8282,14-0.340" SHOTS, 2137 BBLS (CONT) -
Tubing Size:2.375 in.Tubing Setting Depth:8208 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/29/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 1
CALC_BBLS_OIL 1
CALC_GOR 1643
CALC_MCF_GAS 1643
CASING_PRESS 1650
MCF_GAS 1643
TUBING_PRESS 1450
Perforation Data:
Interval Top:7322 ft.# Of Holes:76
Interval Bottom:8620 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)4134
GOR275600
GOR DeterminationMCFE
Average BOE per Day1.998
Average MCFE per Day11.589

 Federal Financial Assurance  i Y

 Tribal Well  i No
