COGIS - WELL SCOUT CARD

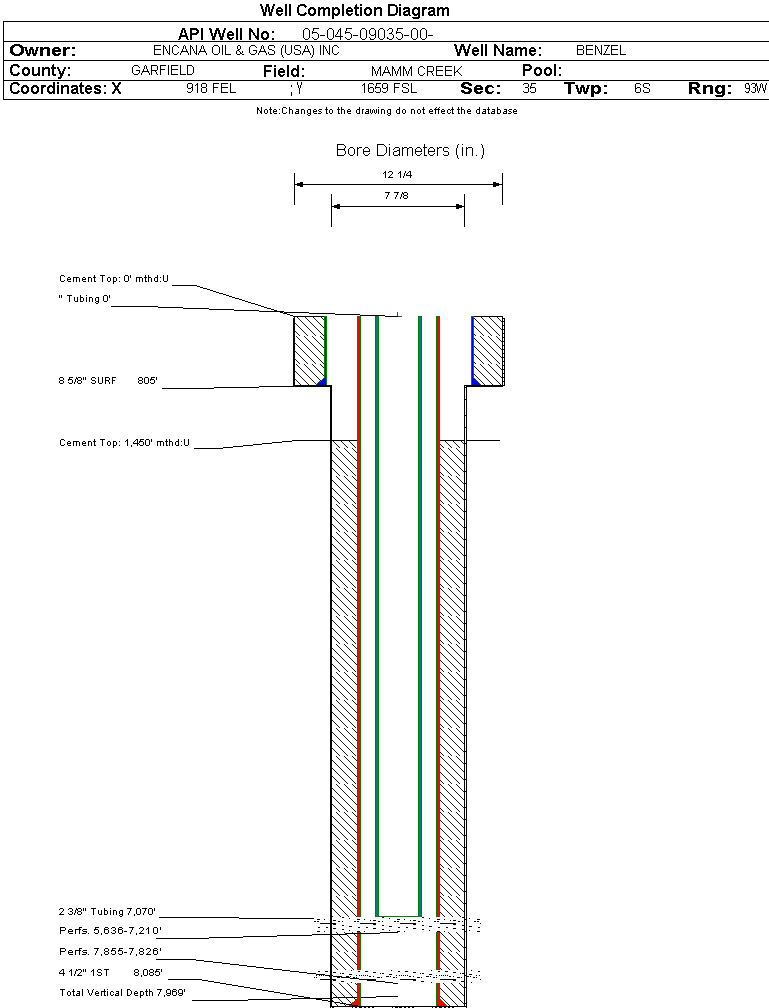

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09035		Well Classification: GW Status: PR - 5/24/2003
Well Name/No:BENZEL #36-12C (I35)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/24/2003
FacilityID:265615LocationID:334919
County:GARFIELD #045Location:SWNE 35 6S93W 6
Field:MAMM CREEK - #52500Elevation:5838 ft.
Basin:PICEANCE BASIN
Planned Location:1659FSL  918 FELLat/Long: 39.480340 / -107.736565Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.480340 / -107.736540Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/5/2004             Measured TD: 8085 ft.    Vertical TD: 7969 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/5/2004
Wellbore PermitDIRECTIONAL
Permit #:20042783 Expiration Date:12/14/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1340 FSL  13 FWL
Bottom Hole Location:Sec: Twp: Footage: 1330 FSL  10 FWL
Proposed Depth/Form:8085 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC 56608X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 805 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 450, Top: 0 ft., Bottom: 805 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8085 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 1125, Top: 500 ft., Bottom: 8085 ft.
Wellbore Completed
Completion Date:6/6/2003
Spud Date:2/10/2003Spud Date Is:ACTUAL
Measured TD:8085 ft.Measured PB depth:
True Vertical TD:7969 ft.True Vertical PB depth:8048 ft.
Top PZ Location:Sec: Twp: Footage: 1432 FSL  59 FEL
Bottom Hole Location:Sec: Twp: Footage: 1330 FSL  10 FWL
Log Types:GBL/GR/CCL, AI/LC/GR, CN/LD/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 805 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 805 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8085 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1125, Top: 1450 ft., Bottom: 8085 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.4680 ft.NN
WILLIAMS FORK4681 ft.7790 ft.NN
ROLLINS7791 ft.8085 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 5/24/2003                 Interval Top: 7826 ft.    Interval Bottom: 7855 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:ROLLINSCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/6/2003
Treatment Summary:STAGE #1: ACID BALLOUT, 7355-7826, 24-0.340" SHOTS, 4810 BBLS OF SLICKWATER, 203600 LBS 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/24/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 8
CALC_BBLS_OIL 1
CALC_GOR 100
CALC_MCF_GAS 100
CASING_PRESS 680
MCF_GAS 100
TUBING_PRESS 590
Perforation Data:
Interval Top:7826 ft.# Of Holes:24
Interval Bottom:7855 ft.Hole Size:3.4 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 5/24/2003                 Interval Top: 5636 ft.    Interval Bottom: 7210 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/6/2003
Treatment Summary:STAGE 2:ACID BALLOUT 6861-7210 16-0.340" SHOTS 2838 BBLW OF SLICKWATER 102420 LBS 20/40 SAND;STAGE 3:ACID BALLOUT 6326-6708 18-0.340" SHOTS 2345 BBLS OF SLICKWATER 123560 LBS 20/40 SAND;STAGE 4;ACID BALLOUT 5974-6168 22-0.34" SHORTS 4285 BBLS OF - CONT'D
Tubing Size:2.375 in.Tubing Setting Depth:7070 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/24/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 72
BBLS_OIL 9
BTU_GAS 1170
CALC_BBLS_H2O 72
CALC_BBLS_OIL 9
CALC_GOR 101
CALC_MCF_GAS 910
MCF_GAS 910
TUBING_PRESS 590
Perforation Data:
Interval Top:5636 ft.# Of Holes:76
Interval Bottom:7210 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)23
Total Gas Produced (MCF)19401
GOR843521
GOR DeterminationMCFE
Average BOE per Day9.238
Average MCFE per Day53.564

 Federal Financial Assurance  i Y

 Tribal Well  i No
