COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09014		Well Classification: OW Status: PR - 3/7/2003
Well Name/No:PUCKETT/TOSCO #PA 33-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/7/2003
FacilityID:265429LocationID:324220
County:GARFIELD #045Location:NWSE 34 6S95W 6
Field:PARACHUTE - #67350Elevation:5186 ft.
Basin:PICEANCE BASIN
Planned Location:2468FSL  2031 FELLat/Long: 39.480609 / -107.982543Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.480236 / -107.982448Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 3/7/2003             Measured TD: 7139 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 3/7/2003
Wellbore Permit
Permit #:20022222 Expiration Date:12/8/2003
Proposed Depth/Form:7150 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-19 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:1/29/2003
Spud Date:1/5/2003Spud Date Is:ACTUAL
Measured TD:7139 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2423 FSL  2240 FEL
Bottom Hole Location:Sec: Twp: Footage: 2349 FSL  2293 FEL
Log Types:ARRY IND. COMPENSATED NUE.TRIPLE LITHO DEN.,CBL

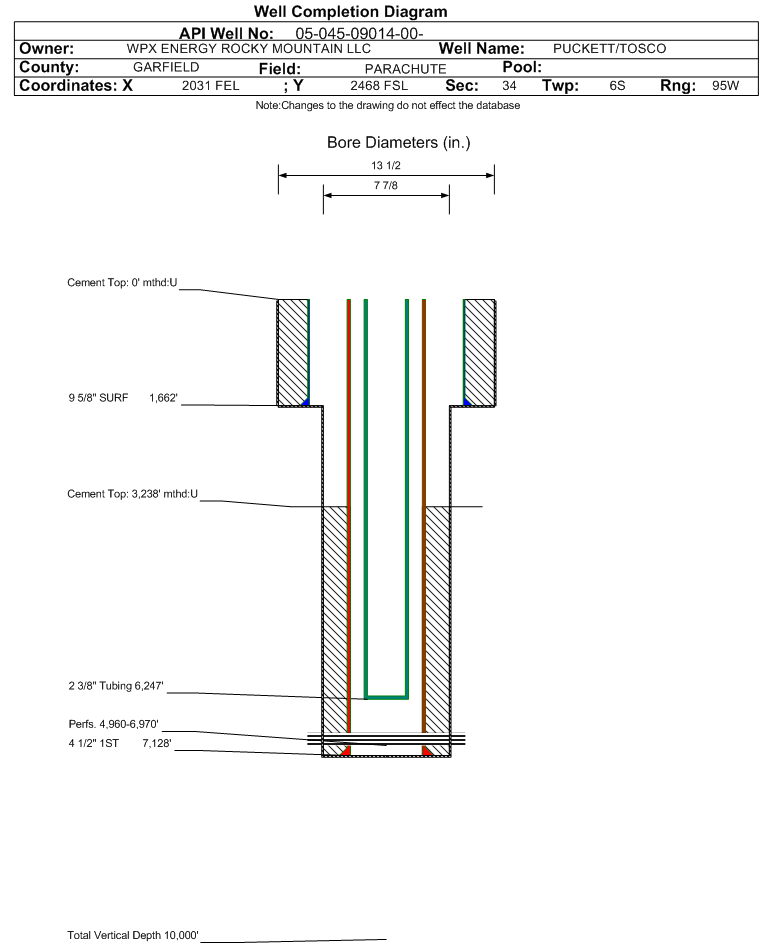

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1662 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 650, Top: 0 ft., Bottom: 1662 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7128 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1025, Top: 3238 ft., Bottom: 7128 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1453 ft.NN
FORT UNION1784 ft.NN
MESAVERDE3664 ft.NN
CAMEO6316 ft.NN
ROLLINS7012 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 3/7/2003                  Interval Top: 4960 ft.    Interval Bottom: 6970 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:1/29/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6247 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/7/2003Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1212
CASING_PRESS 1747
TUBING_PRESS 1672
Perforation Data:
Interval Top:4960 ft.# Of Holes:103
Interval Bottom:6970 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)12982
GOR865466
GOR DeterminationMCFE
Average BOE per Day6.174
Average MCFE per Day35.824

 Federal Financial Assurance  i

 Tribal Well  i No
