COGIS - WELL SCOUT CARD

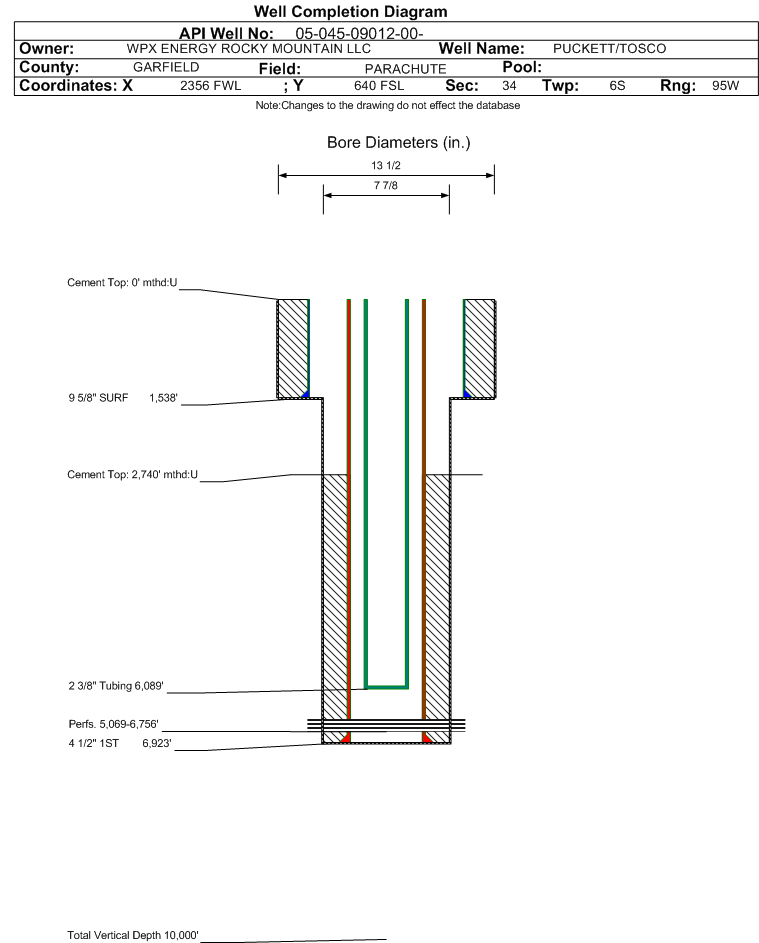

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09012		Well Classification: GW Status: PR - 12/9/2002
Well Name/No:PUCKETT/TOSCO #PA 24-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/9/2002
FacilityID:265427LocationID:324218
County:GARFIELD #045Location:SESW 34 6S95W 6
Field:PARACHUTE - #67350Elevation:5152 ft.
Basin:PICEANCE BASIN
Planned Location:640FSL  2356 FWLLat/Long: 39.475579 / -107.985463Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.476038 / -107.985355Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/2/2002             Measured TD: 6926 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/2/2002
Wellbore PermitDIRECTIONAL
Permit #:20022244 Expiration Date:12/8/2003
Proposed Top PZ Location:Sec: Twp: Footage: 800 FSL  2249 FWL
Bottom Hole Location:Sec: Twp: Footage: 1000 FSL  2250 FWL
Proposed Depth/Form:6970 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-19 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:3/15/2003
Spud Date:2/15/2003Spud Date Is:ACTUAL
Measured TD:6926 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 800 FSL  2249 FWL
Bottom Hole Location:Sec: Twp: Footage: 1000 FSL  2250 FWL
Log Types:DUAL IND.,SPECTRAL DEN DUAL SPACED NEU.,CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1538 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 575, Top: 0 ft., Bottom: 1538 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6923 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1050, Top: 2740 ft., Bottom: 6923 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1324 ft.NN
FORT UNION1636 ft.NN
MESAVERDE3507 ft.NN
CAMEO6147 ft.NN
ROLLINS6840 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/7/2003                  Interval Top: 5069 ft.    Interval Bottom: 6756 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/15/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6089 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/7/2003Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 941
TUBING_PRESS 730
Perforation Data:
Interval Top:5069 ft.# Of Holes:84
Interval Bottom:6756 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)10385
GOR865416
GOR DeterminationMCFE
Average BOE per Day4.937
Average MCFE per Day28.650

 Federal Financial Assurance  i

 Tribal Well  i No
