COGIS - WELL SCOUT CARD

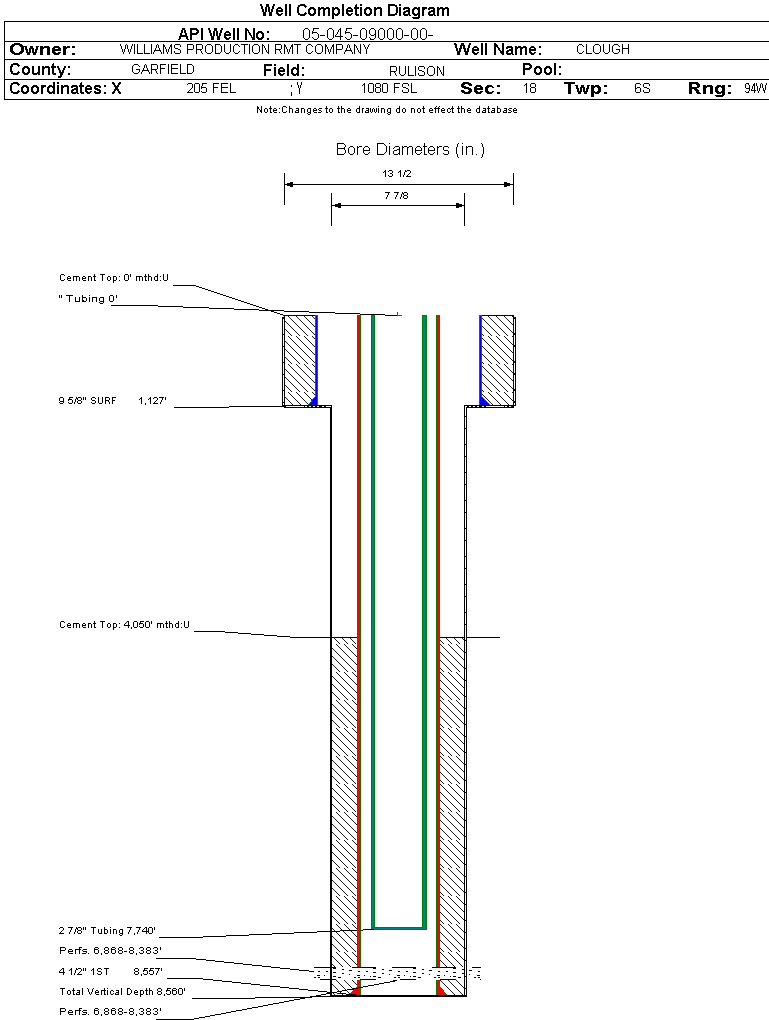

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09000		Well Classification: CBM Status: PR - 4/28/2003
Well Name/No:CLOUGH #RWF 44-18
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62724
Facility Status:PRStatus Date4/28/2003
FacilityID:265376LocationID:335146
County:GARFIELD #045Location:SESE 18 6S94W 6
Field:RULISON - #75400Elevation:5808 ft.
Basin:PICEANCE BASIN
Planned Location:1080FSL  205 FELLat/Long: 39.520569 / -107.922041Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.520624 / -107.922052Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 4/28/2003             Measured TD: 8560 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 4/28/2003
Wellbore PermitDIRECTIONAL
Permit #:20022229 Expiration Date:12/4/2003
Proposed Top PZ Location:Sec: Twp: Footage: 348 FSL  294 FEL
Bottom Hole Location:Sec: Twp: Footage: 300 FSL  300 FEL
Proposed Depth/Form:8500 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WSTC , Formation: WASATCH , Order: 479-7 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:4/15/2003
Spud Date:2/9/2003Spud Date Is:ACTUAL
Measured TD:8560 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 348 FSL  294 FEL
Bottom Hole Location:Sec: Twp: Footage: 300 FSL  300 FEL
Log Types:THERMAL MULTIGATE DECAY LOG, CBL
Log Types:THERMAL MULTIGATE DECAY LOG, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1127 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 490, Top: , Bottom: 1127 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8557 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1100, Top: 4050 ft., Bottom: 8557 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
J SAND2382 ft.NN
MESAVERDE4817 ft.NN
CAMEO COAL7533 ft.NN
ROLLINS8453 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/28/2003                 Interval Top: 6868 ft.    Interval Bottom: 8383 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:4/28/2003Choke Size:0.440 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.875 in.Tubing Setting Depth:7740 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/28/2003Test Method:FLOWING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1010
CASING_PRESS 1198
TUBING_PRESS 1019
Perforation Data:
Interval Top:6868 ft.# Of Holes:72
Interval Bottom:8383 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 4/28/2003                 Interval Top: 6868 ft.    Interval Bottom: 8383 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/15/2003
Treatment Summary:3250GAL 7.5% HCL;1183624#20/40SAND;8241BBL GEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:6868 ft.# Of Holes:72
Interval Bottom:8383 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)27
Total Gas Produced (MCF)9795
GOR362777
GOR DeterminationMCFE
Average BOE per Day4.704
Average MCFE per Day27.285

 Federal Financial Assurance  i

 Tribal Well  i No
