COGIS - WELL SCOUT CARD

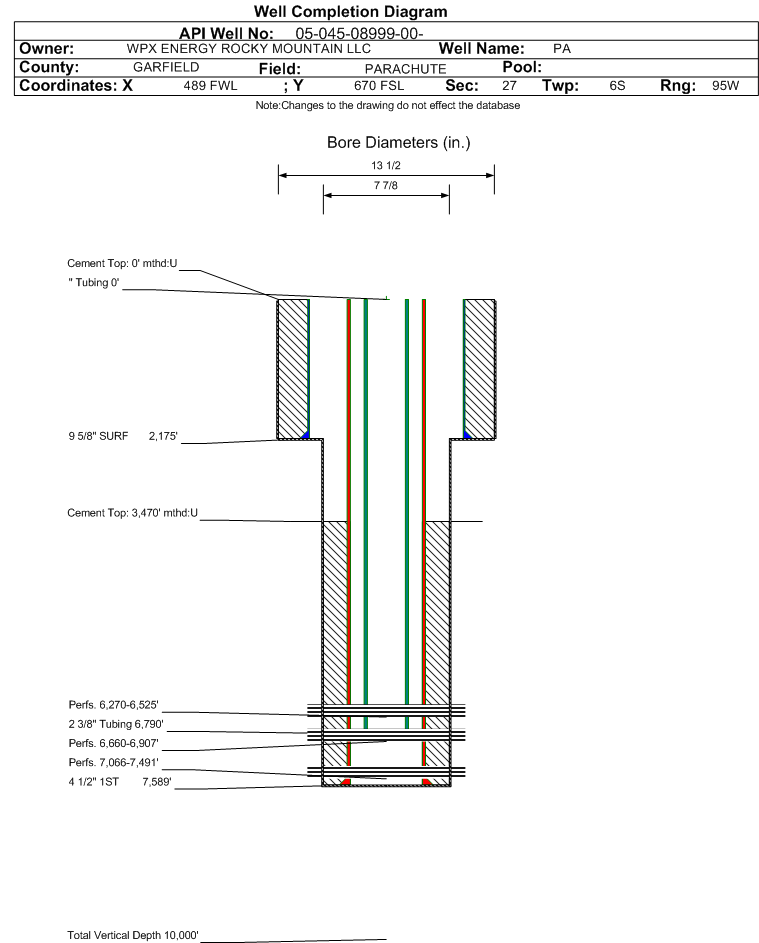

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08999		Well Classification: GW Status: PR - 4/30/2003
Well Name/No:PA #14-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62161
Facility Status:PRStatus Date4/30/2003
FacilityID:265372LocationID:323778
County:GARFIELD #045Location:SWSW 27 6S95W 6
Field:PARACHUTE - #67350Elevation:5485 ft.
Basin:PICEANCE BASIN
Planned Location:670FSL  489 FWLLat/Long: 39.490099 / -107.992113Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.490200 / -107.992109Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/30/2003             Measured TD: 7601 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/30/2003
Wellbore Permit
Permit #:20022230 Expiration Date:12/3/2003
Proposed Depth/Form:7510 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-34 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:3/14/2003
Spud Date:1/26/2003Spud Date Is:ACTUAL
Measured TD:7601 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 328 FSL  1124 FWL
Bottom Hole Location:Sec: Twp: Footage: 345 FSL  1091 FWL
Log Types:COMPENSATED NEUTRON TRIPLE LITHO DENSITY ARRAY INDUCTION/GR, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 2175 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 700, Top: , Bottom: 2175 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7589 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1100, Top: 3470 ft., Bottom: 7589 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH1934 ft.
FORT UNION2288 ft.
MESAVERDE4202 ft.
CAMEO COAL6870 ft.
ROLLINS7568 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 4/30/2003                 Interval Top: 7066 ft.    Interval Bottom: 7491 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/14/2003
Treatment Summary:1,000 GALS 7 1/2% HCL, 144,895# 20/40, 3404 BBLS SLICK WATER.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:7066 ft.# Of Holes:20
Interval Bottom:7491 ft.Hole Size:0.3 in.

Formation WMFKC                   Formation Classification:  GW                   Status:  CM - 4/30/2003                 Interval Top: 6660 ft.    Interval Bottom: 6907 ft.

 Completed Information for Formation WILLIAMS FORK COAL
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/14/2003
Treatment Summary:750 GALS 7 1/2% HCL, 146,956# 20/40, 3,419 BBLS SLICK WATER.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFKC.
Perforation Data:
Interval Top:6660 ft.# Of Holes:18
Interval Bottom:6907 ft.Hole Size:0.3 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/30/2003                 Interval Top: 6270 ft.    Interval Bottom: 6525 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:4/30/2003Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/14/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6790 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/30/2003Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1525
CASING_PRESS 1782
TUBING_PRESS 1662
Perforation Data:
Interval Top:6270 ft.# Of Holes:19
Interval Bottom:6525 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)13680
GOR855000
GOR DeterminationMCFE
Average BOE per Day6.499
Average MCFE per Day37.731

 Federal Financial Assurance  i

 Tribal Well  i No
