Wellbore #00 Wellbore Classification: GW Status: PR - 2/9/2026 Measured TD: 7463 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/9/2026 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20022232 | Expiration Date: | 12/3/2003 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1035 FSL 893 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1098 FSL 892 FWL | | Proposed Depth/Form: | 7590 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-34 , Unit Acreage: 320, Drill Unit: S/2 | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 2175 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 750, Top: 0 ft., Bottom: 2175 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7463 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1050, Top: 3100 ft., Bottom: 7463 ft. |
| | |
| Wellbore Completed | | Completion Date: | 3/14/2003 | | Spud Date: | 2/20/2003 | Spud Date Is: | PLANNED | | Measured TD: | 7463 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 0 FL 0 FL | | Log Types: | PLATFORM EXPRESS ARRAY INDUCTION/GR COMPENSATED NEUTRON-LITHODENSITY, CBL. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2175 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 750, Top: 0 ft., Bottom: 2175 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7463 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1050, Top: 3100 ft., Bottom: 7463 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 1937 ft. | | | | | FORT UNION | 2293 ft. | | | | | MESAVERDE | 4213 ft. | | | | | CAMEO | 6917 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 2/9/2026 Interval Top: 5640 ft. Interval Bottom: 7386 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/30/2003 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 3/14/2003 | | Treatment Summary: | 6726-7017'19 HOLES;750 GAL 7 1/2% HCL,139531#20/40,3319 BBL SLICK WTR.;
5640-5864';750 GAL 7 1/2% HCL,137097#20/40,3197 BBL SLICK WTR
750 GAL 7 1/2% HCL,139531#20/40, 3319 BBL SLICK WATER |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WFCM. |

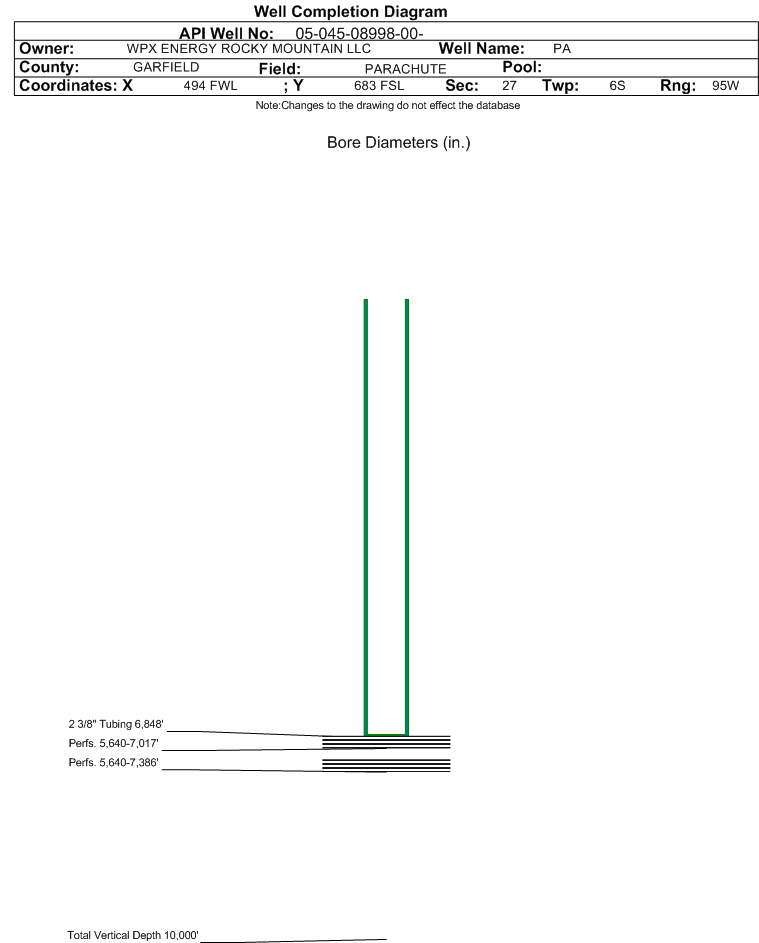

| | Perforation Data: | | Interval Top: | 5640 ft. | # Of Holes: | 48 | | Interval Bottom: | 7386 ft. | Hole Size: | 0.34 in. |
|
Formation WMFK Formation Classification: GW Status: CM - 3/14/2003 Interval Top: 5640 ft. Interval Bottom: 7017 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 3/14/2003 | Choke Size: | 0.200 in. | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 3/14/2003 | | Treatment Summary: | 6726-7017'19 HOLES;750 GAL 7 1/2% HCL,139531#20/40,3319 BBL SLICK WTR.;5640-5864';750 GAL 7 1/2% HCL,137097#20/40,3197 BBL SLICK WTR. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | Perforation Data: | | Interval Top: | 5640 ft. | # Of Holes: | | | Interval Bottom: | 7017 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 12 |
| Total Gas Produced (MCF) | 10118 |
| GOR | 843166 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.815 |
| Average MCFE per Day | 27.923 |
| Federal Financial Assurance | i | |
|
|
