COGIS

Facility Detail

COGIS - WELL SCOUT CARD

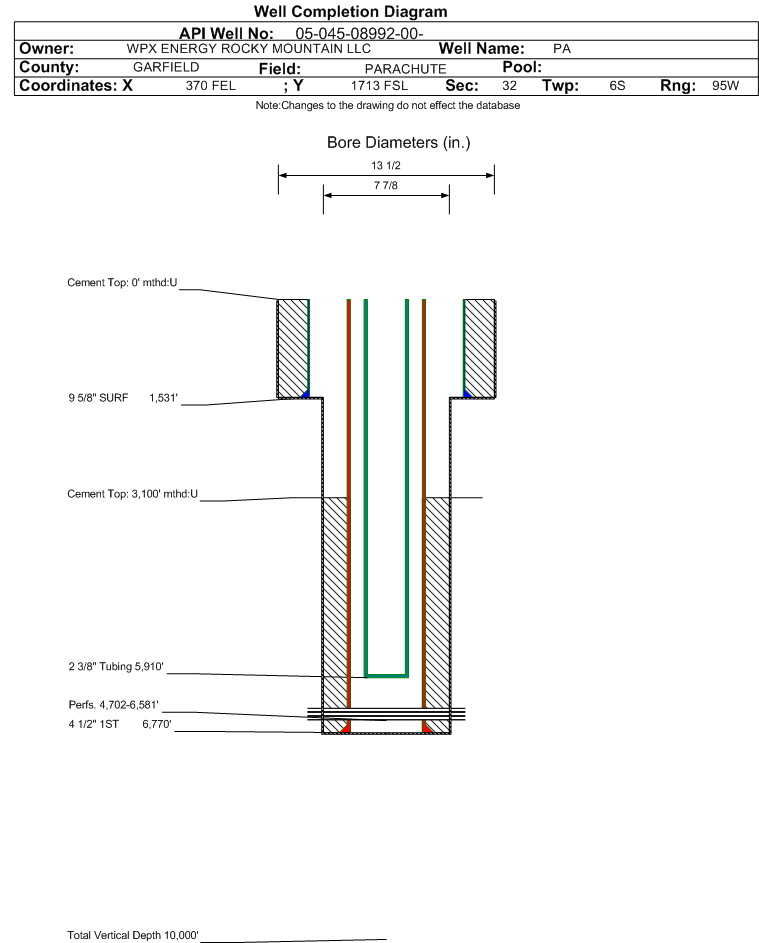

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08992		Well Classification: GW Status: PR - 1/26/2003
Well Name/No:PA #343-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/26/2003
FacilityID:265279LocationID:324215
County:GARFIELD #045Location:NESE 32 6S95W 6
Field:PARACHUTE - #67350Elevation:5179 ft.
Basin:PICEANCE BASIN
Planned Location:1713FSL  370 FELLat/Long: 39.478489 / -108.013733Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.478521 / -108.013702Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/26/2003             Measured TD: 6773 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/26/2003
Wellbore Permit
Permit #:200022047 Expiration Date:11/18/2003
Proposed Depth/Form:6850 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-19 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:1/7/2003
Spud Date:12/3/2002Spud Date Is:ACTUAL
Measured TD:6773 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DIL-GR-SP; NEU DEN LOG; GAMMA RAY, C B L
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1531 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 541, Top: , Bottom: 1530 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6770 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 821, Top: 3100 ft., Bottom: 6770 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1303 ft.NN
FORT UNION1612 ft.NN
MESAVERDE3354 ft.NN
CAMEO COAL5837 ft.NN
ROLLINS6652 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/26/2003                 Interval Top: 4702 ft.    Interval Bottom: 6581 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:1/7/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5910 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/26/2003Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1355
CASING_PRESS 1607
TUBING_PRESS 1517
Perforation Data:
Interval Top:4702 ft.# Of Holes:102
Interval Bottom:6581 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)15022
GOR790631
GOR DeterminationMCFE
Average BOE per Day7.149
Average MCFE per Day41.473

 Federal Financial Assurance  i

 Tribal Well  i No
