COGIS - WELL SCOUT CARD

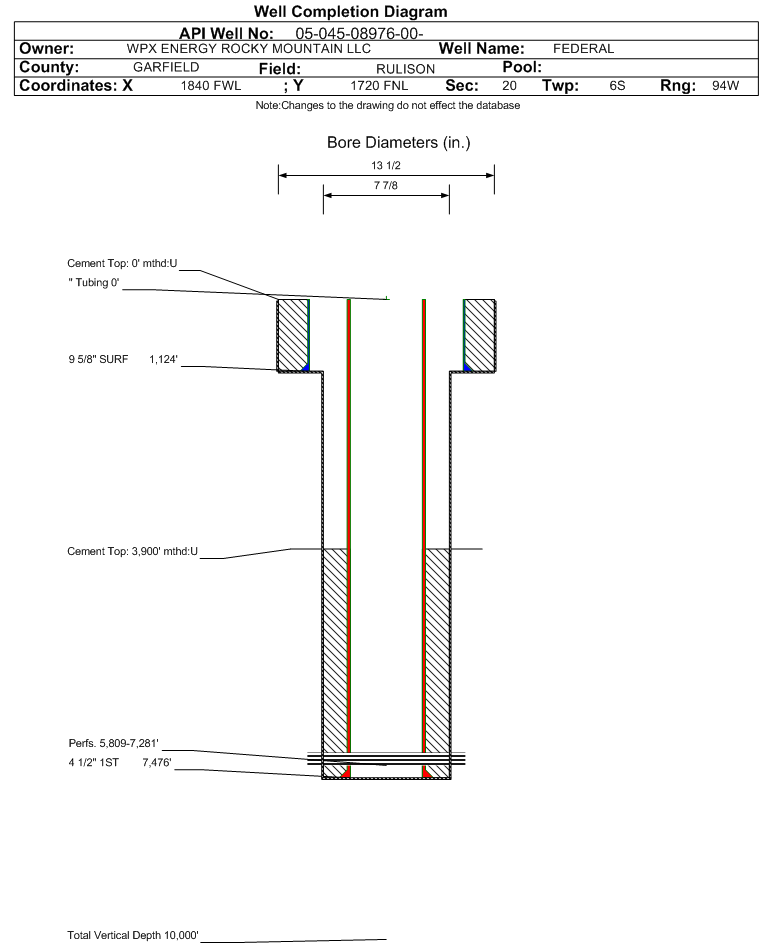

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08976		Well Classification: GW Status: PR - 3/21/2003
Well Name/No:FEDERAL #RWF 322-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COGJO2
Facility Status:PRStatus Date3/21/2003
FacilityID:265020LocationID:335381
County:GARFIELD #045Location:NWNW 20 6S94W 6
Field:RULISON - #75400Elevation:5579 ft.
Basin:PICEANCE BASIN
Planned Location:1136FNL  1017 FWLLat/Long: 39.514556 / -107.917619Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.514612 / -107.917664Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/21/2003             Measured TD: 7480 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/21/2003
Wellbore PermitDIRECTIONAL
Permit #:20021925 Expiration Date:10/21/2003
Proposed Top PZ Location:Sec: Twp: Footage: 1583 FNL  1705 FWL
Bottom Hole Location:Sec: Twp: Footage: 1600 FNL  1700 FWL
Proposed Depth/Form:8170 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:2/18/2003
Spud Date:1/10/2003Spud Date Is:ACTUAL
Measured TD:7480 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1583 FNL  1705 FWL
Bottom Hole Location:Sec: Twp: Footage: 1600 FNL  1700 FWL
Log Types:CASED HOLE THERMAL MULTIGATE DECAY LITHOLOGY AND GAMMA RAY, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1124 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 490, Top: , Bottom: 1124 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7476 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 790, Top: 3900 ft., Bottom: 7476 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
J SAND2069 ft.NN
MESAVERDE4619 ft.NN
CAMEO COAL7289 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 3/21/2003                 Interval Top: 5809 ft.    Interval Bottom: 7281 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.470 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/18/2003
Treatment Summary:see doc #01209167
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/21/2003Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 2300
MCF_GAS 2100
TUBING_PRESS 2300
Perforation Data:
Interval Top:5809 ft.# Of Holes:92
Interval Bottom:7281 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)7148
GOR420470
GOR DeterminationMCFE
Average BOE per Day3.422
Average MCFE per Day19.860

 Federal Financial Assurance  i

 Tribal Well  i No
