COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08967		Well Classification: OW Status: PR - 3/10/2003
Well Name/No:RADER #GM 23-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/10/2003
FacilityID:264954LocationID:334646
Municipality/County:PARACHUTE / GARFIELD #045Location:NWSW 12 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5202 ft.
Basin:PICEANCE BASIN
Planned Location:1735FSL  901 FWLLat/Long: 39.449489 / -108.064785Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.449638 / -108.065015Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 3/10/2003             Measured TD: 6273 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 3/10/2003
Wellbore PermitDIRECTIONAL
Permit #:20021741 Expiration Date:9/12/2003
Proposed Top PZ Location:Sec: Twp: Footage: 2178 FSL  1808 FWL
Bottom Hole Location:Sec: Twp: Footage: 2225 FSL  1870 FWL
Proposed Depth/Form:6220 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-10 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:2/20/2003
Spud Date:1/21/2003Spud Date Is:ACTUAL
Measured TD:6273 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2178 FSL  1808 FWL
Bottom Hole Location:Sec: Twp: Footage: 2225 FSL  1870 FWL
Log Types:DUAL IND.SPECTRAL DENSITY DUAL SPACED NEU. C B L

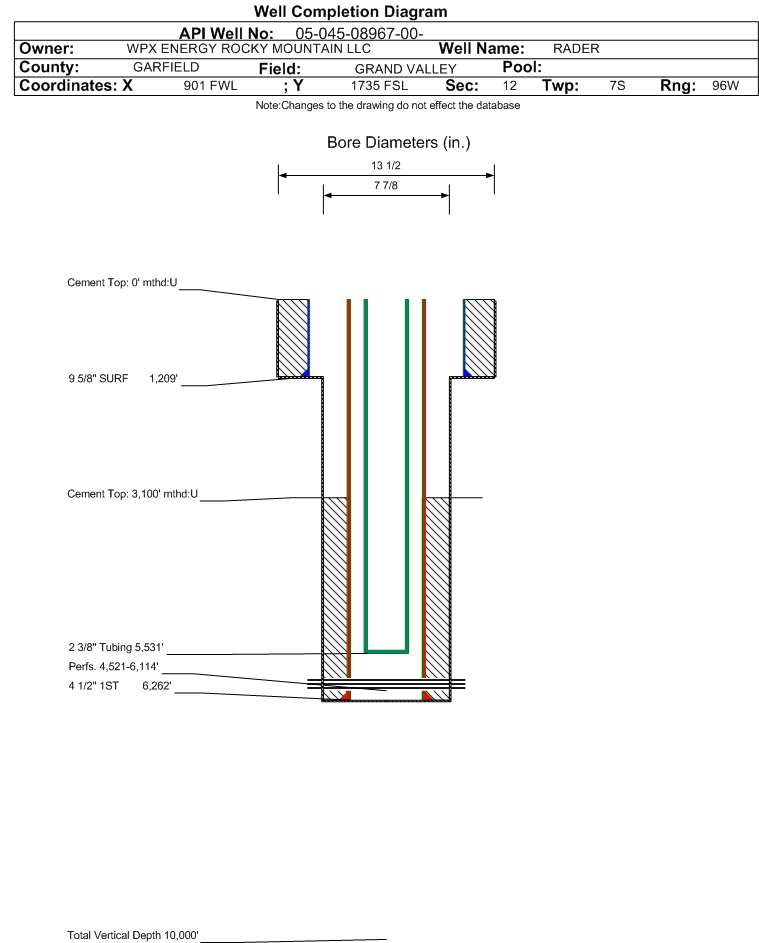

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1209 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 470, Top: 0 ft., Bottom: 1208 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6262 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 710, Top: 3100 ft., Bottom: 6262 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1316 ft.NN
FORT UNION1616 ft.NN
MESAVERDE3141 ft.NN
CAMEO COAL5739 ft.NN
ROLLINS6203 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 3/10/2003                 Interval Top: 4521 ft.    Interval Bottom: 6114 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/20/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5531 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/10/2003Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1627
CASING_PRESS 1746
TUBING_PRESS 1649
Perforation Data:
Interval Top:4521 ft.# Of Holes:72
Interval Bottom:6114 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)20
Total Gas Produced (MCF)11917
GOR595850
GOR DeterminationMCFE
Average BOE per Day5.683
Average MCFE per Day32.967

 Federal Financial Assurance  i

 Tribal Well  i No
