COGIS - WELL SCOUT CARD

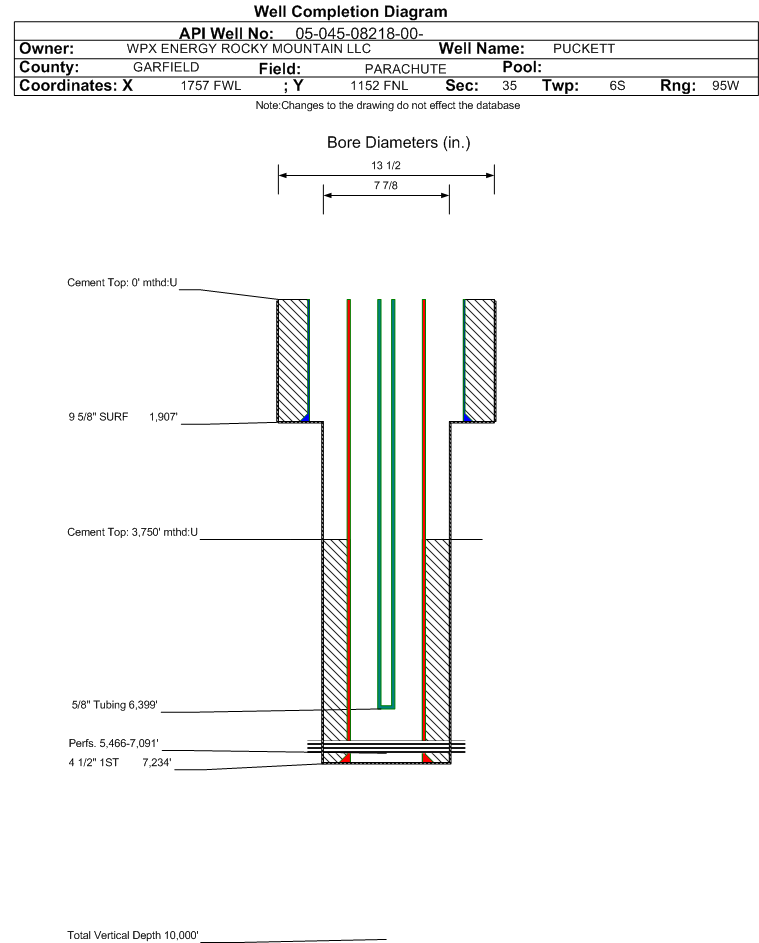

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08218		Well Classification: GW Status: PR - 9/29/2003
Well Name/No:PUCKETT #PA 21-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/29/2003
FacilityID:264437LocationID:335072
County:GARFIELD #045Location:NENW 35 6S95W 6
Field:PARACHUTE - #67350Elevation:5167 ft.
Basin:PICEANCE BASIN
Planned Location:1152FNL  1757 FWLLat/Long: 39.485319 / -107.969122Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.485286 / -107.969007Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/29/2003             Measured TD: 7240 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/29/2003
Wellbore Permit
Permit #:20021370 Expiration Date:8/15/2003
Proposed Depth/Form:7290 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-16 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:9/11/2003
Spud Date:8/7/2003Spud Date Is:ACTUAL
Measured TD:7240 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:HIGH RES IND.SPECTRAL DEN.DUAL SPACED NEUTRON,CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1907 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 825, Top: , Bottom: 1907 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7234 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 920, Top: 3750 ft., Bottom: 7234 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G1706 ft.NN
FORT UNION2061 ft.NN
MESAVERDE3945 ft.NN
CAMEO6729 ft.NN
ROLLINS7411 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/29/2003                 Interval Top: 5466 ft.    Interval Bottom: 7091 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/11/2003
Treatment Summary:
Tubing Size:0.6666667 in.Tubing Setting Depth:6399 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/29/2003Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1295
CASING_PRESS 1689
TUBING_PRESS 1553
Perforation Data:
Interval Top:5466 ft.# Of Holes:69
Interval Bottom:7091 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)9645
GOR803750
GOR DeterminationMCFE
Average BOE per Day4.596
Average MCFE per Day26.630

 Federal Financial Assurance  i

 Tribal Well  i No
