COGIS - WELL SCOUT CARD

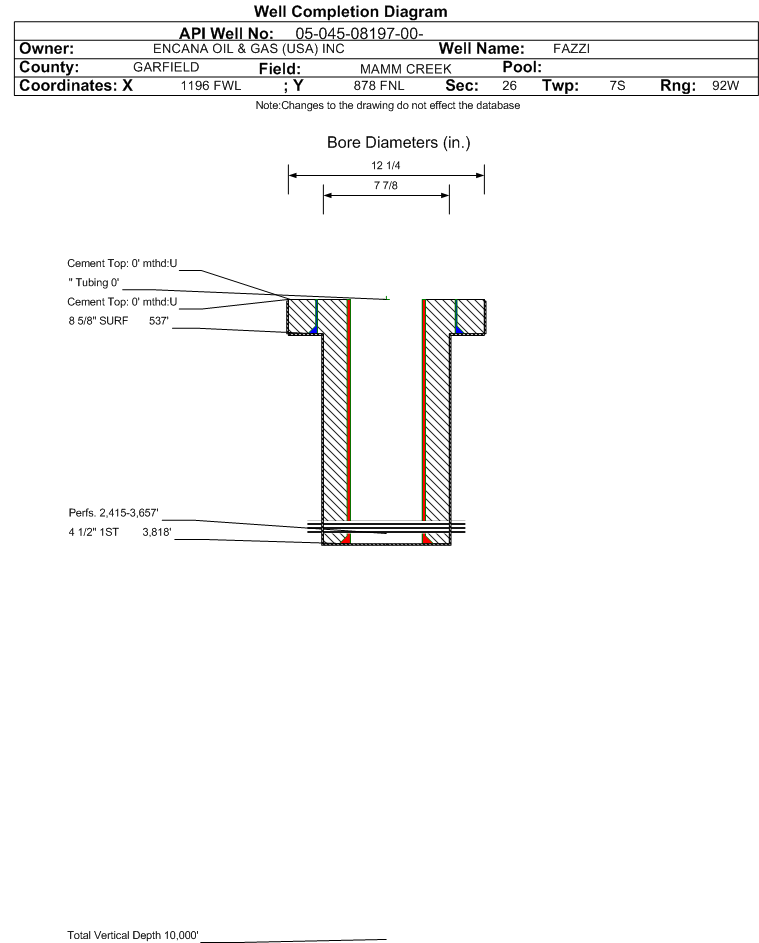

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08197		Well Classification: GW Status: PA - 8/4/2015
Well Name/No:FAZZI #26-4D1 (D26)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:ENCANA OIL & GAS (USA) INC - 100185
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/4/2015
FacilityID:264284LocationID:324197
County:GARFIELD #045Location:NWNW 26 7S92W 6
Field:MAMM CREEK - #52500Elevation:6338 ft.
Basin:PICEANCE BASIN
Planned Location:878FNL  1196 FWLLat/Long: 39.422852 / -107.639092Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.422980 / -107.639180Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 8/4/2015             Measured TD: 3818 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 8/4/2015
Wellbore Permit
Permit #:20021436 Expiration Date:7/28/2003
Proposed Depth/Form:5500 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA Unit Number:COC 55279X
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 550 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 378, Top: 0 ft., Bottom: 550 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5500 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 798, Top: 1500 ft., Bottom: 5500 ft.
Wellbore Completed
Completion Date:4/20/2003
Spud Date:9/1/2002Spud Date Is:ACTUAL
Measured TD:3818 ft.Measured PB depth:1610 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL
Log Types:CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 537 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 120, Top: 0 ft., Bottom: 537 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 3818 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 700, Top: 0 ft., Bottom: 3818 ft., Determination Method: CBL
Additional Cement:String Type: S.C. 1.1 , Top: , Depth: 1590 ft., Bottom: , Sacks: 375, Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.1766 ft.
WILLIAMS FORK1766 ft.3818 ft.

Formation WMFK                     Formation Classification:  OW                     Status:  AB - 8/4/2015                  Interval Top: 2415 ft.    Interval Bottom: 3657 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:2/7/2004Choke Size:
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:4/21/2005
Treatment Summary:SET CBP @ 1610'
Formation Treatment
Treatment Date:4/30/2003
Treatment Summary:STAGE 1:ACID BALLOUT, 3567-3657 18 HOLES .31" NO FRAC; STAGE 2:ACID BALLOUT 3491-3510 20 HOLES .31" 2150 BBL KCL SLICKWATER, 89880# 20/40 SAND. STAGE 3:ACID BALLOUT 3083-3249 20 HOLES .31" 3007 BBL KCL SLICKWATER 141100# 20/40 SAND. STAGE 4:ACID- CONT'D
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 750
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 750
CALC_BBLS_OIL 1
CALC_GOR 245
CALC_MCF_GAS 245
CASING_PRESS 1000
MCF_GAS 245
TUBING_PRESS 250
Perforation Data:
Interval Top:2415 ft.# Of Holes:70
Interval Bottom:3657 ft.Hole Size:0.31 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/04/2015
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
