COGIS - WELL SCOUT CARD

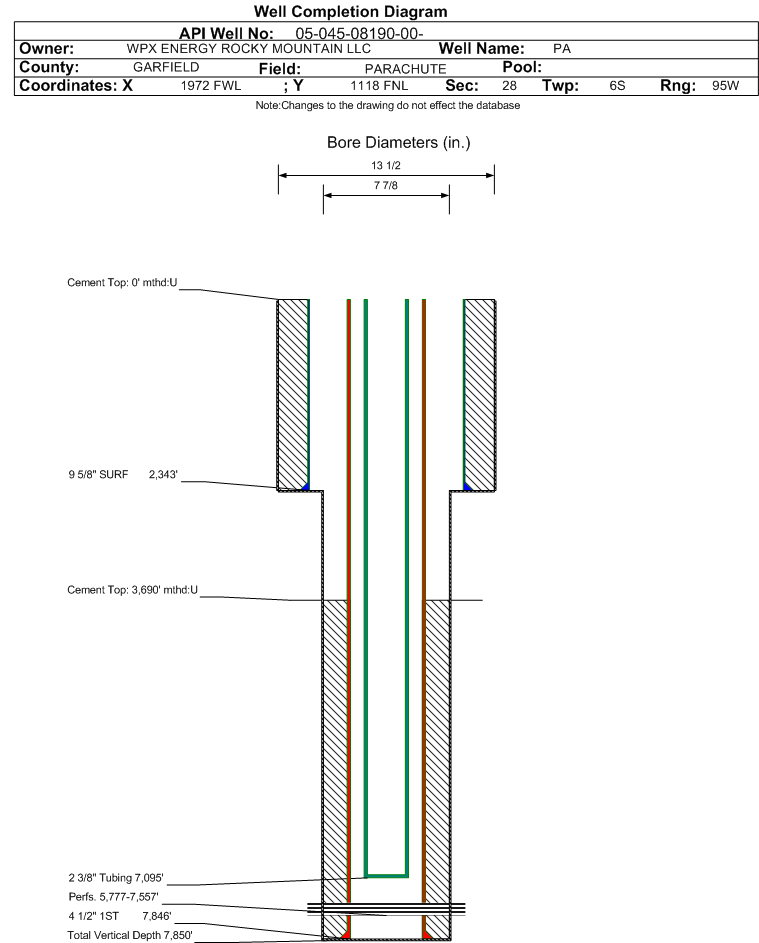

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08190		Well Classification: GW Status: PR - 8/29/2005
Well Name/No:PA #321-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 67447
Facility Status:PRStatus Date8/29/2005
FacilityID:264239LocationID:335229
County:GARFIELD #045Location:NENW 28 6S95W 6
Field:PARACHUTE - #67350Elevation:5604 ft.
Basin:PICEANCE BASIN
Planned Location:1118FNL  1972 FWLLat/Long: 39.499379 / -108.005333Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.499426 / -108.005295Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/29/2005             Measured TD: 7865 ft.    Vertical TD: 7850 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/29/2005
Wellbore PermitDIRECTIONAL
Permit #:20042663 Expiration Date:11/22/2005
Proposed Top PZ Location:Sec: Twp: Footage: 461 FNL  2384 FWL
Bottom Hole Location:Sec: Twp: Footage: 450 FNL  2365 FWL
Proposed Depth/Form:7896 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:7/12/2005
Spud Date:5/22/2005Spud Date Is:ACTUAL
Measured TD:7865 ft.Measured PB depth:7720 ft.
True Vertical TD:7850 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 772 FNL  1973 FWL
Bottom Hole Location:Sec: Twp: Footage: 450 FNL  2365 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE; C B L
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2343 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 620, Top: 0 ft., Bottom: 2343 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7846 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 866, Top: 3690 ft., Bottom: 7845 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G2138 ft.NN
FORT UNION2497 ft.NN
MESAVERDE4384 ft.NN
CAMEO7084 ft.NN
ROLLINS7773 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/29/2005                 Interval Top: 5777 ft.    Interval Bottom: 7557 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/12/2005
Treatment Summary:3750 GALS 7 1/2% HCL, 606100# 30/50, 14463 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:7095 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/2/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1003
CASING_PRESS 1256
MCF_GAS 1003
TUBING_PRESS 1145
Perforation Data:
Interval Top:5777 ft.# Of Holes:113
Interval Bottom:7557 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)22
Total Gas Produced (MCF)8959
GOR407227
GOR DeterminationMCFE
Average BOE per Day4.287
Average MCFE per Day24.897

 Federal Financial Assurance  i

 Tribal Well  i No
