COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08188		Well Classification: GW Status: PR - 9/6/2002
Well Name/No:PUCKETT #PA 334-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/6/2002
FacilityID:264172LocationID:334701
County:GARFIELD #045Location:SWSE 34 6S95W 6
Field:PARACHUTE - #67350Elevation:5139 ft.
Basin:PICEANCE BASIN
Planned Location:1130FSL  1516 FELLat/Long: 39.476939 / -107.980712Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.476561 / -107.980545Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/6/2002             Measured TD: 6945 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/6/2002
Wellbore Permit
Permit #:20021219 Expiration Date:7/7/2003
Proposed Depth/Form:7000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-19 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:8/24/2002
Spud Date:7/21/2002Spud Date Is:ACTUAL
Measured TD:6945 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DIL-GR-SP,NEUTRON DENSITY,CBL

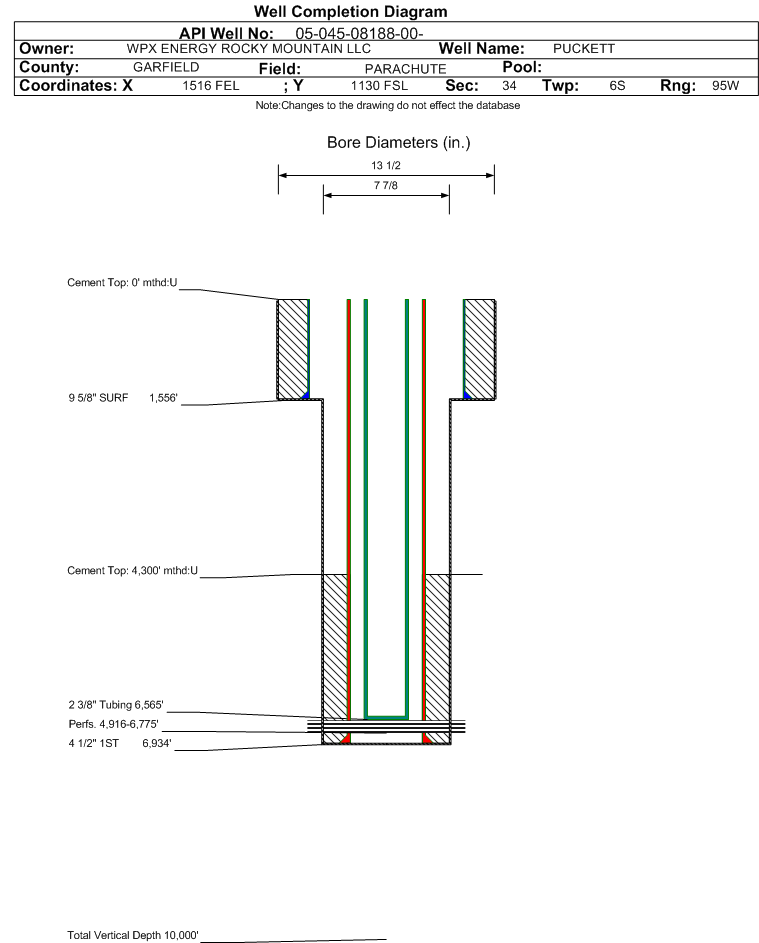

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1556 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 620, Top: , Bottom: 1556 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6934 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 820, Top: 4300 ft., Bottom: 6934 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1356 ft.NN
FORT UNION1768 ft.NN
MESAVERDE3555 ft.NN
CAMEO COAL6181 ft.NN
ROLLINS6865 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/6/2002                  Interval Top: 4916 ft.    Interval Bottom: 6775 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/24/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6565 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/6/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1461
CASING_PRESS 1559
MCF_GAS 1461
TUBING_PRESS 1418
Perforation Data:
Interval Top:4916 ft.# Of Holes:92
Interval Bottom:6775 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)20
Total Gas Produced (MCF)15550
GOR777500
GOR DeterminationMCFE
Average BOE per Day7.401
Average MCFE per Day42.937

 Federal Financial Assurance  i

 Tribal Well  i No
