COGIS - WELL SCOUT CARD

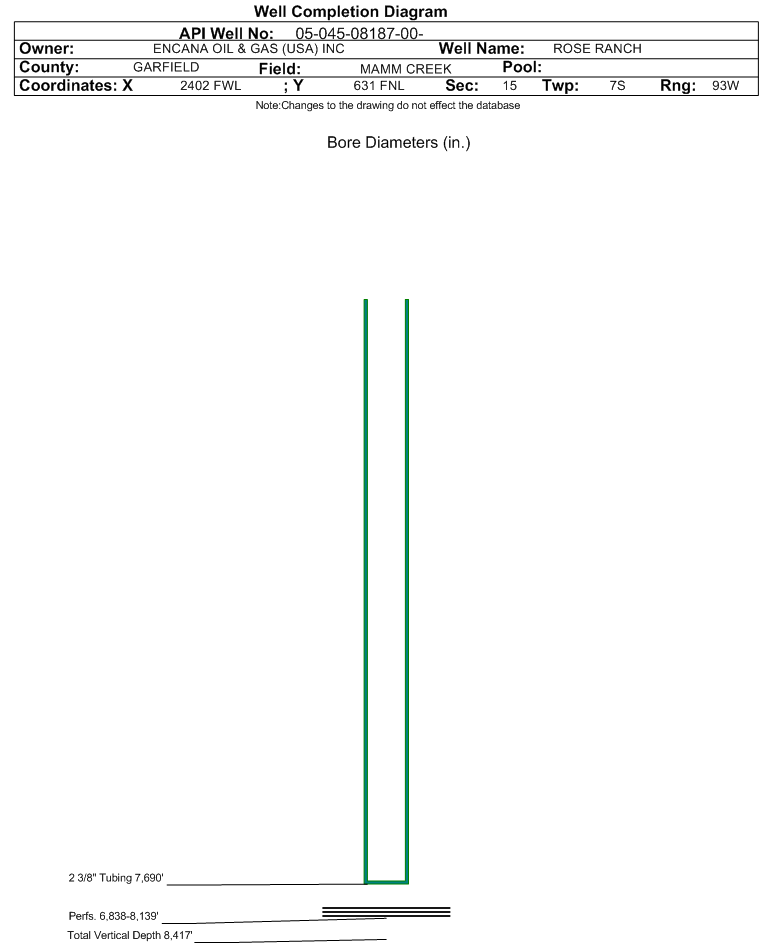

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08187		Well Classification: GW Status: PR - 4/17/2003
Well Name/No:ROSE RANCH #15-3A (C15)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/17/2003
FacilityID:264154LocationID:334582
County:GARFIELD #045Location:NENW 15 7S93W 6
Field:MAMM CREEK - #52500Elevation:6994 ft.
Basin:PICEANCE BASIN
Planned Location:631FNL  2402 FWLLat/Long: 39.450981 / -107.761316Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.451140 / -107.761370Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/17/2003             Measured TD: 8450 ft.    Vertical TD: 8417 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/17/2003
Wellbore PermitDIRECTIONAL
Permit #:20021247 Expiration Date:7/1/2003
Proposed Top PZ Location:Sec:15 Twp: 7S 93W Footage: 33 FNL  2637 FWL
Bottom Hole Location:Sec:15 Twp: 7S 93W Footage: 10 FNL  2640 FWL
Proposed Depth/Form:9100 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA Unit Number:COC 55279X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 950 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 653, Top: 0 ft., Bottom: 950 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 9500 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 1436, Top: 1500 ft., Bottom: 9500 ft.
Wellbore Completed
Completion Date:4/16/2003
Spud Date:1/27/2003Spud Date Is:ACTUAL
Measured TD:8450 ft.Measured PB depth:
True Vertical TD:8417 ft.True Vertical PB depth:8390 ft.
Top PZ Location:Sec:15 Twp: 7S 93WFootage: 33 FNL  2637 FWL
Bottom Hole Location:Sec:15 Twp: 7S 93WFootage: 10 FNL  2640 FWL
Log Types:CBL/GR/CCL/CM,AI/LC/GR, CN/TLD/GR
FormationInterval TopLog BottomCoredDSTs
WARSAW-OSAGE-ST JOE-ABCK5885 ft.NN
WILLIAMS FORK5886 ft.8450 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 4/17/2003                 Interval Top: 6838 ft.    Interval Bottom: 8139 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/16/2003
Treatment Summary:SEE SCANNED DOC# 1157986
Tubing Size:2.375 in.Tubing Setting Depth:7690 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/17/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 1
CALC_BBLS_H2O 1
CALC_BBLS_OIL 1
CALC_GOR 2588
CALC_MCF_GAS 2588
CASING_PRESS 273
MCF_GAS 2588
TUBING_PRESS 558
Perforation Data:
Interval Top:6838 ft.# Of Holes:74
Interval Bottom:8139 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)34
Total Gas Produced (MCF)15112
GOR444470
GOR DeterminationMCFE
Average BOE per Day7.231
Average MCFE per Day41.934

 Federal Financial Assurance  i Y

 Tribal Well  i No
