Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2003 Measured TD: 7450 ft. Vertical TD: 7450 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/1/2003 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20021065 | Expiration Date: | 6/24/2003 | | Proposed Top PZ Location: | Sec:19 Twp: 7S 92W | Footage: 572 FNL 1001 FEL | | Bottom Hole Location: | Sec:19 Twp: 7S 92W | Footage: 330 FNL 990 FEL | | Proposed Depth/Form: | 8400 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | HUNTER MESA | Unit Number: | COC 55972X | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: |
| | |

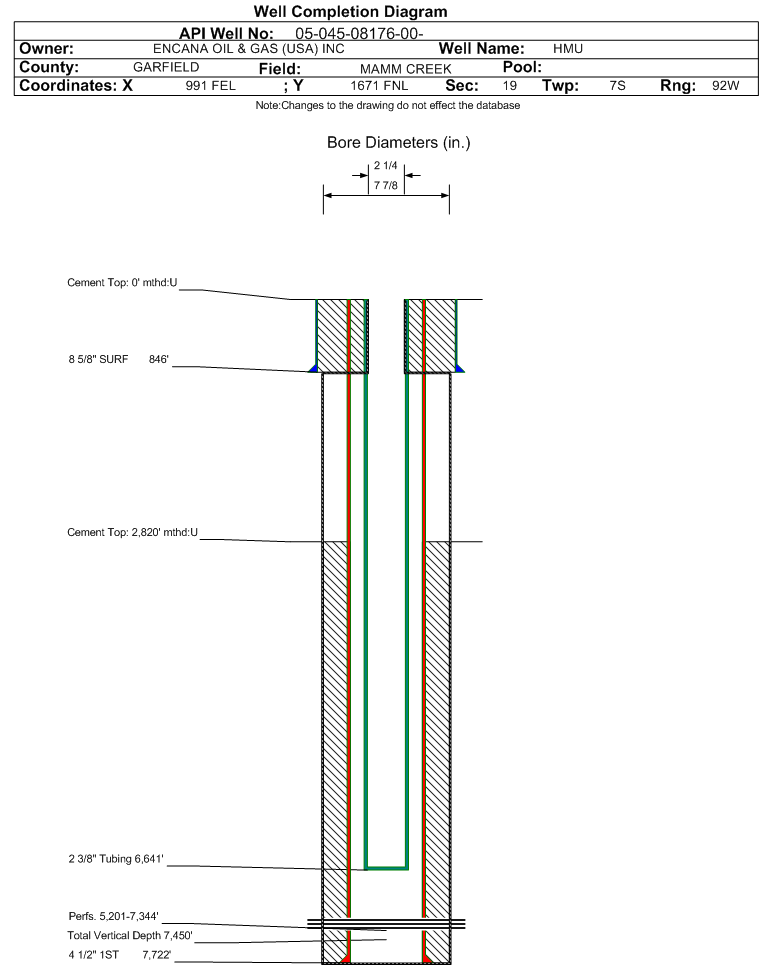

| Wellbore Completed | | Completion Date: | 10/12/2003 | | Spud Date: | 1/12/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 7450 ft. | Measured PB depth: | 0 ft. | | True Vertical TD: | 7450 ft. | True Vertical PB depth: | 7656 ft. | | Top PZ Location: | Sec: Twp: | Footage: FL FL | | Bottom Hole Location: | Sec: Twp: | Footage: FL FL | | Log Types: | CBL, RST | | Casing: | String Type: SURF, Hole Size: 2.25 in., Size: 8.625 in., Top: 0 ft., Depth: 846 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 450, Top: 0 ft., Bottom: 846 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7722 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1065, Top: 2820 ft., Bottom: 7722 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4375 ft. | N | N | | WILLIAMS FORK | 4376 ft. | 7389 ft. | N | N | | ROLLINS | 7390 ft. | 7725 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 5/1/2003 Interval Top: 5201 ft. Interval Bottom: 7344 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/12/2003 | | Treatment Summary: | STAGE 1: ACID BALLOUT,7010-7344,22-0.340" SHOTS, 5013 BBLS OF SLICKWATER,227540# 20-40 SAND, STAGE 2: ACID BALLOUT,6728-6969,20-0.34" SHOTS, 2677 BBLS OF SLICKWATER, 105000# 20-40 SAND, STAGE 3: ACID BALLOUT, 6392-6651,22-0.340" SHOTS, 2584 BBLS OF (CONT) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6641 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/1/2003 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 420 | | BBLS_OIL | 1 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 420 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 2536 | | CALC_MCF_GAS | 2536 | | CASING_PRESS | 1588 | | MCF_GAS | 2536 | | TUBING_PRESS | 1041 |
| | Perforation Data: | | Interval Top: | 5201 ft. | # Of Holes: | 142 | | Interval Bottom: | 7344 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 57 |
| Total Gas Produced (MCF) | 34183 |
| GOR | 599701 |
| GOR Determination | MCFE |
| Average BOE per Day | 16.275 |
| Average MCFE per Day | 94.395 |
| Federal Financial Assurance | i | Y |
|
|
