COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08172		Well Classification: GW Status: PR - 4/1/2021
Well Name/No:GMR #34-12A (N34)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/1/2021
FacilityID:264019LocationID:334661
County:GARFIELD #045Location:SWSW 34 6S93W 6
Field:MAMM CREEK - #52500Elevation:6704 ft.
Basin:PICEANCE BASIN
Planned Location:1288FSL  1328 FWLLat/Long: 39.478930 / -107.765936Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.479100 / -107.766010Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/1/2021             Measured TD: 9074 ft.    Vertical TD: 8893 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/1/2021
Wellbore PermitDIRECTIONAL
Permit #:20021002 Expiration Date:6/17/2003
Proposed Top PZ Location:Sec:34 Twp: 6S 93W Footage: 1324 FWL  2632 FSL
Bottom Hole Location:Sec:34 Twp: 6S 93W Footage: 2640 FNL  1320 FWL
Proposed Depth/Form:9500 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC 56608X
Formation And Spacing:Code: CZ-CR , Formation: COZZETTE-CORCORAN , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/14/2003
Spud Date:5/27/2003Spud Date Is:ACTUAL
Measured TD:9074 ft.Measured PB depth:
True Vertical TD:8893 ft.True Vertical PB depth:8868 ft.
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:CBL / GR / CCL, PE / AL / GR

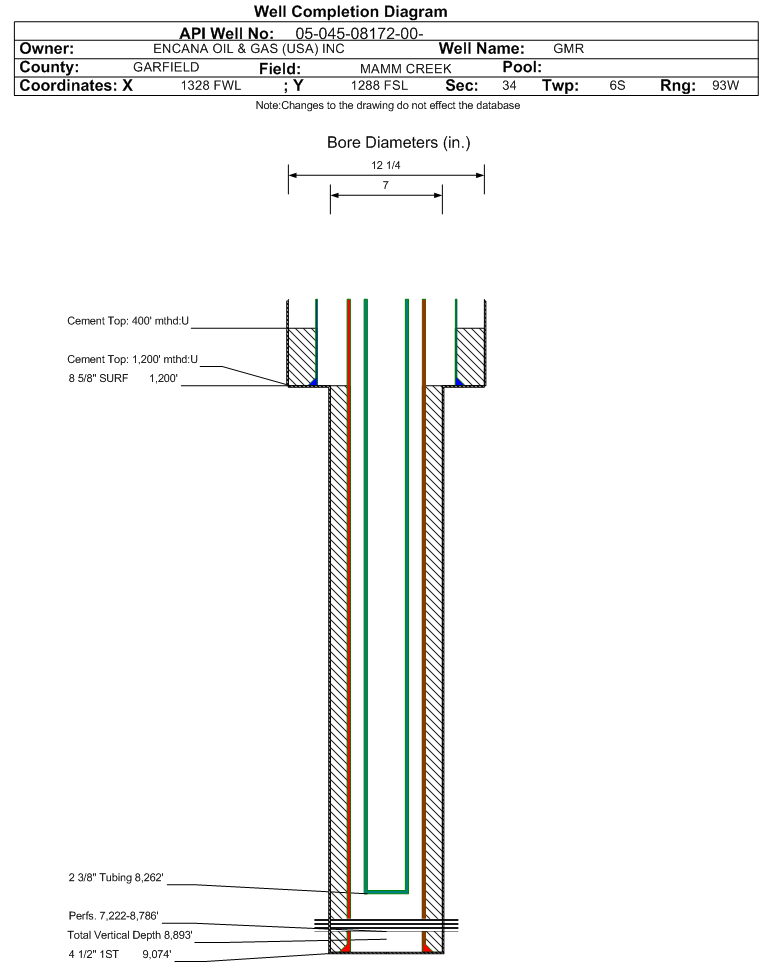

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1200 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 625, Top: 400 ft., Bottom: 1200 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7 in., Size: 4.5 in., Top: 0 ft., Depth: 9074 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1223, Top: 1200 ft., Bottom: 9074 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.6087 ft.NN
WILLIAMS FORK6088 ft.9074 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 4/1/2021                  Interval Top: 7222 ft.    Interval Bottom: 8786 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/14/2003
Treatment Summary:SEE SCANNED DOC# 1157730
Tubing Size:2.375 in.Tubing Setting Depth:8262 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/15/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 144
BBLS_OIL 27
BTU_GAS 1170
CALC_BBLS_H2O 144
CALC_BBLS_OIL 27
CALC_GOR 74
CALC_MCF_GAS 1998
CASING_PRESS 1750
MCF_GAS 1997
TUBING_PRESS 1550
Perforation Data:
Interval Top:7222 ft.# Of Holes:68
Interval Bottom:8786 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)26
Total Gas Produced (MCF)7272
GOR279692
GOR DeterminationMCFE
Average BOE per Day3.513
Average MCFE per Day20.360

 Federal Financial Assurance  i Y

 Tribal Well  i No
