COGIS - WELL SCOUT CARD

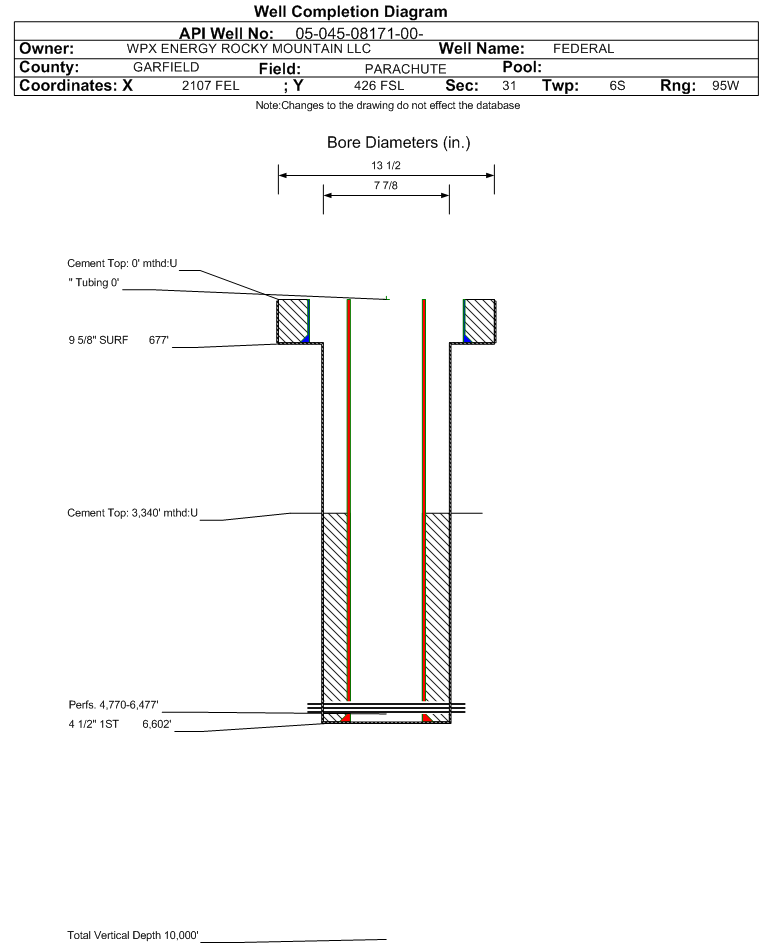

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08171		Well Classification: GW Status: PR - 2/12/2003
Well Name/No:FEDERAL #PA 34-31
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62737
Facility Status:PRStatus Date2/12/2003
FacilityID:264011LocationID:334917
County:GARFIELD #045Location:SWSE 31 6S95W 6
Field:PARACHUTE - #67350Elevation:5238 ft.
Basin:PICEANCE BASIN
Planned Location:426FSL  2107 FELLat/Long: 39.475229 / -108.038584Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.475152 / -108.038592Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/12/2003             Measured TD: 6610 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/12/2003
Wellbore Permit
Permit #:20021165 Expiration Date:6/17/2003
Proposed Depth/Form:6740 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: E/2
Wellbore Completed
Completion Date:1/13/2003
Spud Date:12/13/2002Spud Date Is:ACTUAL
Measured TD:6610 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL - GR - SP; NEUTRON DENSITY; GAMMA RAY, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 677 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 677 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6602 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 775, Top: 3340 ft., Bottom: 6601 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1513 ft.NN
FORT UNION1823 ft.NN
MESAVERDE3494 ft.NN
CAMEO COAL6007 ft.NN
ROLLINS6577 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/12/2003                 Interval Top: 4770 ft.    Interval Bottom: 6477 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:1/13/2003
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/12/2003Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1528
CASING_PRESS 1675
TUBING_PRESS 1563
Perforation Data:
Interval Top:4770 ft.# Of Holes:76
Interval Bottom:6477 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)8886
GOR740500
GOR DeterminationMCFE
Average BOE per Day4.231
Average MCFE per Day24.547

 Federal Financial Assurance  i Y

 Tribal Well  i No
