COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08169		Well Classification: GW Status: PR - 6/5/2002
Well Name/No:FEDERAL #PA 344-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/5/2002
FacilityID:263980LocationID:335403
County:GARFIELD #045Location:SESE 27 6S95W 6
Field:PARACHUTE - #67350Elevation:5469 ft.
Basin:PICEANCE BASIN
Planned Location:745FSL  319 FELLat/Long: 39.490459 / -107.976502Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.490582 / -107.976609Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/5/2002             Measured TD: 7864 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/5/2002
Wellbore Permit
Permit #:20021144 Expiration Date:6/12/2003
Proposed Depth/Form:7730 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:12/13/2002
Spud Date:11/9/2002Spud Date Is:ACTUAL
Measured TD:7864 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:CASED HOLE NEUTRON DENSITY; GAMMA RAY, CBL

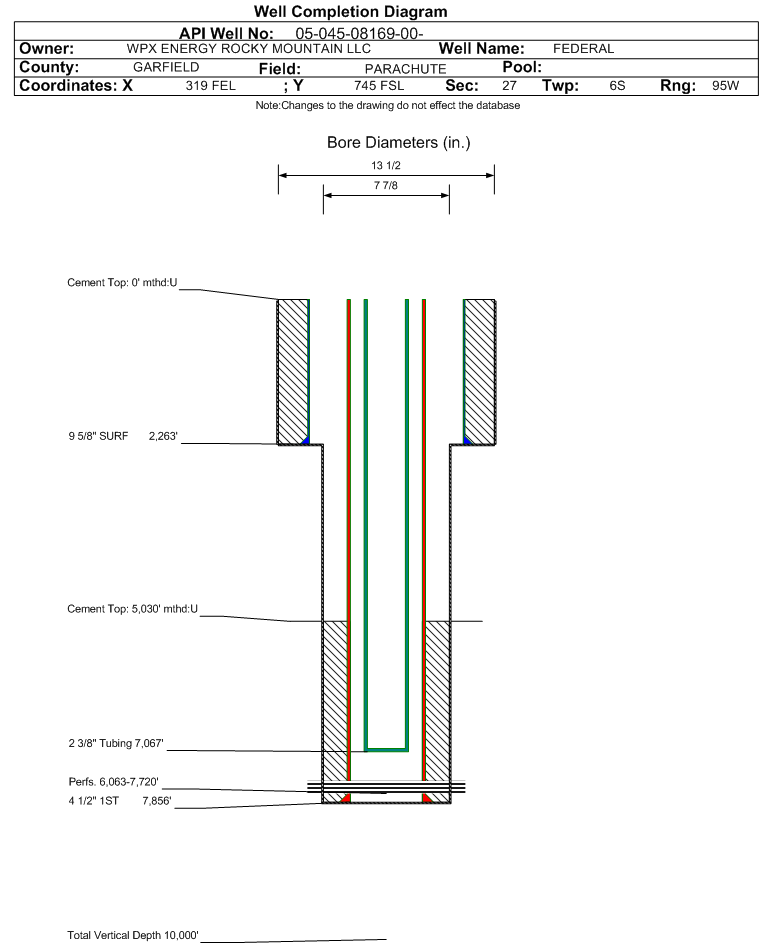

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2263 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 880, Top: 0 ft., Bottom: 2262 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7856 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1085, Top: 5030 ft., Bottom: 7856 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4310 ft.NN
CAMEO COAL7051 ft.NN
ROLLINS7787 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/1/2013                  Interval Top: 6063 ft.    Interval Bottom: 7720 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/13/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7067 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/29/2002Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1296
CASING_PRESS 1624
TUBING_PRESS 1491
Perforation Data:
Interval Top:6063 ft.# Of Holes:71
Interval Bottom:7720 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)24
Total Gas Produced (MCF)12507
GOR521125
GOR DeterminationMCFE
Average BOE per Day5.975
Average MCFE per Day34.668

 Federal Financial Assurance  i Y

 Tribal Well  i No
