Wellbore #00 Wellbore Classification: GW Status: PR - 11/1/2018 Measured TD: 8201 ft. Vertical TD: 8171 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/1/2018 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20031252 | Expiration Date: | 7/17/2004 | | Proposed Top PZ Location: | Sec:27 Twp: 6S 95W | Footage: 2212 FNL 339 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 95W | Footage: 2180 FNL 300 FEL | | Proposed Depth/Form: | 8270 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: N/2 | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: 18 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

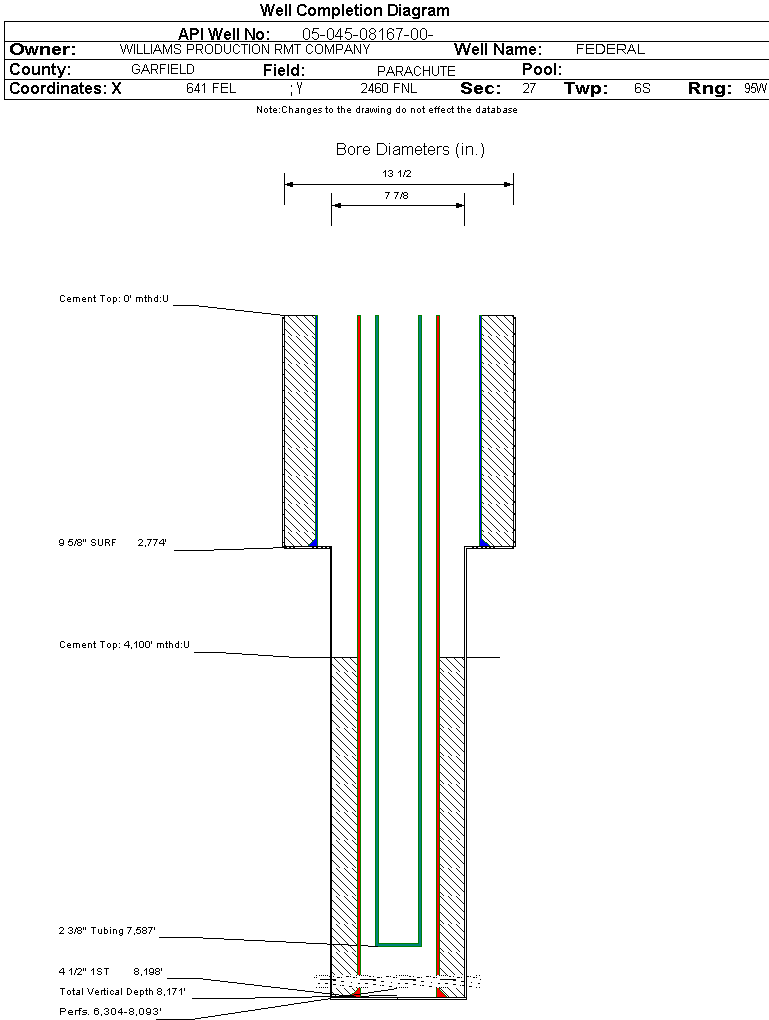

| Wellbore Completed | | Completion Date: | 10/22/2003 | | Spud Date: | 9/22/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 8201 ft. | Measured PB depth: | 8149 ft. | | True Vertical TD: | 8171 ft. | True Vertical PB depth: | 8122 ft. | | Top PZ Location: | Sec: Twp: | Footage: FL FL | | Bottom Hole Location: | Sec: Twp: | Footage: FL FL | | Log Types: | DIDD SPACED NEU. W/GR & CBL W/GR & CCL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2774 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 990, Top: 0 ft., Bottom: 2798 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8198 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 920, Top: 4100 ft., Bottom: 8198 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2577 ft. | | N | N | | FORT SCOTT | 2871 ft. | | N | N | | MESAVERDE | 4818 ft. | | N | N | | CAMEO COAL | 7567 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 11/1/2018 Interval Top: 6304 ft. Interval Bottom: 8093 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/22/2003 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7587 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/18/2003 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| CALC_MCF_GAS | 1382 | | CASING_PRESS | 1873 | | MCF_GAS | 1382 | | TUBING_PRESS | 1729 |
| | Perforation Data: | | Interval Top: | 6304 ft. | # Of Holes: | 75 | | Interval Bottom: | 8093 ft. | Hole Size: | 0.43 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 30 |
| Total Gas Produced (MCF) | 11503 |
| GOR | 383433 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.520 |
| Average MCFE per Day | 32.020 |
| Federal Financial Assurance | i | Y |
|
|
