COGIS - WELL SCOUT CARD

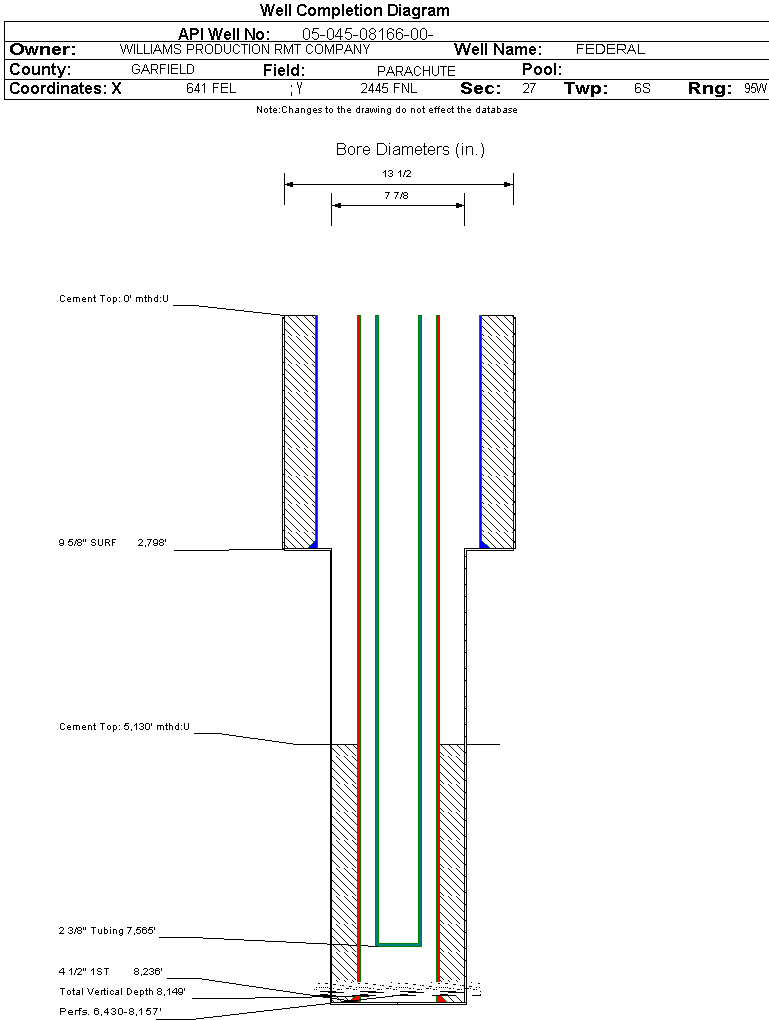

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08166		Well Classification: GW Status: PR - 11/1/2015
Well Name/No:FEDERAL #PA 32-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62161
Facility Status:PRStatus Date11/1/2015
FacilityID:263977LocationID:335233
County:GARFIELD #045Location:SENE 27 6S95W 6
Field:PARACHUTE - #67350Elevation:5856 ft.
Basin:PICEANCE BASIN
Planned Location:2445FNL  641 FELLat/Long: 39.495709 / -107.977713Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.495873 / -107.977748Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/1/2015             Measured TD: 8239 ft.    Vertical TD: 8149 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/1/2015
Wellbore PermitDIRECTIONAL
Permit #:20031253 Expiration Date:7/17/2004
Proposed Top PZ Location:Sec:27 Twp: 6S 95W Footage: 1852 FNL  1358 FEL
Bottom Hole Location:Sec:27 Twp: 6S 95W Footage: 1820 FNL  1397 FEL
Proposed Depth/Form:8250 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: N/2
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:10/18/2003
Spud Date:9/1/2003Spud Date Is:ACTUAL
Measured TD:8239 ft.Measured PB depth:8184 ft.
True Vertical TD:8149 ft.True Vertical PB depth:8114 ft.
Top PZ Location:Sec: Twp: Footage: 1852 FNL  1358 FEL
Bottom Hole Location:Sec: Twp: Footage: 1820 FNL  1397 FEL
Log Types:C B L
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2798 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 990, Top: , Bottom: 2798 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8236 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 864, Top: 5130 ft., Bottom: 8236 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH2541 ft.NN
FORT UNION2891 ft.NN
MESAVERDE4906 ft.NN
CAMEO COAL7651 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/1/2015                 Interval Top: 6430 ft.    Interval Bottom: 8157 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/18/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7565 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/18/2003Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:
Test TypeMeasure
CALC_MCF_GAS 1088
CASING_PRESS 1479
MCF_GAS 1088
TUBING_PRESS 1327
Perforation Data:
Interval Top:6430 ft.# Of Holes:85
Interval Bottom:8157 ft.Hole Size:0.43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)30
Total Gas Produced (MCF)10738
GOR357933
GOR DeterminationMCFE
Average BOE per Day5.151
Average MCFE per Day29.892

 Federal Financial Assurance  i Y

 Tribal Well  i No
