COGIS - WELL SCOUT CARD

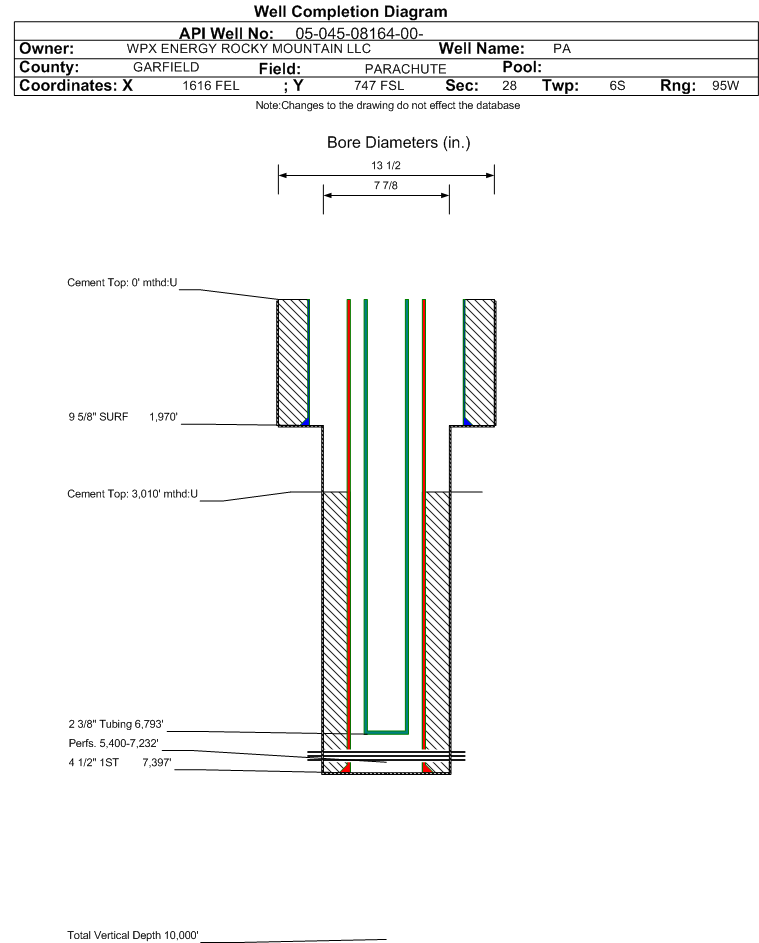

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08164		Well Classification: GW Status: PR - 10/1/2024
Well Name/No:PA #34-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62161
Facility Status:PRStatus Date10/1/2024
FacilityID:263953LocationID:335343
County:GARFIELD #045Location:SWSE 28 6S95W 6
Field:PARACHUTE - #67350Elevation:5415 ft.
Basin:PICEANCE BASIN
Planned Location:747FSL  1616 FELLat/Long: 39.490299 / -107.999563Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.490382 / -107.999533Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2024             Measured TD: 7408 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2024
Wellbore Permit
Permit #:20021109 Expiration Date:6/9/2003
Proposed Depth/Form:7430 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-19 , Unit Acreage: 320, Drill Unit: E/2
Wellbore Completed
Completion Date:9/12/2002
Spud Date:7/16/2002Spud Date Is:ACTUAL
Measured TD:7408 ft.Measured PB depth:7310 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL-GR-SP-NEUT DENS,CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1970 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 780, Top: , Bottom: 1970 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7397 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 920, Top: 3010 ft., Bottom: 7397 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G1763 ft.NN
FORT UNION2125 ft.NN
MESAVERDE3984 ft.NN
CAMEO COAL6585 ft.NN
ROLLINS7303 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/1/2024                 Interval Top: 5400 ft.    Interval Bottom: 7232 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/12/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6793 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/22/2002Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 2310
CASING_PRESS 2426
MCF_GAS 2310
TUBING_PRESS 2325
Perforation Data:
Interval Top:5400 ft.# Of Holes:79
Interval Bottom:7232 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)12203
GOR813533
GOR DeterminationMCFE
Average BOE per Day5.804
Average MCFE per Day33.687

 Federal Financial Assurance  i

 Tribal Well  i No
