COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08161		Well Classification: GW Status: PR - 12/13/2002
Well Name/No:FEDERAL #RWF 323-18
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62160
Facility Status:PRStatus Date12/13/2002
FacilityID:263949LocationID:335604
County:GARFIELD #045Location:SENW 18 6S94W 6
Field:RULISON - #75400Elevation:5985 ft.
Basin:PICEANCE BASIN
Planned Location:2442FNL  1728 FWLLat/Long: 39.525329 / -107.932131Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.525413 / -107.932147Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/13/2002             Measured TD: 8801 ft.    Vertical TD: 8676 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/13/2002
Wellbore Permit
Permit #:20021113 Expiration Date:6/9/2003
Proposed Top PZ Location:Sec:18 Twp: 6S 94W Footage: 1707 FSL  1533 FWL
Bottom Hole Location:Sec:18 Twp: 6S 94W Footage: 1663 FSL  1527 FWL
Proposed Depth/Form:8695 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:11/18/2002
Spud Date:9/5/2002Spud Date Is:ACTUAL
Measured TD:8801 ft.Measured PB depth:8770 ft.
True Vertical TD:8676 ft.True Vertical PB depth:8645 ft.
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:THERMAL MULTIGATE DECAY LITHOLOGY & C B L

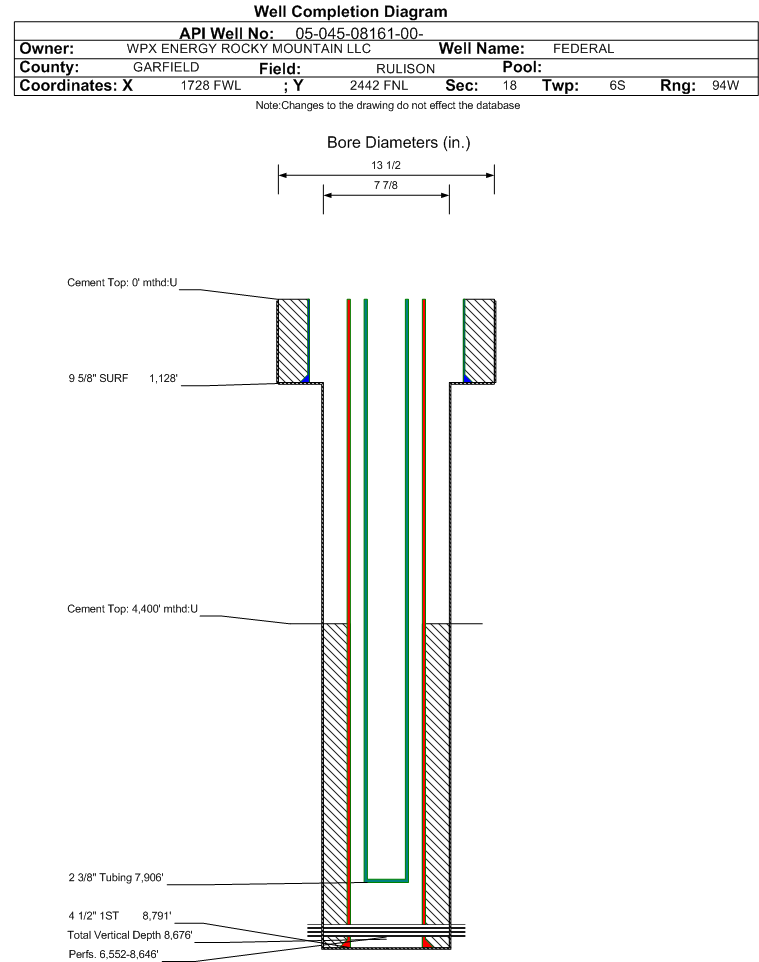

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1128 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: , Bottom: 1128 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8791 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 950, Top: 4400 ft., Bottom: 8791 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2749 ft.NN
MESAVERDE5166 ft.NN
CAMEO7789 ft.NN
ROLLINS8718 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/13/2002                Interval Top: 6552 ft.    Interval Bottom: 8646 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.172 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/18/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7906 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/22/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1313
CASING_PRESS 2087
MCF_GAS 1313
TUBING_PRESS 1992
Perforation Data:
Interval Top:6552 ft.# Of Holes:100
Interval Bottom:8646 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)35
Total Gas Produced (MCF)16434
GOR469542
GOR DeterminationMCFE
Average BOE per Day7.860
Average MCFE per Day45.593

 Federal Financial Assurance  i Y

 Tribal Well  i No
